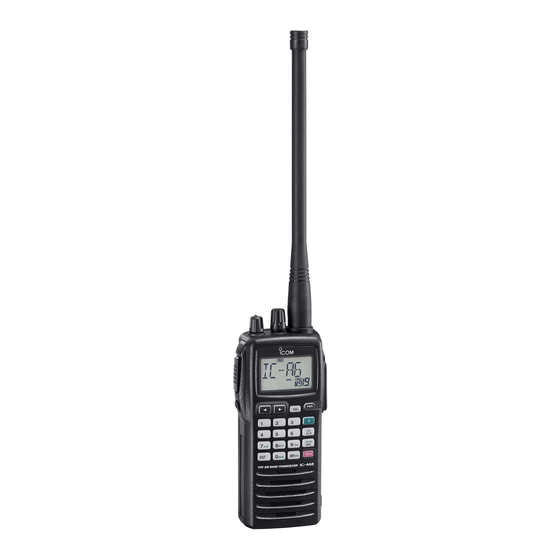

Icom IC-A24 Operation Manual

VOR NAVIGATION
(for A24 only)
When entering the NAV band, 108.000–117.975 MHz, the
A24 automatically selects the DVOR mode
• FLYING TO A VOR STATION
Select a VOR station on your aeronautical chart and use the
keypad or rotate the big dial to set the frequency of the station
Push O, then push [TO] or [FROM] depending if you are flying
to or from a station
– The [ ]flag indicators will appear on screen
• TO SELECT CDI MODE
Push O, then push [CDI]
– Set the desired course to the VOR station by rotating the
big dial or using the keypad
– The number of degrees "TO" or "FROM" a beacon is
displayed at the bottom of the screen
– " 4 " and " " are course deviation arrows that appear at the
3
bottom of the display
– Each arrow indicates a two-degree course deviation
– "OF˙" appears on the screen when the desired VOR signal
cannot be received
• TO CORRECT YOUR COURSE
" 4 " and " " indicate your aircraft is off course to the right
3
or left, respectively
Correct your course until " " and "
4 3
• EXIT CDI MODE
Push O, then push [DVOR]
FREQUENCIES/CHANNELS
©2005 Icom America Inc. The Icom logo is a registered trademark of Icom Inc.
ia24/a6
" disappear
EMERGENCY
Push and hold the red button until [121.5] appears on
the screen to select the emergency frequency;
"121.5" MHz will appear on the screen.
NOTES
GENERAL
If the button marking on the keypad is in black, push to
activate. For secondary functions, first push
desired green-marked button.
KEYPAD
• POWER, ON or OFF
Push and hold [PWR] for 4 seconds
• SET SQUELCH
Push [SQL], then rotate the big dial on top
• WEATHER (WX-ALERT), ON or OFF
Push O, then push [SQL]
OPERATION GUIDE
O and then the
