1

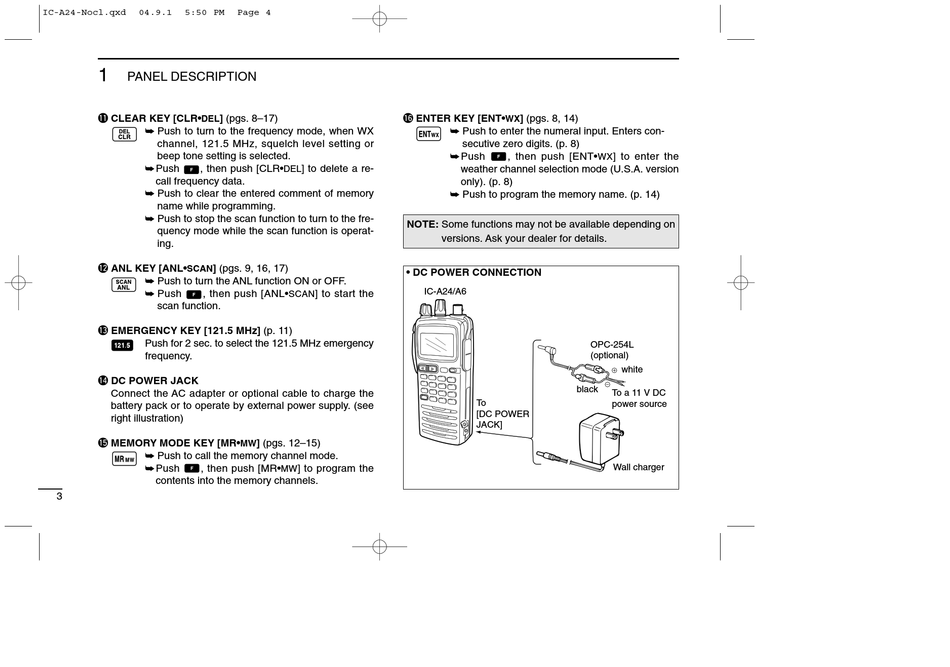

PANEL DESCRIPTION
!1 CLEAR KEY [CLR•
] (pgs. 8–17)
DEL
➥ Push to turn to the frequency mode, when WX
channel, 121.5 MHz, squelch level setting or
beep tone setting is selected.
➥ Push
, then push [CLR•
call frequency data.
➥ Push to clear the entered comment of memory
name while programming.
➥ Push to stop the scan function to turn to the fre-
quency mode while the scan function is operat-
ing.
!2 ANL KEY [ANL•
] (pgs. 9, 16, 17)
SCAN
➥ Push to turn the ANL function ON or OFF.
➥ Push
, then push [ANL•
scan function.
!3 EMERGENCY KEY [121.5 MHz] (p. 11)
Push for 2 sec. to select the 121.5 MHz emergency
frequency.
!4 DC POWER JACK
Connect the AC adapter or optional cable to charge the
battery pack or to operate by external power supply. (see
right illustration)
!5 MEMORY MODE KEY [MR•
➥ Push to call the memory channel mode.
➥ Push
, then push [MR•
contents into the memory channels.
3
Page 4
!6 ENTER KEY [ENT•
] to delete a re-
DEL
NOTE: Some functions may not be available depending on
• DC POWER CONNECTION
] to start the
SCAN
] (pgs. 12–15)
MW
] to program the
MW
] (pgs. 8, 14)
WX
➥ Push to enter the numeral input. Enters con-
secutive zero digits. (p. 8)
➥ Push
, then push [ENT•
WX
weather channel selection mode (U.S.A. version
only). (p. 8)
➥ Push to program the memory name. (p. 14)
versions. Ask your dealer for details.
IC-A24/A6
OPC-254L
(optional)
black
To
[DC POWER
JACK]
] to enter the
white
To a 11 V DC
power source
Wall charger
