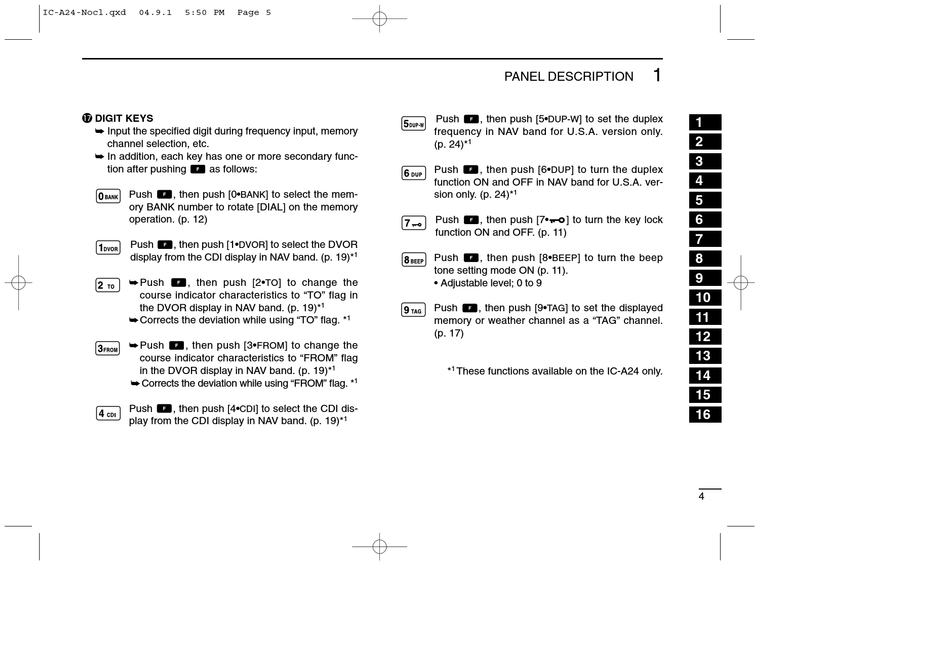

!7 DIGIT KEYS
➥ Input the specified digit during frequency input, memory
channel selection, etc.
➥ In addition, each key has one or more secondary func-
tion after pushing as follows:
Push , then push [0•
ory BANK number to rotate [DIAL] on the memory
operation. (p. 12)
Push , then push [1•
display from the CDI display in NAV band. (p. 19)*
➥ Push
, then push [2•
course indicator characteristics to "TO" flag in
the DVOR display in NAV band. (p. 19)*
➥ Corrects the deviation while using "TO" flag. *
➥ Push
, then push [3•
course indicator characteristics to "FROM" flag
in the DVOR display in NAV band. (p. 19)*
➥ Corrects the deviation while using "FROM" flag. *
Push , then push [4•
play from the CDI display in NAV band. (p. 19)*
Page 5
] to select the mem-
BANK
] to select the DVOR
DVOR
1
] to change the
TO
1
1
] to change the
FROM
1
1
] to select the CDI dis-
CDI
1
PANEL DESCRIPTION
Push , then push [5• ] to set the duplex
DUP-W
frequency in NAV band for U.S.A. version only.
(p. 24)* 1
Push , then push [6• ] to turn the duplex
DUP
function ON and OFF in NAV band for U.S.A. ver-
1
sion only. (p. 24)*
Push , then push [7• ] to turn the key lock
function ON and OFF. (p. 11)
Push , then push [8• ] to turn the beep
BEEP
tone setting mode ON (p. 11).
• Adjustable level; 0 to 9
Push , then push [9• ] to set the displayed
TAG
memory or weather channel as a "TAG" channel.
(p. 17)
1
* These functions available on the IC-A24 only.
