Brief procedures

Calibration

2–8
5. Click the Start button to execute the diagnostics.
The internal diagnostics perform an exhaustive verification of proper
instrument function. This verification may take several minutes. When the
verification is completed, the resulting status will appear in the dialog box.
6. Verify that Pass appears as Status in the dialog box when the diagnostics
complete.
7. Click the Close button.
Equipment
None
1. From the File and Utilities tab, select System.
2. Click the Diagnostics & Calibration button and then select Calibration.

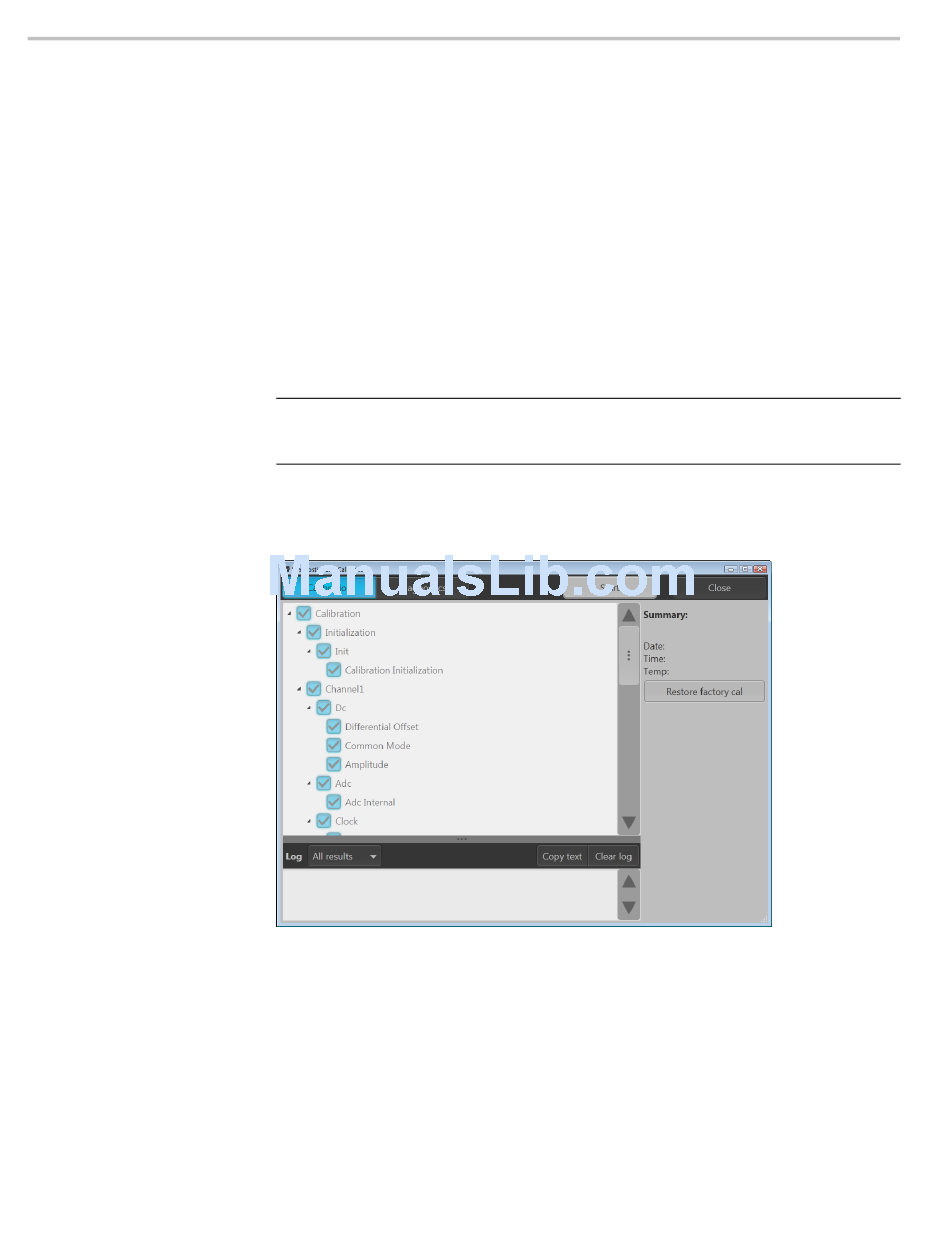

Figure 2-3: Calibration dialog box

3. Click the Start button to start the routine.
4. Verify that Pass appears in the Summary column for all items when the
calibration completes.
5. Click the Close button.
AWG70000A Series and AWGSYNC01 Technical Reference
Prerequisites
Power on the instrument and allow a
20 minute warm-up before doing this
procedure.
