Brief procedures

Diagnostics

AWG70000A Series and AWGSYNC01 Technical Reference
There are three procedures in this section that provide a quick way to confirm
basic functionality and proper adjustment:
Diagnostics
Calibration
Functional Test
The following steps run the internal routines that confirm basic functionality
and proper adjustment.
Equipment
None
1. Disconnect all the cables from the output channels.
2. From the File and Utilities tab, select System.
3. Click the Diagnostics & Calibration button and then select Diagnostics.

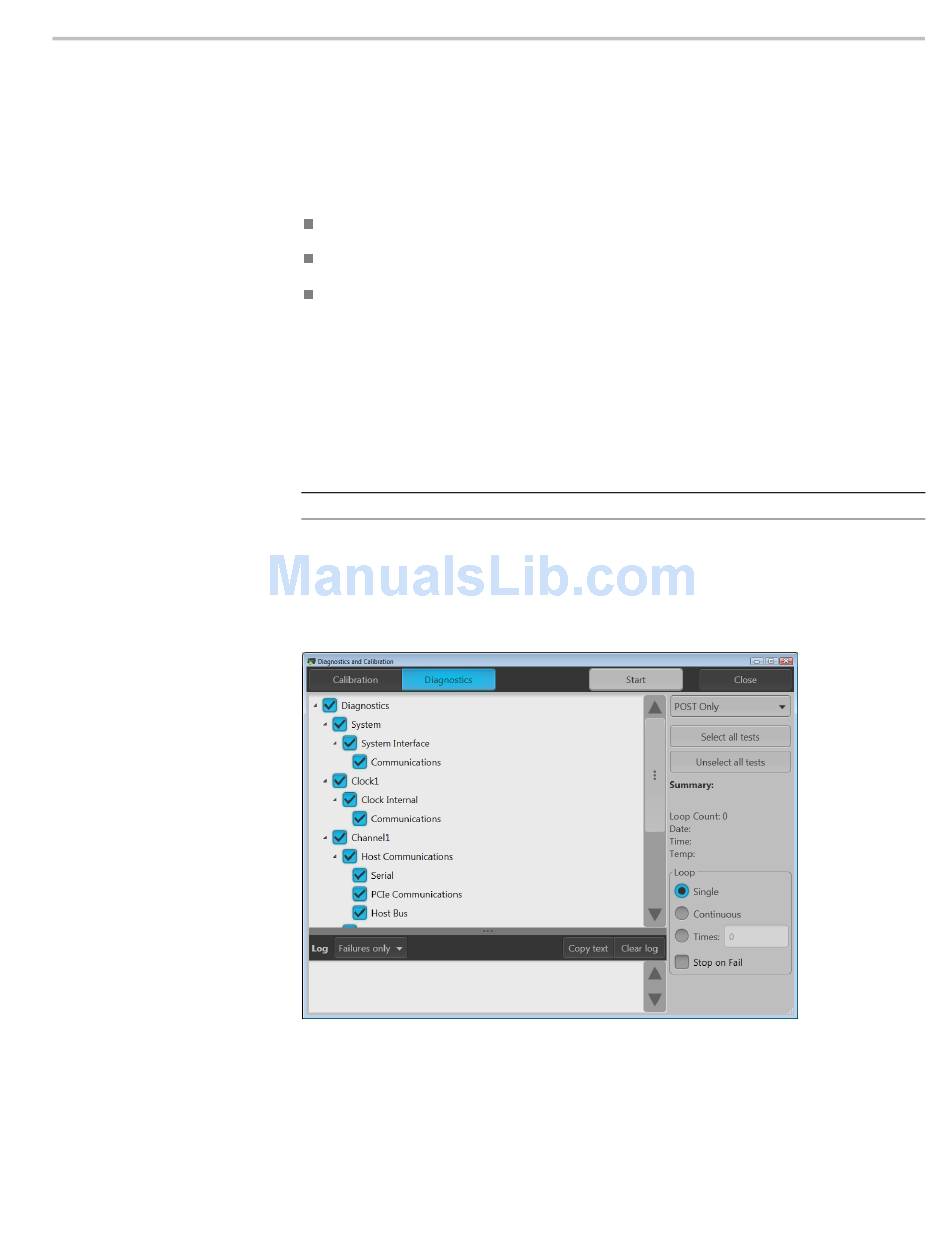

Figure 2-2: Diagnostics dialog box

4. In the Diagnostics dialog box, confirm that all the check boxes are selected. If
they are not all selected, click the Select all tests button.
Prerequisites
None
Brief procedures
2–7
