Tektronix AWG70001A Technical Reference page 55

AWG70000A Series and AWGSYNC01 Technical Reference
8. Set the oscilloscope as follows:
a. Vertical scale: 200 mV/div (CH 1), 1 V/div (CH 2 and CH 3)
b. Horizontal scale: 20 ns/div
c. Input coupling: DC
d. Input impedance: 50 Ω
e. CH 1 position: +2 div (if necessary)
f. CH 2 position: –1 div (if necessary)
g. CH 3 position: –3 div (if necessary)
h. Trigger source: CH1
i. Trigger level: 0 mV
j. Trigger slope: Positive
k. Trigger mode: Auto
9. Press the Home button on the instrument, or click the Home tab on the display.
10. Click the Reset to default setup button in the toolbar.
11. On the instrument, load the PV_Square.wfmx waveform as an output
waveform. Follow the steps below:
a. In the Waveform List window, click Open Waveform and navigate to
C:\Program Files\Tektronix\AWG70000\Samples\PV.
b. Select Open File.
c. In the Waveform List window, select (drag and drop) the
PV_Square.wfmx waveform on to the work space.
12. In the Setup tab, under Resolution, check 8+2 Mkrs.

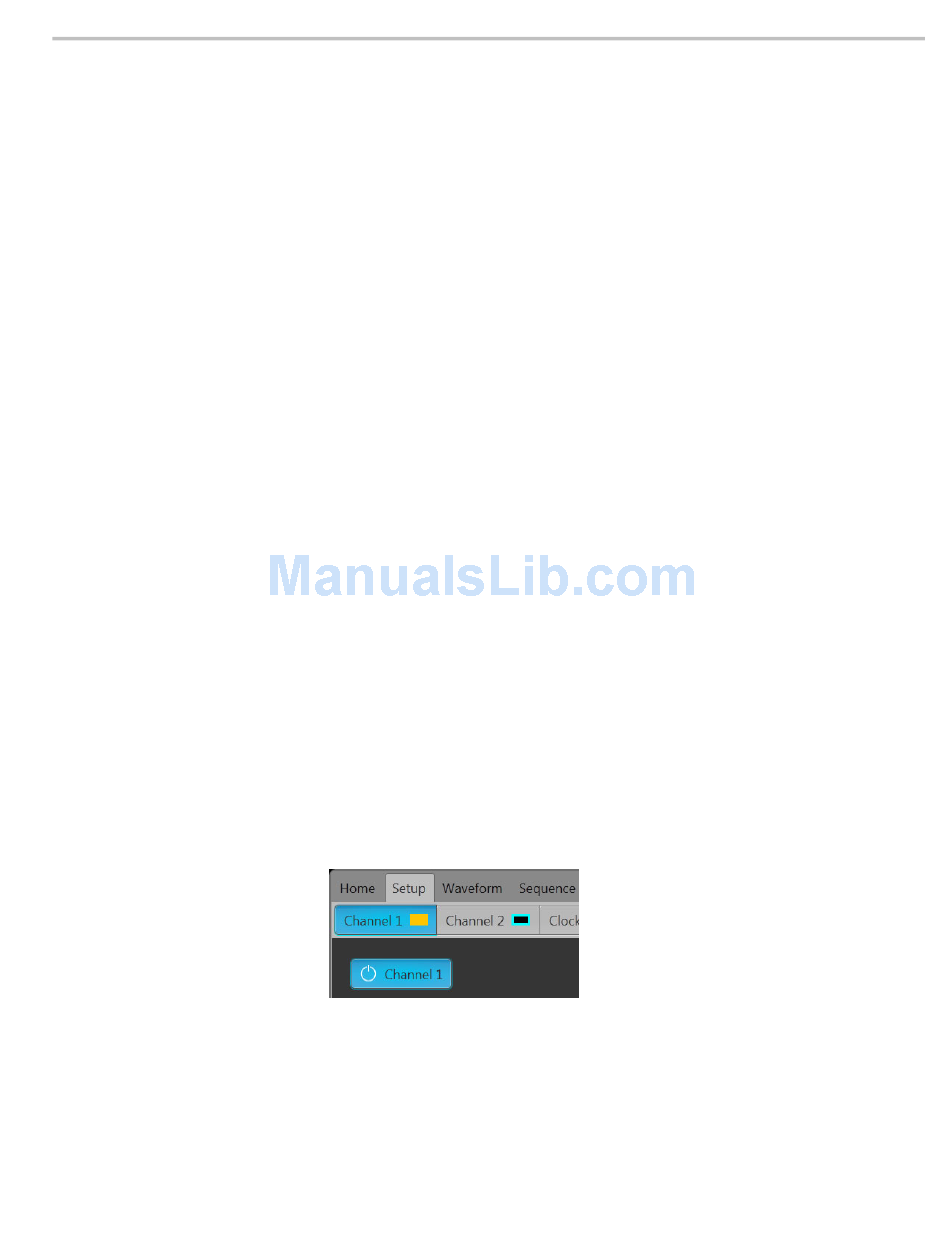

13. Click the Enable outputs button.
14. Click the Play button on-screen or on the instrument.
15. Press the All Outputs button on the instrument to output the waveform.
16. Check that the Channel 1, Marker 1, and Marker 2 waveforms are properly
displayed on the oscilloscope screen. (See Figure 2-5.)
Brief procedures
2–11
