Performance veriﬁcation procedures

Typical output control

screen

2–6

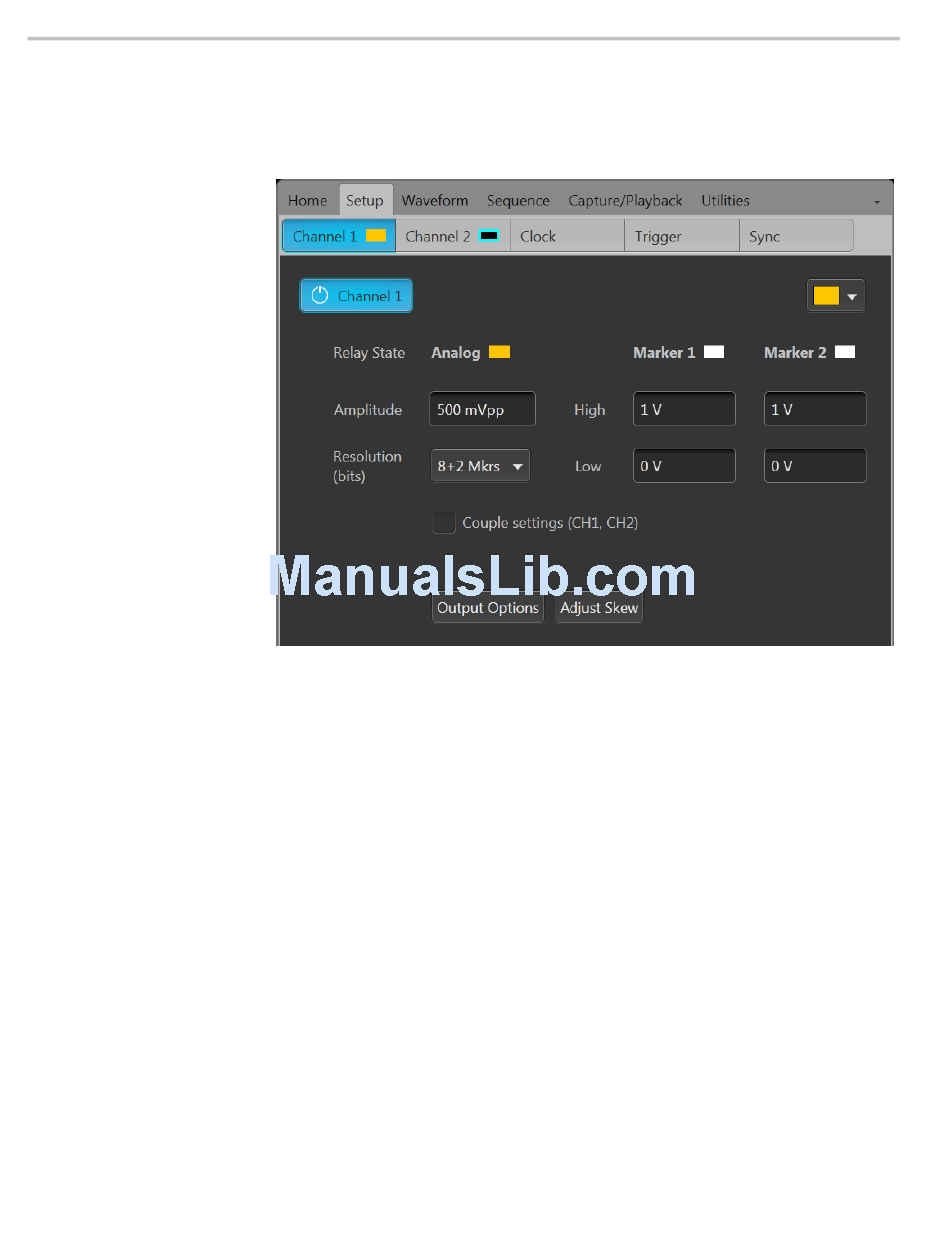

The screen shot below shows the controls that display when you are setting

up a typical output waveform. In this example, the Channel 1 Analog output

parameters are displayed.

AWG70000A Series and AWGSYNC01 Technical Reference
