Reference Manual
00809-0100-4022, Rev GA
September 2016
Rosemount

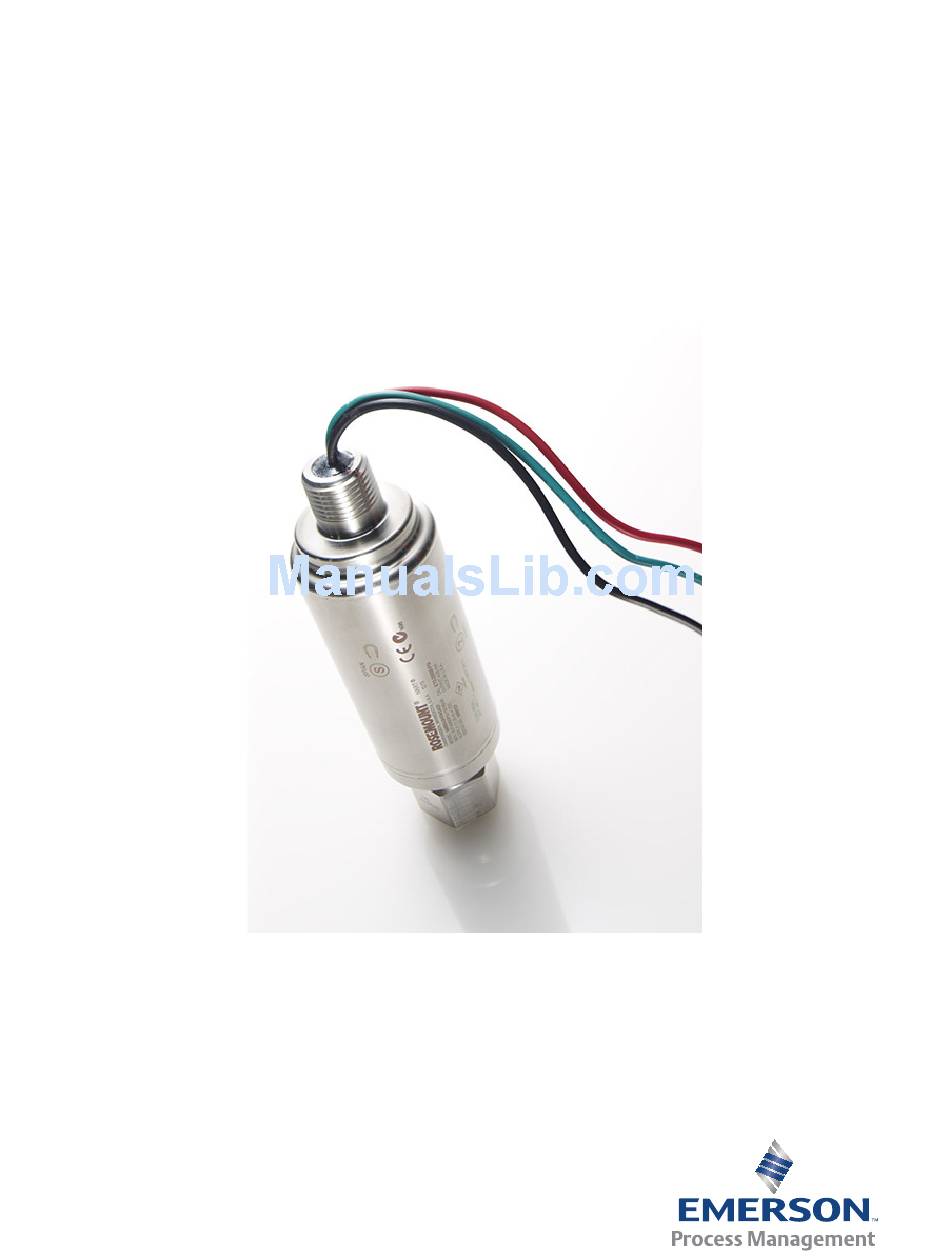

4600 Oil & Gas Panel
™
Transmitter
sales@aotewell.com
+86-755-8660-6182

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 4600 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 4600

Summary of Contents for Emerson Rosemount 4600

  • Page 1 Aotewell Ltd www.aotewell.com Industry Automation Reference Manual 00809-0100-4022, Rev GA September 2016 Rosemount 4600 Oil & Gas Panel ™ Transmitter sales@aotewell.com +86-755-8660-6182 HongKong|UK|China...
  • Page 2 Aotewell Ltd www.aotewell.com Industry Automation sales@aotewell.com +86-755-8660-6182 HongKong|UK|China...

  • Page 3: Table Of Contents

    Aotewell Ltd www.aotewell.com Industry Automation Reference Manual Table of Contents 00809-0100-4022, Rev GA September 2016 Contents 1Section 1: Introduction Using this manual............1 Product recycling/disposal .
  • Page 4 Aotewell Ltd www.aotewell.com Industry Automation Reference Manual Table of Contents 00809-0100-4022, Rev GA September 2016 AAppendix A: Specification and Reference Data Ordering Information ..........51 Specifications .
  • Page 5 North American Response Center Equipment service needs. 1-800-654-7768 (24 hours—includes Canada) Outside of these areas, contact your local Emerson Process Management representative. The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings.
