Summary of Contents for Emerson Micro Motion 4700

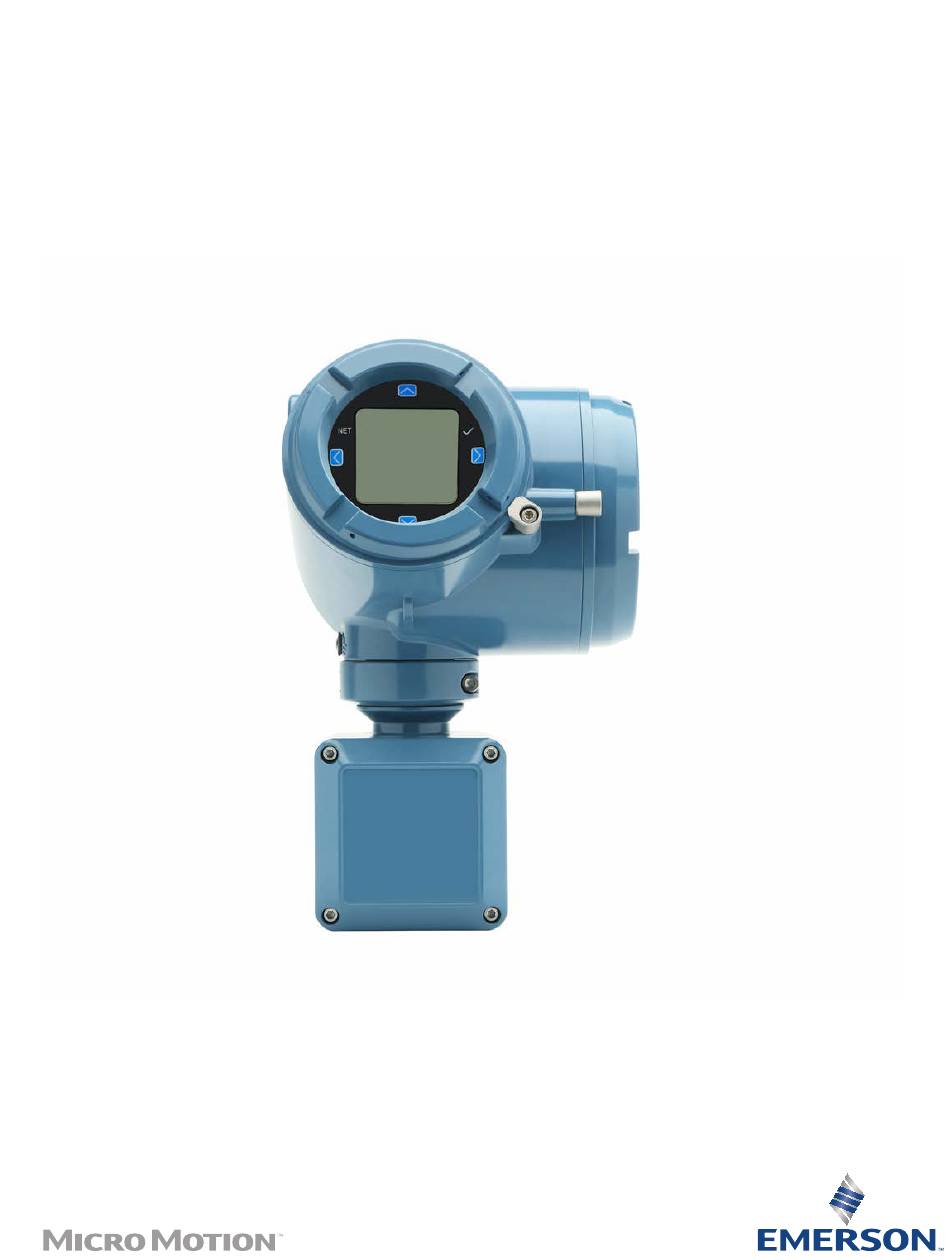

  • Page 1 Installation Manual 00825-0100-5710, Rev AA October 2023 Micro Motion ™ 4700 Configurable Inputs and Outputs Transmitter...
  • Page 2 Micro Motion employees. If you fail to follow Micro Motion procedures, then Micro Motion will not accept your returned equipment. Return procedures and forms are available on our web support site at Emerson.com, or by calling the Micro Motion Customer Service department.
  • Page 3: Table Of Contents

    Installation Manual Contents 00825-0100-5710 October 2023 Contents Chapter 1  Planning............................. 5 1.1 About this document........................5 1.2 Related documentation......................5 1.3 Meter components........................5 1.4 Installation types......................... 5 1.5 Installation checklist........................7 1.6 Power requirements........................9 Chapter 2  Mounting and sensor wiring....................11 2.1 Mounting and sensor wiring for integral-mount transmitters........... 11 2.2 Mount the transmitter to a wall or instrument pole.............11 2.3 Wire a remote-mount transmitter to the sensor..............
  • Page 4 Contents Installation Manual October 2023 00825-0100-5710 Micro Motion 4700 CIO Transmitter...
  • Page 5: Chapter 1 Planning

    Micro Motion 4700 Configurable Inputs and Outputs Transmitter; Product Data Sheet • Micro Motion ProLink III with ProcessViz Software User Manual • Coriolis Flow Meter with Micro Motion 4700 Configurable Inputs and Outputs Transmitter: Safety Manual for Safety Instrumented Systems (SIS) • Sensor installation manual, shipped with the sensor •...
  • Page 6 Remote mount 9-wire Figure 1-2: 4700 transmitter painted aluminum -- Integral mount A. Conduit openings B. Clamping ring C. Sensor case D. Transmitter housing cover (hidden from view) The transmitter is installed directly on the sensor. Micro Motion 4700 CIO Transmitter...
  • Page 7: Installation Checklist

    Installation Manual Planning 00825-0100-5710 October 2023 Figure 1-3: 4700 transmitter painted aluminum -- Remote mount A. Transmitter housing cover B. Clamping ring C. Junction box The transmitter is installed remotely from the sensor. Both the 4-wire and the 9-wire connection between the sensor and transmitter must be field wired. For both integral mount and remote mount: •...
  • Page 8 To do this: — Ensure the integrity of all gaskets and O-rings — Install drip legs on conduit or cable — Seal unused conduit openings — Ensure that all covers are fully tightened Micro Motion 4700 CIO Transmitter...
  • Page 9: Power Requirements

    Installation Manual Planning 00825-0100-5710 October 2023 □ Mount the meter in a location and orientation that satisfies the following conditions: — Allows sufficient clearance to open the transmitter housing cover. Install with 8–10 inches (200–250 mm) clearance at the wiring access points. —...
  • Page 10 1,000 ft (305 m) mount User-supplied 4-wire VDC 22 AWG (0.326 mm²) 300 ft (91 m) VDC 20 AWG (0.518 mm²) 500 ft (152 m) VDC 18 AWG (0.823 mm²) 1,000 ft (305 m) RS-485 22 AWG (0.326 mm²) or 1,000 ft (305 m) larger For Smart Meter Verification, the limit is 60 ft (18 m). Micro Motion 4700 CIO Transmitter...
  • Page 11: Mounting And Sensor Wiring

    Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 2  Mounting and sensor wiring 2.1  Mounting and sensor wiring for integral-mount transmitters There are no separate mounting requirements for integral transmitters, and there is no need to connect wiring between the transmitter and the sensor. 2.2 ...
  • Page 12 Figure 2-1: Mounting bracket to a painted aluminum transmitter 2. Using a wall-mount or pole-mount: • For wall-mount installations, secure the mounting bracket to the prepared surface. • For pole-mount installations, attach the U-bolt mounting piece to the instrument pole. Micro Motion 4700 CIO Transmitter...
  • Page 13 Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 Figure 2-2: Pole-mounting bracket attachment for a painted aluminum transmitter 3. Place and attach the transmitter-mounting bracket to the mounting bracket secured to the wall or instrument pole. Installation Manual...
  • Page 14: Wire A Remote-Mount Transmitter To The Sensor

    • Connect the cable to the sensor-mounted core processor or junction box as described in the sensor documentation. You can access all product documentation on the documentation DVD shipped with the product or at Emerson.com. Micro Motion 4700 CIO Transmitter...
  • Page 15 Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 Procedure 1. Remove the transmitter-to-sensor wiring compartment cover to reveal the terminal connections. Figure 2-4: Removal of the transmitter-to-sensor wiring compartment cover 2. Feed the sensor wiring cable into the transmitter wiring compartment. Figure 2-5: Sensor wiring feed through 3.
  • Page 16 Connect the four drain wires in the nine-wire cable to the ground screw located inside the junction box. 4. Replace the transmitter-to-sensor wiring compartment cover and tighten the screws to 14 in lbf (1.58 N m) to 15 in lbf (1.69 N m). Micro Motion 4700 CIO Transmitter...
  • Page 17: Ground The Meter Components

    Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 2.4  Ground the meter components In 9-wire remote installations, the transmitter and sensor are grounded separately. Prerequisites NOTICE Improper grounding could cause inaccurate measurements or meter failure.  WARNING Failure to comply with requirements for intrinsic safety in a hazardous area could result in an explosion causing death or serious injury.
  • Page 18: Rotating The Transmitter On The Sensor (Optional)

    32 in lbf (3.62 N m).  CAUTION Ensure that the connection between the transmitter and the sensor is moisture- proof. Inspect and grease all gaskets and O-rings. Moisture in the electronics can cause measurement error or flow meter failure. Micro Motion 4700 CIO Transmitter...
  • Page 19: Rotating The Display Orientation

    Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 2.6  Rotating the display orientation The user interface orientation for the transmitter can rotate 360° in 90° increments by software selection. Using the display, select Menu → Configuration → Display Settings → Rotation. 2.7  Rotate the sensor wiring junction box on a remote-mount transmitter (optional) In remote-mount installations, you can rotate the sensor wiring junction box on the transmitter up to plus or minus 180 degrees.
  • Page 20 You can rotate the junction box plus or minus 180º to any position. Figure 2-10: Rotation of the sensor wiring junction box 3. Gently set the junction box into its new position, confirming that the position is locked. Micro Motion 4700 CIO Transmitter...
  • Page 21 Installation Manual Mounting and sensor wiring 00825-0100-5710 October 2023 4. Replace the clamp in its original position and tighten the cap screw. Tighten the screw to 28 in lbf (3.16 N m)– 32 in lbf (3.62 N m). Figure 2-11: Re-attachment of the clamp Installation Manual...
  • Page 22 Mounting and sensor wiring Installation Manual October 2023 00825-0100-5710 Micro Motion 4700 CIO Transmitter...
  • Page 23: Wiring The Channels

    Installation Manual Wiring the channels 00825-0100-5710 October 2023 3  Wiring the channels 3.1  Available channels Signal Channel A Channel B Channel C Wiring terminals mA Inputs mA Output 1 (HART) mA Output 2 RS-485 and Outputs Frequency Frequency Output 2 Frequency Output 1 Outputs Discrete Discrete Output 2...
  • Page 24: Wire The Ma Output

    Figure 3-3: Channel and wiring configurations label 3.3  Wire the mA output Wire the mA output in explosion-proof, nonincendive, or nonhazardous installations. Important Meter installation and wiring should be performed only by suitably-trained personnel. Micro Motion 4700 CIO Transmitter...
  • Page 25 Installation Manual Wiring the channels 00825-0100-5710 October 2023 3.3.1  Wire the mA output (internally powered) Procedure Wire to the appropriate output terminal and pins. Figure 3-4: mA output wiring (internally powered) A. mA output B. Channel A or B C. 820 Ω maximum loop resistance D.
  • Page 26: Wire The Ma/Hart ® Output

    Meter installation and wiring should be performed only by suitably-trained personnel. 3.4.1  Wire the mA/HART output (internally powered) ® Procedure Wire to the appropriate output terminal and pins. Figure 3-7: mA/HART output wiring (internally powered) A. mA/HART output B. 250–600 Ω resistance C. HART device Micro Motion 4700 CIO Transmitter...
  • Page 27 Installation Manual Wiring the channels 00825-0100-5710 October 2023 3.4.2  Wire the mA/HART output (externally powered) ® Procedure Wire to the appropriate output terminal and pins. Figure 3-8: mA/HART output wiring (externally powered) A. mA/HART output B. 5–30 VDC (maximum) C. 250–600 Ω resistance (see Figure 3-9 for maximum loop resistance) D.
  • Page 28: Wire Ma Output 2/Discrete Output/Frequency Output/ Discrete Input

    Figure 3-10: mA/HART multidrop wiring A. 250–600 Ω resistance B. HART-compatible host or controller C. HART-compatible transmitter (internally powered) D. Micro Motion 4700 transmitter (internally powered) mA/HART connections E. SMART FAMILY transmitters ™ F. 24 VDC loop power supply required for external transmitter 3.5 ...
  • Page 29 Installation Manual Wiring the channels 00825-0100-5710 October 2023 3.5.1  Wire the frequency output (Channel A) Use this section to wire the frequency output in explosion-proof, nonincendive, or nonhazardous installations. Important Meter installation and wiring should be performed only by suitably-trained personnel. Wire the frequency output (internally powered) Use this procedure to wire the internally-powered frequency output for Channel A.
  • Page 30 Figure 3-12: Internally powered frequency output: output amplitude versus load resistance [24 VDC (Nom) open circuit] A. Output amplitude (V) where V= 22mA x Load Resistor in Linear Range B. Load resistor (Ω) C. Linear Range Micro Motion 4700 CIO Transmitter...
  • Page 31 Installation Manual Wiring the channels 00825-0100-5710 October 2023 Wire the frequency output (externally powered) Use this procedure to wire the externally-powered frequency output for Channel A. Procedure Wire to the appropriate output terminal and pins. Figure 3-13: Frequency output wiring (externally powered) A.
  • Page 32 Figure 3-15: Internally powered frequency output: output amplitude versus load resistance [24 VDC (Nom) open circuit] A. Output amplitude (V) where V= 22mA x Load Resistor in Linear Range B. Load resistor (Ω) C. Linear Range Micro Motion 4700 CIO Transmitter...
  • Page 33 Installation Manual Wiring the channels 00825-0100-5710 October 2023 Wire the frequency output (externally powered Channel B) Procedure Wire to the appropriate output terminal and pins. Figure 3-16: Frequency output wiring (externally powered) A. Frequency output B. 3–30 VDC (maximum) C. Rload: Maximum sinking curent = 500mA D.
  • Page 34 D. Counter Figure 3-18: Internally powered discrete output: output amplitude versus load resistance [24 VDC (Nom) open circuit] 1500 2250 3000 A. Output amplitude (V) B. Load resistor (Ω) Micro Motion 4700 CIO Transmitter...
  • Page 35 Installation Manual Wiring the channels 00825-0100-5710 October 2023 3.5.3  Wire the discrete output (externally powered) Channel A or Channel B Use this procedure to wire the externally-powered discrete output. Procedure Wire to the appropriate output terminal and pins. Figure 3-19: Discrete output wiring (externally powered) A.
  • Page 36: Wire The Rs-485 Output (Channel C)

    Use this section to wire the RS-485 output in explosion-proof, nonincendive, or nonhazardous installations. Procedure Wire to the appropriate output terminal and pins. Figure 3-22: RS-485 output wiring A. RS-485 output Note The transmitter does not provide any RS-485 termination resistance. Micro Motion 4700 CIO Transmitter...
  • Page 37: Powering Up The Transmitter

    Installation Manual Powering up the transmitter 00825-0100-5710 October 2023 4  Powering up the transmitter The transmitter must be powered up for all configuration and commissioning tasks, or for process measurement. Procedure 1. Ensure that all transmitter and sensor covers and seals are closed.  DANGER To prevent ignition of flammable or combustible atmospheres, ensure that all covers and seals are tightly closed.
  • Page 38 Powering up the transmitter Installation Manual October 2023 00825-0100-5710 relying on process measurements. During this warm-up period, you may observe minor measurement instability or inaccuracy. Micro Motion 4700 CIO Transmitter...
  • Page 39: Configuring The Transmitter With Guided Setup

    Installation Manual Configuring the transmitter with Guided Setup 00825-0100-5710 October 2023 5  Configuring the transmitter with Guided Setup At initial startup of the transmitter, click the right arrow for the Menu option to access Guided Setup. This tool guides you through basic configuration of the transmitter. The guided setup allows you to upload configuration files, set the transmitter display options, configure channels, and review sensor calibration data.
  • Page 40 Configuring the transmitter with Guided Setup Installation Manual October 2023 00825-0100-5710 Micro Motion 4700 CIO Transmitter...
  • Page 41: Using The Display Controls

    Installation Manual Using the display controls 00825-0100-5710 October 2023 6  Using the display controls The transmitter display interface includes a display (LCD panel) and four capacitive buttons – left, up, down, and right arrow keys – used to access the display menus and navigate the display screens.
  • Page 42: Configure The Display Backlight

    Figure 6-2: Example 2: Active arrow indicators on the transmitter display 6.1  Configure the display backlight By default, the backlight is set to ON. Procedure To configure the backlight, select Menu → Configuration → Display Settings → Backlight. Micro Motion 4700 CIO Transmitter...
  • Page 43: Communicating With The Transmitter

    Installation Manual Communicating with the transmitter 00825-0100-5710 October 2023 7  Communicating with the transmitter Use either the HART terminals connected to ProLink III or Trex unit to download or upload data from/to the transmitter, because the service port is for factory use only. Procedure 1.
  • Page 44 Communicating with the transmitter Installation Manual October 2023 00825-0100-5710 Micro Motion 4700 CIO Transmitter...
  • Page 45: Chapter 8 Wireless Certifications

    Installation Manual Wireless certifications 00825-0100-5710 October 2023 8  Wireless certifications 8.1  FCC notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference; this device must accept any interference received, including interference that may cause undesired operation.
  • Page 46 © 2023 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation Solutions family of companies. All other marks are property of their respective owners.
