Summary of Contents for Emerson Rosemount 4600

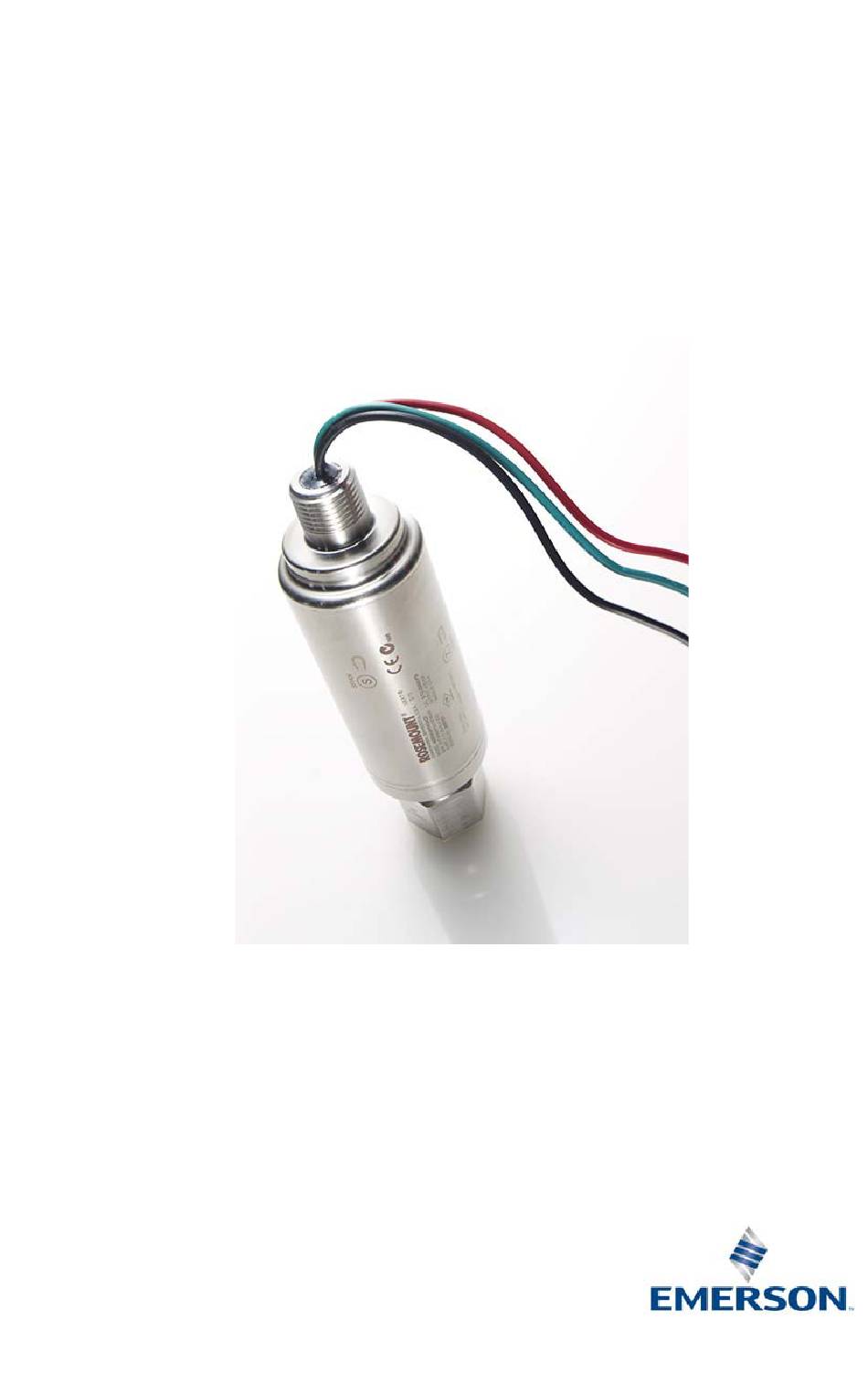

- Page 1 Quick Start Guide 00825-0100-4022, Rev HB February 2019 ™ Rosemount 4600 Oil & Gas Panel Pressure Transmitter...
-
Page 2: Table Of Contents
Quick Start Guide NOTICE This guide provides basic guidelines for the Rosemount 4600 Oil & Gas Panel Pressure Transmitter. It does not provide instructions for diagnostics, maintenance, service, troubleshooting, explosion-proof, flameproof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 4600 Reference Manual for more instruction. -
Page 3: Mount The Transmitter
2. Connect the black lead to the “-” terminal of the I/O card on the PLC. 3. Connect the green lead to panel ground. The figure below shows the wiring connections necessary to power a Rosemount 4600 and enable communications with a hand-held Field Communicator. Figure 1. Rosemount 4600 Field Wiring A. -
Page 4: Configure The Transmitter
February 2019 Quick Start Guide Power supply The dc power supply should provide power with less than two percent ripple. The total resistance load is the sum of the resistance of the signal leads and the load resistance of the controller, indicator, and related pieces. Note that the resistance of intrinsic safety barriers, if used, must be included. -
Page 5: Trim The Transmitter
1, 2, 3, 3, 1 Trim the transmitter Note ™ Transmitters are shipped from Emerson fully configured per request or by the factory default of full scale (span = upper range limit). Zero trim A zero trim is a single-point adjustment to compensate mounting position and sealed gauge pressure effects. -
Page 6: Safety Instrumented Systems (Sis)
Figure 3. Local Zero and Span Target Locations A. Magnetic span target B. Magnetic zero target Safety Instrumented Systems (SIS) The following section applies to Rosemount 4600 Transmitters used in SIS applications. Note Transmitter output is not safety-rated during the following: configuration changes, multidrop, loop test. -
Page 7: Operation And Maintenance
Emerson.com/Rosemount/Safety-Measurement in the event that an error is found in the safety functionality. Reference Table 1 for the Fast Keys to perform a Loop Test, Analog Output Trim, or Sensor Trim. See the Rosemount 4600 Reference Manual for additional information. -
Page 8: Specifications
Failure rate data The FMEDA report includes failure rates. This report is available at Emerson.com/Rosemount. Rosemount 4600 safety failure values Safety accuracy: 2.0 percent Safety response time- 1.5 seconds Product life 50 years – based on worst case component wear-out mechanisms – not based on wear-out process wetted materials. -
Page 9: Product Certifications
A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that... - Page 10 February 2019 Quick Start Guide I6 Canada Intrinsic Safety Certificate: 1384913 Standards: CSA Std C22.2 No. 25-1966; CSA Std C22.2 No. 30-M1986; CAN/CSA-C22.2 No. 94-M91; CSA Std C22.2 No. 142-M1987; CAN/CSA-C22.2 No. 157-92; CSA Std C22.2 No. 213-M1987; CAN/CSA-E79- 0-95; CAN/CSA- E79-1-95; CAN/CSA- E79-11-95; ANSI/ISA No.
- Page 11 Quick Start Guide February 2019 Special Condition for Safe Use (X): 1. The equipment with the Transient Protection (T1) option is not capable of withstanding the 500 V insulation test required by Clause 6.3.13 of EN60079-11:2012. This must be taken into account when installing the equipment. N1 ATEX Type n Certificate: Baseefa03ATEX0115X Standards: EN60079-0:2012+A11:2013, EN60079-15:2010...
- Page 12 February 2019 Quick Start Guide Brazil E2 INMETRO Flameproof Certificate: UL-BR 15.0509X Standards: ABNT NBR IEC 60079-0: ABNT NBR IEC 60079-1: ABNT NBR IEC 60079-26. Markings: Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ T ≤ +70 °C), T5/T4(–60 °C ≤ T ≤...
-
Page 13: Eu Declaration Of Conformity
Quick Start Guide February 2019 Figure 5. Rosemount 4600 Declaration of Conformity EU Declaration of Conformity No: RMD 1048 Rev. J Rosemount Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Rosemount™ 4600 Pressure Transmitters manufactured by, Rosemount Inc. - Page 14 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1048 Rev. J EMC Directive (2014/30/EU) All Models 4600 Pressure Transmitters EN 61326-1:2013, EN 61326-2-3:2013 ATEX Directive (2014/34/EU) Model 4600 Pressure Transmitter Baseefa03ATEX0114X - Intrinsic Safety Certificate Equipment Group II Category 1 G Ex ia IIC T4 Ga Harmonized Standards Used: EN60079-0:2012+A11:2013, EN60079-11:2012,...
- Page 15 Quick Start Guide February 2019 EU Declaration of Conformity No: RMD 1048 Rev. J ATEX Notified Bodies for EC Type Examination Certificate DEKRA [Notified Body Number: 0344] Utrechtseweg 310, 6812 AR Arnhem P.O. Box 5185, 6802 ED Arnhem The Netherlands Postbank 6794687 SGS FIMCO OY [Notified Body Number: 0598] P.O.
- Page 16 February 2019 Quick Start Guide Rosemount 4600 China RoHS List of Rosemount 4600 Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
- Page 17 Quick Start Guide February 2019...
- Page 18 Dubai, United Arab Emirates Electric Co. +971 4 8118100 Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners. +971 4 8865465 © 2019 Emerson. All rights reserved.
