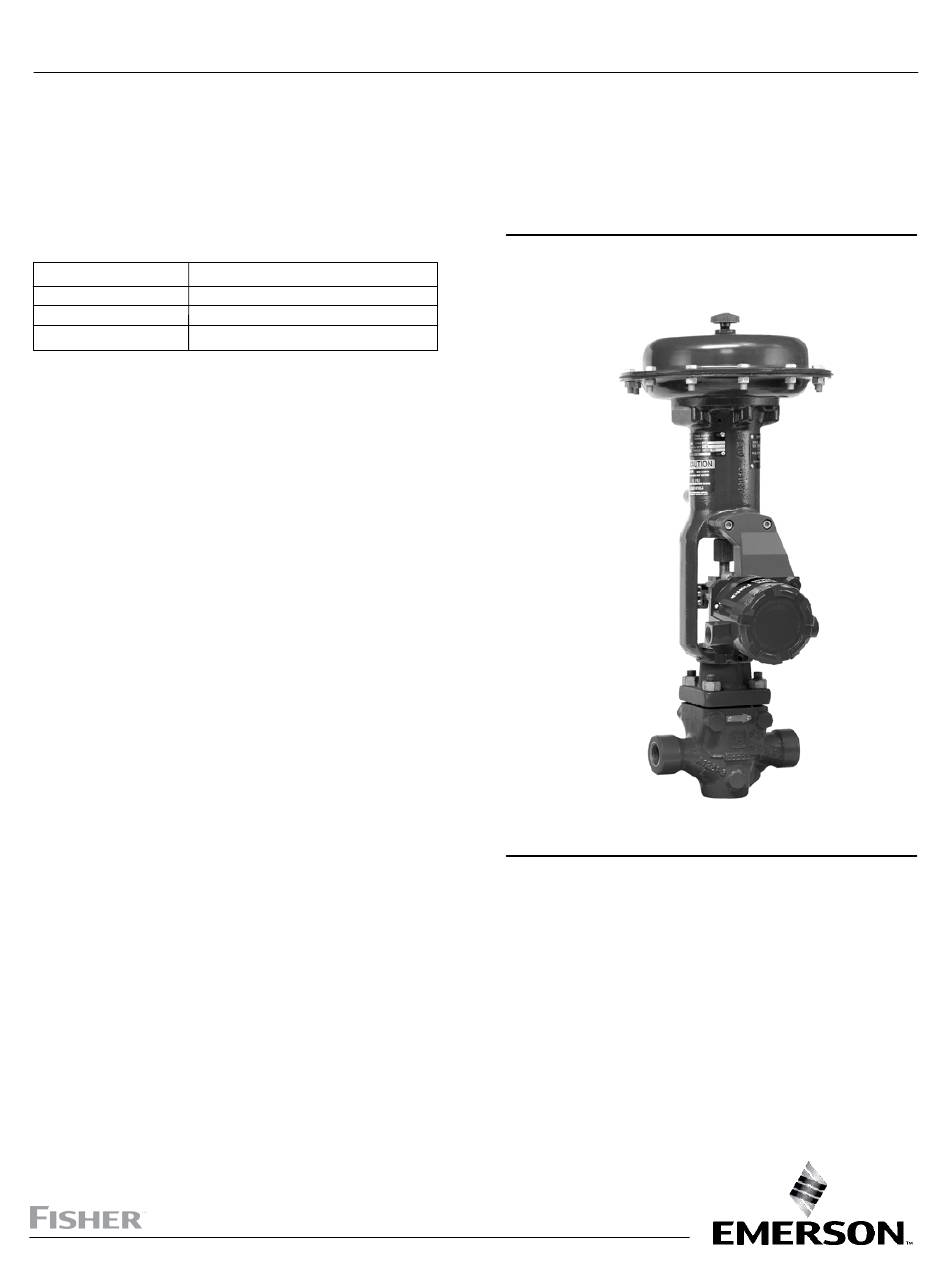

    Instruction Manual 4400 Transmitter D104738X012 October 2023 Fisher FIELDVUE 4400 Digital Position ™ ™ Transmitter Figure 1. FIELDVUE 4400 Digital Position Transmitter This manual applies to Device Type 0x1314 Device Revision Firmware Revision DD Revision Contents Introduction ....... . . Scope of Manual .

  • Page 2: Introduction

    Fisher FIELDVUE 4400 position transmitter. Scan or click code for This manual describes using the local interface or an Emerson handheld Installation Documents communicator, such as the AMS Trex Device Communicator, to setup and &...
  • Page 3 Instruction Manual 4400 Transmitter D104738X012 October 2023 Table 1. Specifications Input Signal Source Repeatability $ 0.25% of span Hall Effect Sensor and magnet array Electromagnetic Compatibility Transmitter Output Signal Meets EN61326-1:2013 Analog: 4 to 20 mA DC Performance is shown in table 2 and High saturation: 20.5 mA EN61326-3-2:2008 Low saturation: 3.8 mA...
  • Page 4 1. Only one High/Low alarm available in a given configuration. Alarms are NAMUR NE43 compliant. 2. Rotary actuators with 180 degree rated travel require a special mounting kit; contact your Emerson sales office for kit availability. Table 2. EMC Summary Results—Immunity per EN61326-1...

  • Page 5: Security

    Zero pushbutton and the Span pushbutton, located under the cover. d The FDI (Field Device Integration) or DD (Device Description) used with asset manager software such as AMS Device Manager or a handheld communicator such as Emerson Trex. D Product Operation Best Practices:...

  • Page 6: Installation

    Instruction Manual 4400 Transmitter October 2023 D104738X012 d It is recommended that you set the configuration lock switch in the enabled position after configuration is complete. d Operate the device within a controlled and secured physical environment. d Operate the 4400 and the FDI/DD host within a controlled and secured network environment. d Configure the FDI/DD host to allow users to have least privilege access to the 4400, providing access to only what is absolutely required to perform their job function.
  • Page 7 Instruction Manual 4400 Transmitter D104738X012 October 2023 Figure 2. Mounting Variations ROTARY NAMUR, M6 LINEAR, M8 NOTICE The magnet assembly material has been specifically chosen to provide a long-term stable magnetic field. However, as with any magnet, care must be taken care when handling the magnet assembly. Another high powered magnet placed in close proximity (less than 25 mm) can cause permanent damage.

  • Page 8: Mounting On Sliding-Stem Linear Actuators

    Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 3. Mounting Parts for Sliding-Stem Actuator with up to 210 mm (8.25 inches) Travel ACTUATOR MOUNTING BRACKET FEEDBACK BRACKET AND MAGNET ASSEMBLY POSITION TRANSMITTER Mounting on Sliding-Stem Linear Actuators Bracket Mounted Up to 210 mm (8.25 inches) Travel (figure 3) Before mounting, verify that linear travel is greater than one-half and not more than the recommended travel of the feedback kit.
  • Page 9 Instruction Manual 4400 Transmitter D104738X012 October 2023 Figure 4. Magnet Assembly Alignment, Fail Close Figure 5. Magnet Assembly Alignment, Fail Open ALIGNMENT TEMPLATE ALIGNMENT RETAINING TEMPLATE SLOT RETAINING SLOT INDEX MARK INDEX MARK W9718 W9719 4. Center the magnet assembly inside the retaining slot 5.7 mm (0.22 inch) away from the bottom base of the housing as measured from the center of the assembly bolt holes to the base of the housing (see figure 4).
  • Page 10 Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 6. Mounting on Sliding‐Stem (Linear) Actuators over 210 mm (8.25 Inches) Travel ACTUATOR VALVE STEM MOUNTING ADAPTOR CONNECTOR LONG STROKE MOUNTING KIT (4400 NOT SHOWN) W9709 Figure 7. Roller Arm Variation used for Sliding‐Stem (Linear) Actuators over 210 mm (8.25 Inches) Travel CAM/ROLLER POSITION MARK ROLLER ARM...

  • Page 11: Quarter-Turn Rotary Actuators

    Instruction Manual 4400 Transmitter D104738X012 October 2023 Quarter-Turn Rotary Actuators The 4400 can be mounted to any quarter-turn rotary shaft actuator, as well as those that comply with the NAMUR guidelines. A mounting bracket and associated hardware are required. Refer to figure 8. Before mounting, verify the rotary motion is 45 to 90 degrees of rotation.

  • Page 12: Electrical Connections

    Instruction Manual 4400 Transmitter October 2023 D104738X012 3. Install the mounting bracket on the actuator, 4. Attach the position transmitter to the mounting bracket using the four mounting bolts. 5. Check for clearance between the magnet assembly and the positioner feedback slot. 6.
  • Page 13 Instruction Manual 4400 Transmitter D104738X012 October 2023 NOTICE Resistors are required when using limit switches. Failure to correctly install a limit switch resistor when required, as illustrated in figure 10, could result in permanent damage to the 4400 transmitter. 1. Remove the terminal box cover. 2.
  • Page 14 Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 10. Wiring Diagram POSITION SWITCH FIELD WIRING DEVICE RECEIVING HIGH POSITION SWITCH OUTPUT (CONTACT CLOSURE) DEVICE RECEIVING LOW POSITION INDICATOR SWITCH OUTPUT (CONTACT CLOSURE) TRANSMITTER FIELD WIRING LOOP + POWER SUPPLY EARTH GROUND LOOP - DEVICE...

  • Page 15: Calibrate And Configure The Position Transmitter

    1. Install the latest version of the communication software on the user interface tool. Note This may include an FDI package or DD. Contact your Emerson sales office to ensure you have the latest software version or for information on locating the necessary files.

  • Page 16: Calibrate

    If performing the calibration procedure after a failed calibration the LED will be blinking red. Cycle instrument power before attempting another calibration. An Emerson handheld communicator provides access to calibration and setup information, as well as various service tools.

  • Page 17: Configuration

    4400 Transmitter D104738X012 October 2023 Calibrating via the LUI Using an Emerson Handheld Communicator 1. Ensure the instrument is In Service. 1. Connect to device using TREX or other handheld communicator. 2. Verify the actuator or other device is at one end of travel.
  • Page 18 Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 11. Overview Overview Overview Status  Device  Mode Primary Purpose Variables  PV: Percent of Span  Temperature: Instrument Temperature  Limit Switch Status: Switch State Loop Current Short Cuts  Device Information  Calibration  Primary Purpose Variables Calibrate Time Delay The 4400 captures the first end point and stores it indefinitely until the second end point is captured.
  • Page 19 Instruction Manual 4400 Transmitter D104738X012 October 2023 Figure 12. Configure Configure Manual Setup Alert Setup Guided Setup See figure 13 Instrument Initial Setup Instrument Clock  Calibrate  Instrument Date  Calibrate Time Delay  Instrument Time Device Information  Tag Calibration Status  Long Tag  Descriptor  Date Calibration Date...
  • Page 20 Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 13. Configure: Alert Setup Alert Setup See Alert Setup Section, page 25 Calibration Calibration Progress Calibration Failed Cycle Counter Temperature Cycle Counter Alert Instrument Temperature Low Alert Trigger Instrument Temperature High Travel Accumulator Alert Instrument Temperature Sensor Alert Alert Trigger Sensors...
  • Page 21 Instruction Manual 4400 Transmitter D104738X012 October 2023 Figure 14. Service Tools Service Tools Active Alerts Variables Trends Maintenance See figure 15 Mapped Variables Primary Variable Primary Variable Simulate  Percent of Span Secondary Variable Secondary Variable Tertiary Variable Tertiary Variable Quaternary Variable Quaternary Variable Temperature Overview...
  • Page 22 Instruction Manual 4400 Transmitter October 2023 D104738X012 Figure 15. Service Tools: Maintenance Maintenance Time Open Log Locate Device: Locate Device  Time Open Calibration   Erase Time Open Log   Read Time Open Log  Calibrate:  Calibrate Time Delay Time Open Data  Calibration Status   Time Open Index  Calibration Date   Open Date...
  • Page 23 Instruction Manual 4400 Transmitter D104738X012 October 2023 Dynamic Variables: Input Voltage Instrument Temperature Cycle Counter Switch One State Switch Two State Last Time Closed Last Time Open Closed State Dwell Time Open State Dwell Time Percent of Span Instrument Date Allows you to set the date on the instrument clock for use in stamping logged events.
  • Page 24 Instruction Manual 4400 Transmitter October 2023 D104738X012 Polling Address is used by the Host to identify a field device on the wired maintenance port. It has no significance on the wireless network and can only be edited at the maintenance port. Default is 0, addressable range is 0 through 63. Primary Variables PV, SV, TV, and QV are selectable variables that are broadcasted in HART from the device.

  • Page 25: Alert Setup

    Instruction Manual 4400 Transmitter D104738X012 October 2023 Enter the Tag for the instrument (up to 8 characters). The Tag is the easiest way to distinguish between instruments in a multi-instrument environment. Use the Tag to label instruments electronically according to the requirements of your application.

  • Page 26: Maintenance

    There are no repairable or replaceable parts on the 4400 digital position transmitter, with the exception of the feedback array/magnet assembly. Contact your Emerson sales office if a replacement 4400 transmitter is needed; refer to the Parts Kits information below for feedback array kits.

  • Page 27: Replacing The Instrument

    Use only genuine Fisher replacement parts. Components that are not supplied by Emerson should not, under any circumstances, be used in any Fisher instrument. Use of components not supplied by Emerson may void your warranty, might adversely affect the performance of the instrument, and could cause personal injury and property damage.

  • Page 28: Parts Kits
