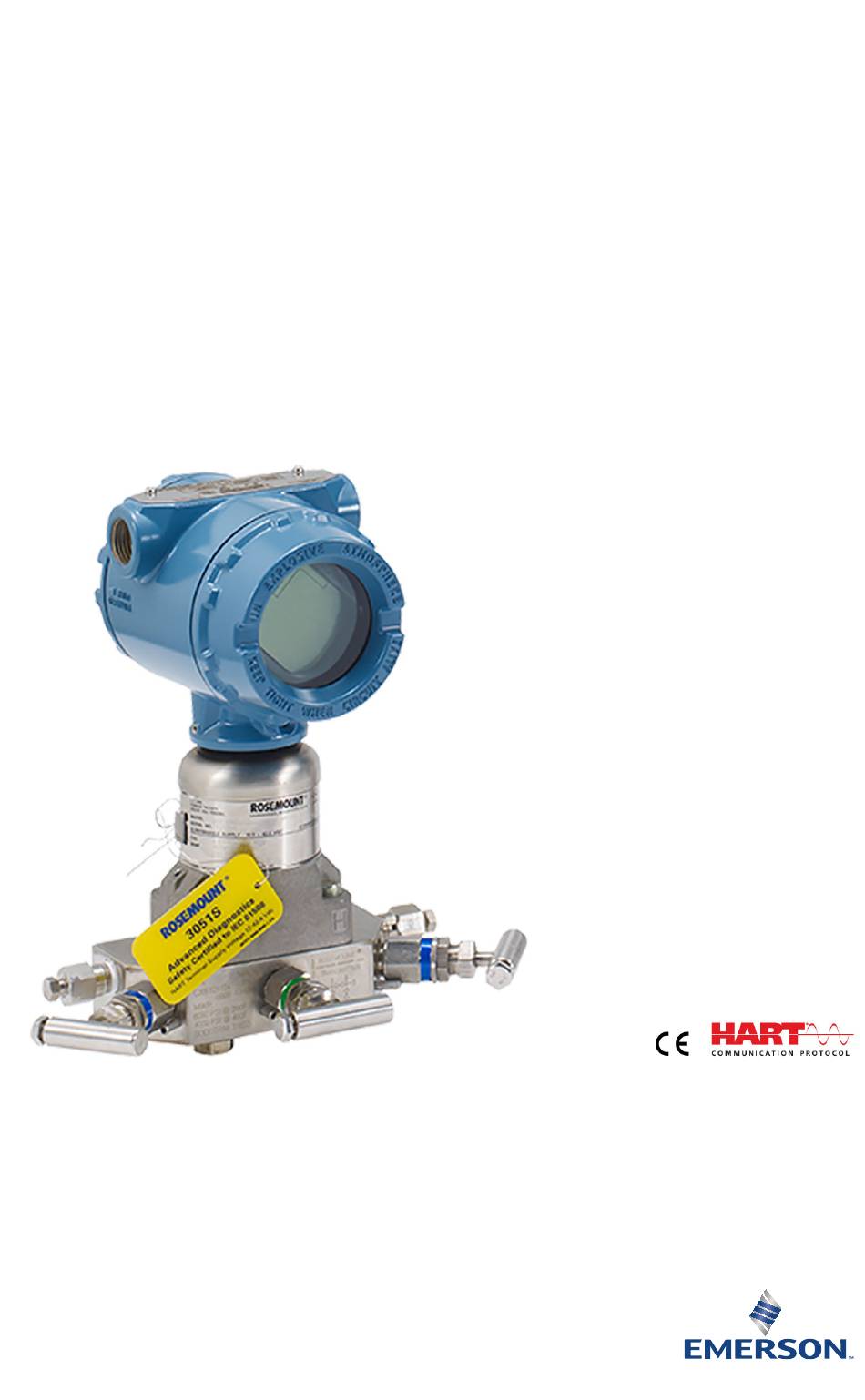

Quick Start Guide
00825-0300-4801, Rev CA
December 2018
™
Rosemount
3051S Series Pressure
Transmitter and 3051SF Series Flow
Meter
®
with Advanced HART
Diagnostics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3051S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 3051S Series

Summary of Contents for Emerson Rosemount 3051S Series

  • Page 1 Quick Start Guide 00825-0300-4801, Rev CA December 2018 ™ Rosemount 3051S Series Pressure Transmitter and 3051SF Series Flow Meter ® with Advanced HART Diagnostics...

  • Page 2: Table Of Contents

    Refer to the Rosemount 3051S HART Reference Manual for more instruction. This document is also available electronically on Emerson.com/Rosemount. WARNING Explosions could result in death or serious injury. Installation of this transmitter in an explosive environment must be in accordance with the appropriate local, national, and international standards, codes, and practices.
  • Page 3 December 2018 Quick Start Guide Trim the transmitter........21 Rosemount 3051S Declaration of Conformity ..............40 Safety instrumented systems....... 23 China RoHS..........44 Rosemount 3051S/3051SFx/3051S-ERS Product Certifications........24 Quick Start Guide...
  • Page 4 Quick Start Guide December 2018 Rosemount 3051S Advanced HART...

  • Page 5: System Readiness

    1. Verify the latest device driver (DD/DTM ) is loaded on your systems to ensure proper communications. 2. Download the latest device driver at Emerson.com FieldCommGroup.org. Device revisions and drivers Table 1-1 provides the information necessary to ensure you have the correct device driver and documentation for your device.
  • Page 6 Quick Start Guide December 2018 Table 1-1: Device Revisions and Files (continued) Identify device Find device driver Review Review instructio functiona lity Oct-10 00809-01 Added 00-4801 Power Advisory, Output, Power Consumpt ion, Coefficien t of Variation May-07 00809-01 Update 00-4801 Statistical Process Monitorin...

  • Page 7: Mount The Transmitter

    If the transmitter requires the use of a mounting bracket, use the images for ™ instructions on how to properly mount the transmitter using the Emerson provided mounting brackets. Use only bolts provided with the transmitter or sold as Emerson spare parts...
  • Page 8 Quick Start Guide December 2018 A. Direction of flow Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. A. Direction of flow Mounting brackets Figure 2-1: Mounting Bracket –...
  • Page 9 Only use bolts ™ supplied with the transmitter or sold by Emerson as spare parts. Figure 2-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 10 Table 2-1 . If bolt material is not shown in Table 2-1, contact the local Emerson representative for more information. Use the following bolt installation procedure: Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.
  • Page 11 December 2018 Quick Start Guide 5. Verify the flange bolts are protruding through the sensor module before applying pressure (see Figure 2-5). Example Table 2-1: Torque Values for the Flange and Flange Adapter Bolts Bolt material Head markings Initial torque Final torque Carbon Steel 300 in-lb...
  • Page 12 Quick Start Guide December 2018 O-rings with flange adapters WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. A.

  • Page 13: Consider Housing Rotation

    December 2018 Quick Start Guide Consider housing rotation About this task To improve field access to wiring or to better view the optional LCD display: Procedure 1. Loosen the housing rotation set screw. 2. Turn the housing up to 180° left or right of its original (as shipped) position.

  • Page 14: Set The Switches And Jumpers

    Quick Start Guide December 2018 Set the switches and jumpers Prerequisites Set alarm and security switch configuration before installation as shown in Figure 4-1 The alarm switch sets the analog output alarm to high or low (default alarm is high). The security switch allows (off) or prevents (on) any configuration of the transmitter (default security is off).

  • Page 15: Connect Wiring And Power Up

    December 2018 Quick Start Guide Connect wiring and power up Procedure 1. Remove and discard orange conduit plugs. 2. Remove the housing cover labeled “Field Terminals.” Note Do not connect the power across the test terminals. Power could damage the test diode in the test connection. Twisted pairs yield best results.
  • Page 16 Quick Start Guide December 2018 Figure 5-1: Transmitter Wiring (Plantweb Housing) A. RL ≥ 250 Ω B. Power supply Figure 5-2: Transmitter Wiring (Junction Box Housing) A. RL ≥ 250 Ω B. Power supply Note Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 3051S case is properly grounded.
  • Page 17 December 2018 Quick Start Guide Procedure 1. Remove the field terminals housing cover. 2. Connect the wiring pair and ground as shown. Figure 5-3: Wiring A. Insulate shield B. Minimize distance C. Connect shield back to the power supply ground D.
  • Page 18 Quick Start Guide December 2018 Figure 5-4: Load Limitation 1387 1000 Operating Region 10.5 42.4 Voltage (Vdc) Maximum loop resistance = 43.5 x (power supply voltage – 10.5) The Field Communicator requires a minimum loop resistance of 250Ω for communication. Rosemount 3051S Advanced HART...

  • Page 19: Configuration Verification

    December 2018 Quick Start Guide Configuration verification ® Use any HART -compliant master to communicate with and verify configuration of the transmitter with Advanced HART Diagnostics (option code DA2). A check (✓) indicates the basic configuration parameters. At a minimum, these parameters should be verified as part of the configuration and startup procedure.
  • Page 20 Quick Start Guide December 2018 Table 6-1: Fast Key Sequence (continued) Function HART 7 Fast Keys HART 5 Fast Keys ✓ Tag 2, 1, 1, 1, 1, 1 2, 1, 1, 1, 1, 1 ✓ Transfer Function (Setting Output Type) 2, 2, 1, 1, 4 2, 2, 1, 1, 4 Transmitter Security (Write Protect)

  • Page 21: Trim The Transmitter

    December 2018 Quick Start Guide Trim the transmitter Transmitters are shipped fully calibrated per request or by the factory default of full scale (lower range value = zero, upper range value = upper range limit). Zero Trim Prerequisites Choose your trim procedure 1.
  • Page 22 Quick Start Guide December 2018 Figure 7-1: Transmitter Adjustment Buttons (Plantweb Housing) A. Zero B. Span Rosemount 3051S Advanced HART...

  • Page 23: Safety Instrumented Systems

    December 2018 Quick Start Guide Safety instrumented systems For safety certified installations, refer to the “Advanced HART Diagnostic Suite” section of the Rosemount 3051S Reference Manual for installation procedures and system requirements specific to safety instrumented systems. Quick Start Guide...

  • Page 24: Rosemount 3051S/3051Sfx/3051S-Ers

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that...
  • Page 25 December 2018 Quick Start Guide Special Condition for Safe Use: 1. The Model 3051S/3051S-ERS Pressure Transmitter contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 26 Quick Start Guide December 2018 Standards CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05 Markings Intrinsically Safe Class I, Division 1;...
  • Page 27 December 2018 Quick Start Guide environmental conditions to which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime. 2. Flameproof joints are not intended for repair. 3.
  • Page 28 Quick Start Guide December 2018 2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of protection of at least IP20 in accordance with IEC/EN 60529. 3. The Model 3051S enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 29 December 2018 Quick Start Guide Special Conditions for Safe Use (X): 1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66. 2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.
  • Page 30 Quick Start Guide December 2018 Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between EPL Ga (process connection) and EPL Gb (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material.
  • Page 31 December 2018 Quick Start Guide Table 9-5: Input Parameters SuperModule 30 V 300 mA 1.0 W 30 nF 3051S...A; 3051SF…A; 30 V 300 mA 1.0 W 12 nF 3051SAL…C 3051S…F; 3051SF…F 30 V 300 mA 1.3 W 3051S …A…M7, M8, or 30 V 300 mA 1.0 W...
  • Page 32 Quick Start Guide December 2018 Table 9-6: Input Parameters (continued) 3051S…F; 3051SF…F 30 V 300 mA 1.3 W 3051S …A…M7, M8, or 30 V 300 mA 1.0 W 12 nF 60 µH M9; 3051SF …A…M7, M8, or M9; 3051SAL…C… M7, M8, or M9 3051SAL or 3051SAM 30 V...
  • Page 33 December 2018 Quick Start Guide Special Conditions for Safe Use (X): 1. The Model 3051S Transmitters fitted with transient protection are not capable of withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must be taken into account during installation.
  • Page 34 Quick Start Guide December 2018 Markings Ex nA IIC T5 Gc,(–40 °C ≤ T ≤ +85 °C) Special Condition for Safe Use (X): 1. The equipment is not capable of withstanding the 500 V insulation test required by clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the equipment.
  • Page 35 December 2018 Quick Start Guide 2. The Model 701PBKKF Power Module may be replaced in a hazardous area. The Power Module has a surface resistivity greater than 1 GΩ and must be properly installed in the wireless device enclosure. Care must be taken during transportation to and from the point of installation to prevent electrostatic charge buildup.
  • Page 36 Quick Start Guide December 2018 Markings 3051S: Ex d IIC T6…T4; Ex tD A20 T105 °C T 95 °C; IP66 3051SFx: Ex d IIC T4~T6 Ga/Gb; Ex tD A20 IP66 T105 °CT °C; IP66 3051S-ERS: Ex d IIC T4~T6 Ga/Gb 9.6.2 I3 China Intrinsic Safety Certificate 3051S: GYJ16.1250X[Mfg USA, China, Singapore] 3051SFx: GYJ16.1465X [Mfg USA, China, Singapore]...
  • Page 37 December 2018 Quick Start Guide 9.7.3 IN Technical Regulation Customs Union (EAC) Intrinsic Safety Certificate: RU C-US.AA87.B.00378 Markings: 0Ex ia IIC T4 Ga X Japan 9.8.1 E4 Japan Flameproof Certificate TC15682, TC15683, TC15684, TC15685, TC15686, TC15687, TC15688, TC15689, TC15690, TC17099, TC17100, TC17101, TC17102, TC18876 3051ERS: TC20215, TC20216, TC20217, TC20218, TC20219, TC20220, TC20221...
  • Page 38 Quick Start Guide December 2018 9.9.2 IP Republic of Korea Intrinsic Safety Certificate 12-KB4BO-0202X [HART - Mfg USA],12-KB4BO-0204X [Fieldbus - Mfg USA], 12-KB4BO-0203X [HART - Mfg Singapore], 13- KB4BO-0296X [Fieldbus - Mfg Singapore] Markings Ex ia IIC T4 9.10 Combinations Combination of E1, I1, N1, and ND Combination of E2 and I2 Combination of E5 and I5...
  • Page 39 December 2018 Quick Start Guide 9.11.3 SDN Det Norske Veritas (DNV) Type Approval Certificate TAA00000K9 Intended Use Det Norske Veritas' Rules for Classification of Ships, High Speed & Light Craft, and Det Norske Veritas' Offshore Standards Application Location classes Type 3051S Temperature Humidity...
  • Page 40 Quick Start Guide December 2018 Rosemount 3051S Declaration of Conformity Rosemount 3051S Advanced HART...
  • Page 41 December 2018 Quick Start Guide Quick Start Guide...
  • Page 42 Quick Start Guide December 2018 Rosemount 3051S Advanced HART...
  • Page 43 December 2018 Quick Start Guide Quick Start Guide...

  • Page 44: China Rohs

    Quick Start Guide December 2018 China RoHS Rosemount 3051S China RoHS List of Rosemount 3051S Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE)
  • Page 45 December 2018 Quick Start Guide Quick Start Guide...
  • Page 46 Quick Start Guide December 2018 Rosemount 3051S Advanced HART...
  • Page 47 December 2018 Quick Start Guide Quick Start Guide...
  • Page 48 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
