6.4.7 Motor Starter.

See Figure 6-7. This application will require an across the line IEC starter with thermal overloads and
its size will be based on the voltage and motor horsepower. Control voltage is 120 VAC. See Paragraph
6.9 to Paragraph 6.13 for the proper Bauer Part Number.
6.4.8 Overload Relay
See Figure 6-8.The overload relay provides thermal overload protection and its size will be based on
the voltage and motor horsepower. The dial is set to the Full Load Amperage (FLA) of the electric
motor at the factory. If the Overload Relay is replaced set the dial to the FLA listed on the motor name-
plate or the label inside the Electrical Panel. The Overload Relay plugs into the Motor Starter. See Para-
graph 6.9 to Paragraph 6.13 for the proper Bauer Part Number.
Figure 6-7
6.4.9 Starter Reset
There is a starter reset push button on the front of the Electrical Panel. Should the electric motor have
overloaded and tripped out during normal operation, then depressing this button after giving the motor
some time to cool, will reset the overload relay.
Page 80

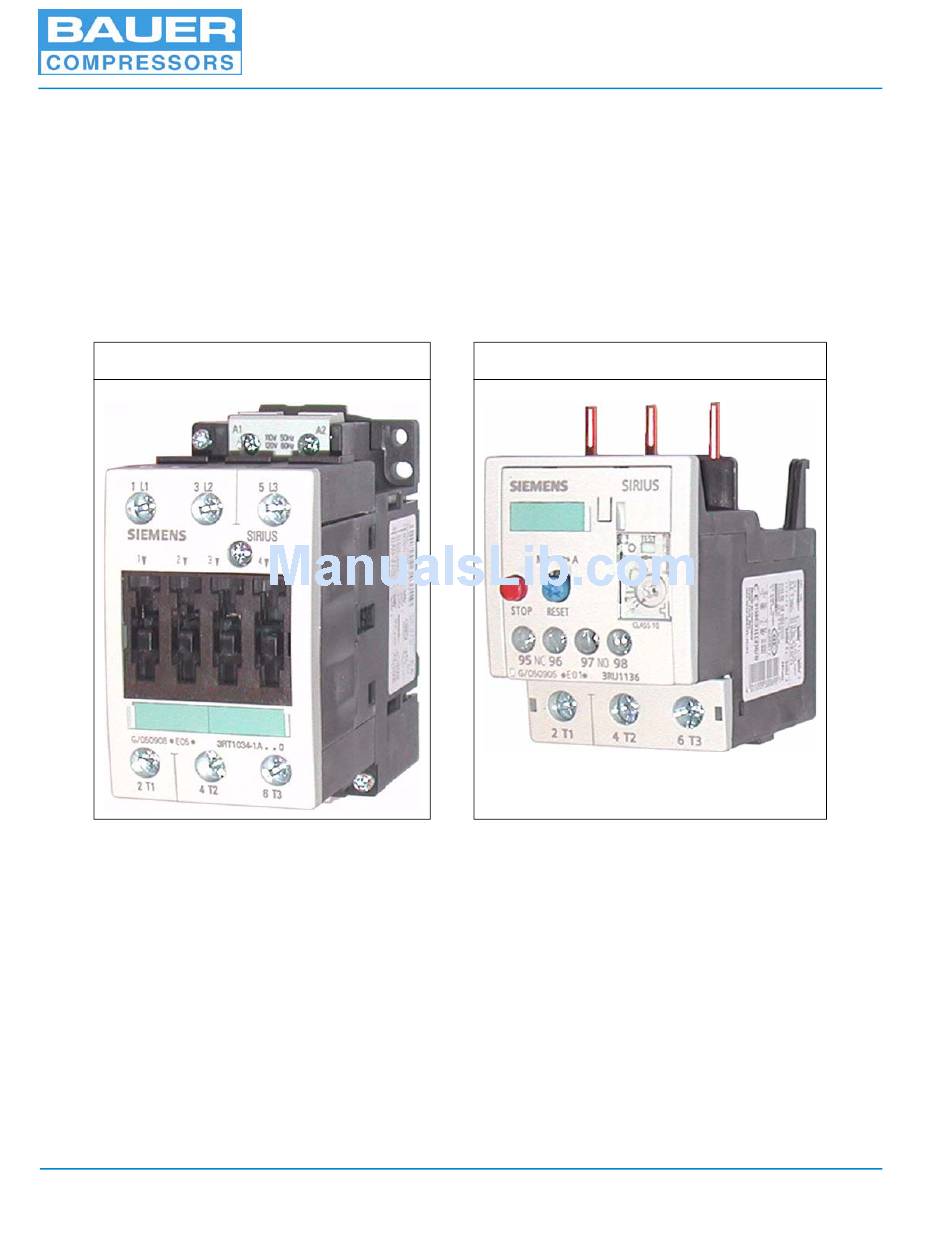

Motor Starter (typical) Overload Relay (typical)
