Inlet Assembly

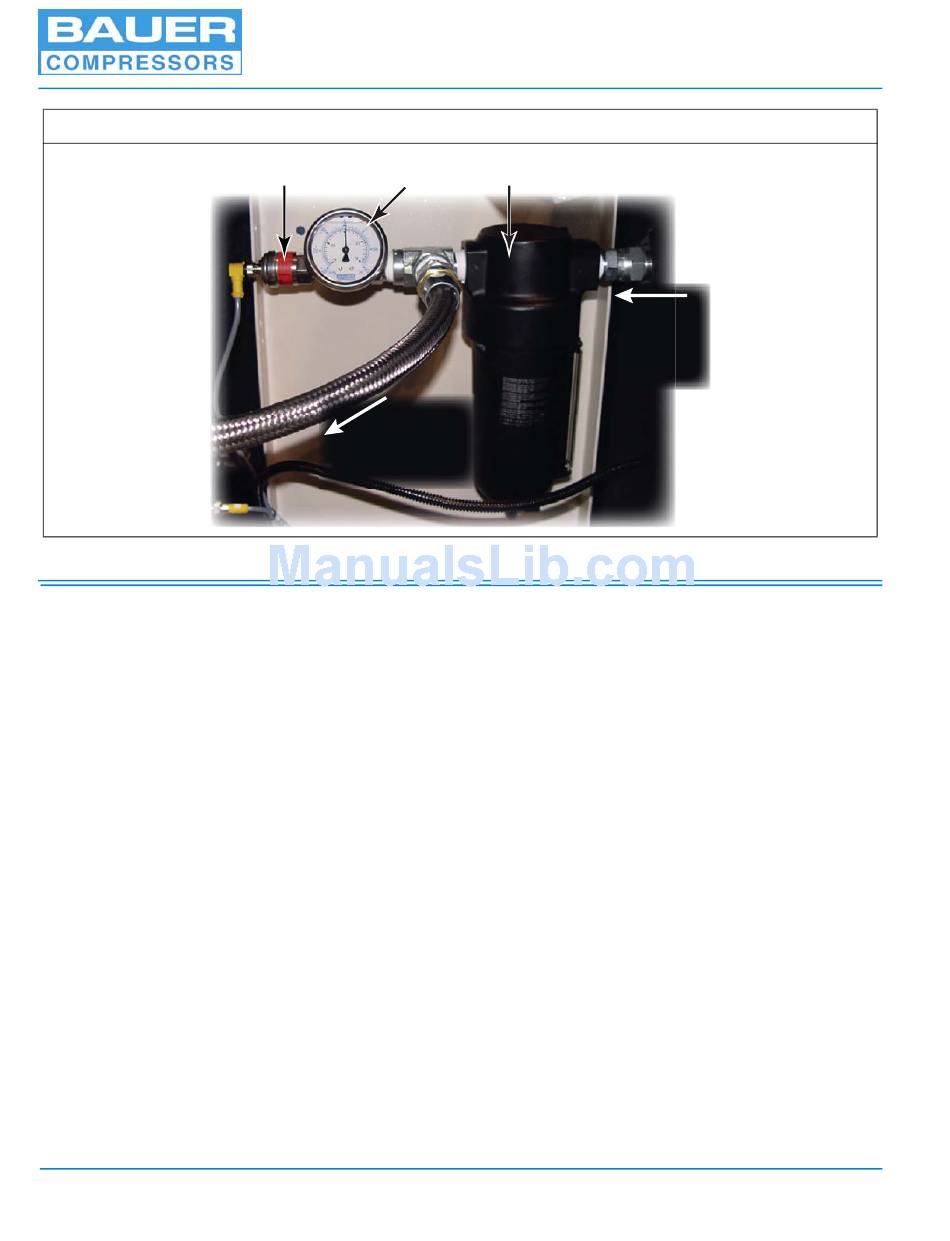

Figure 3-29
Item Qty Part No.
1 1 SEN-0055
2 1 GAG-00011W Pressure Gauge
3 1 FLR-0009
— 1 ELM-0040
Page 46
1 2
TO
COMPRESSOR
INLET
Description
Pressure Sensor
Filter, Particulate
Filter Element
3
INLET
FROM
SUPPLY
Notes
0 -30 psia, 1-11 V
30 Hg - 15 psi
gas tight
40 µm
