MNL-126509

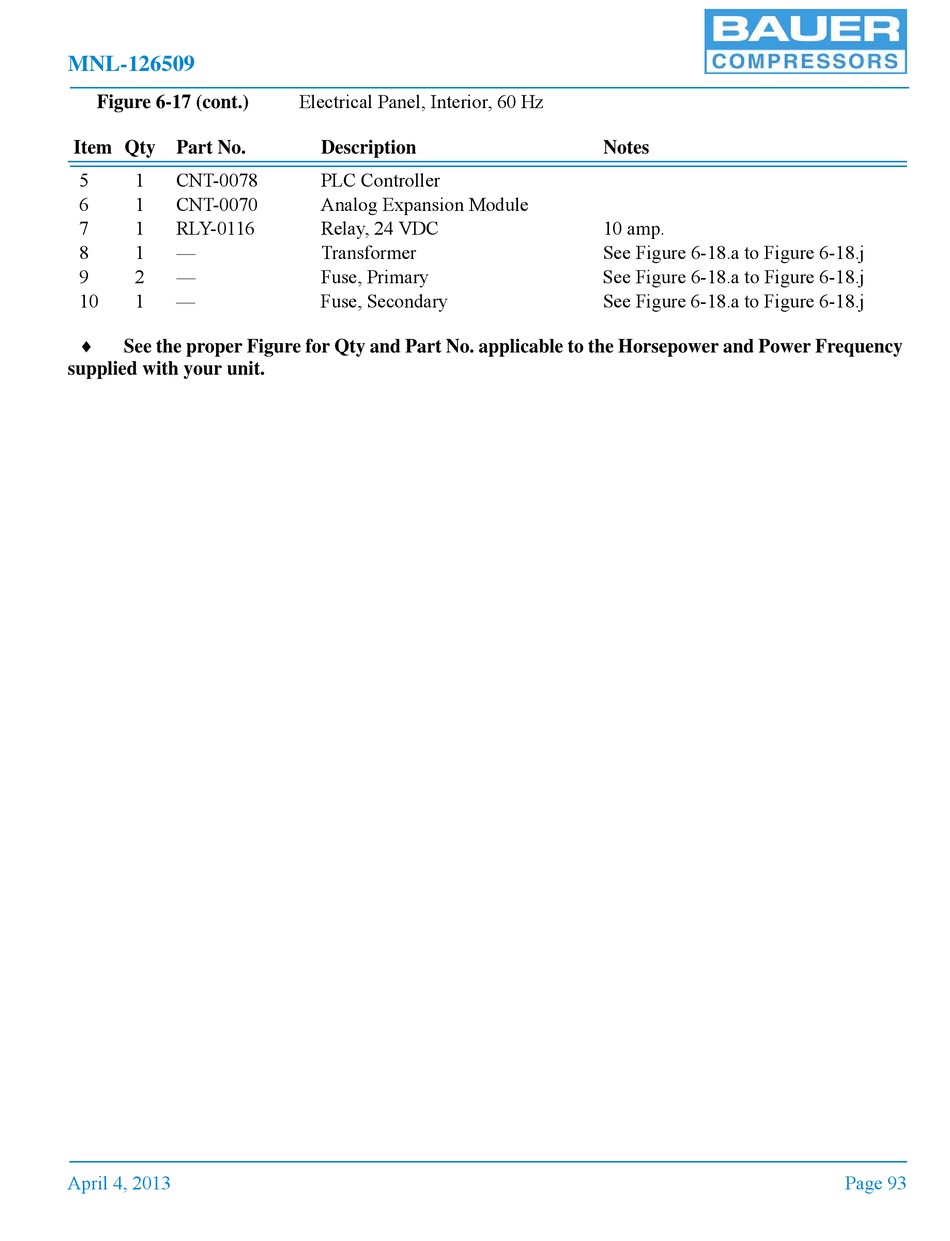

Figure 6-17 (cont.)
Item Qty Part No.
5 1 CNT-0078
6 1 CNT-0070
7 1 RLY-0116
8 1 —
9 2 —
10 1 —

See the proper Figure for Qty and Part No. applicable to the Horsepower and Power Frequency
supplied with your unit.
April 4, 2013
Electrical Panel, Interior, 60 Hz
Description
PLC Controller
Analog Expansion Module
Relay, 24 VDC
Transformer
Fuse, Primary
Fuse, Secondary
Notes
10 amp.
See Figure 6-18.a to Figure 6-18.j
See Figure 6-18.a to Figure 6-18.j
See Figure 6-18.a to Figure 6-18.j
Page 93
