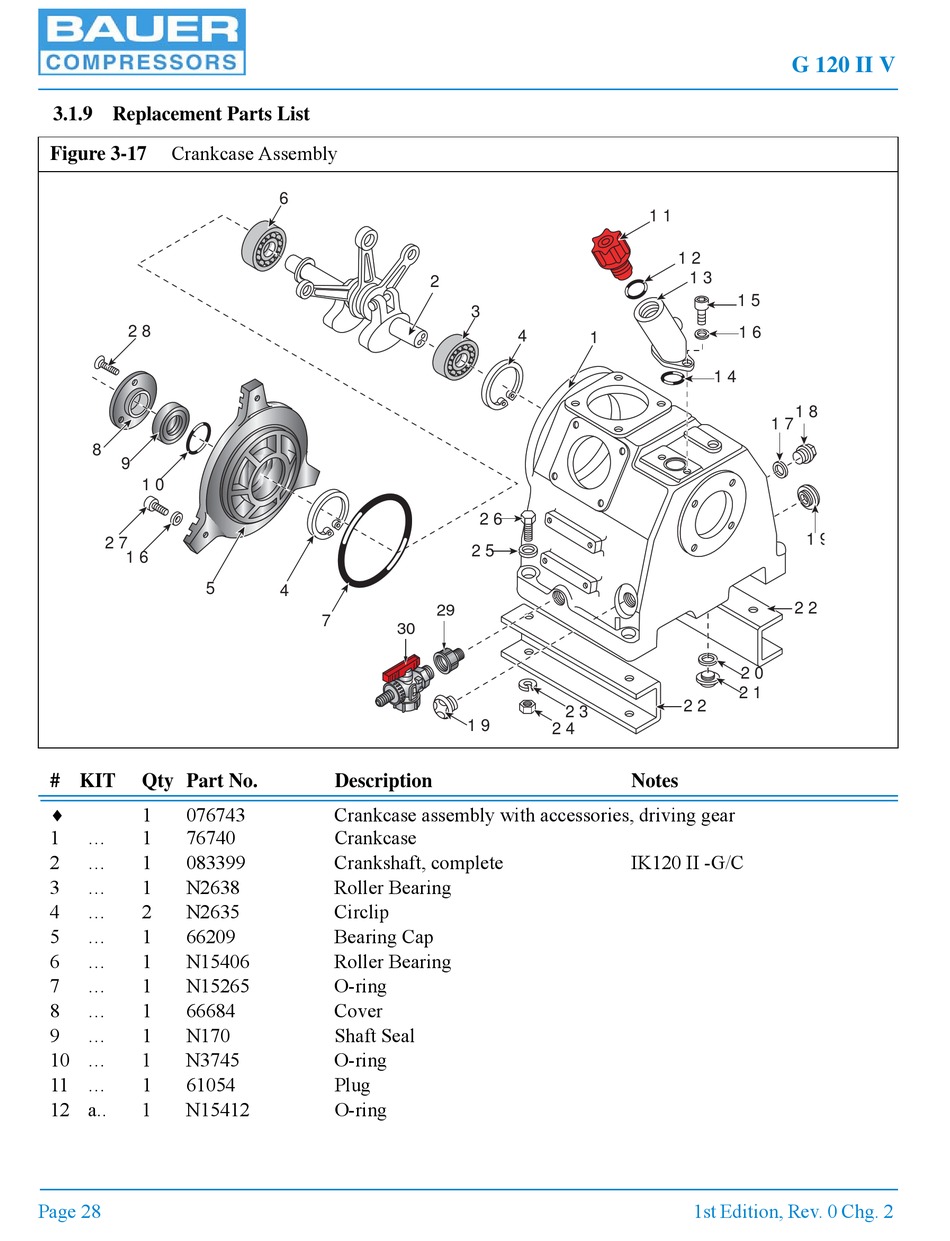

3.1.9 Replacement Parts List

Crankcase Assembly
Figure 3-17
2 8
8
9
1 0
2 7
1 6
5
# KIT Qty Part No.

1 076743
1 ... 1 76740
2 ... 1 083399
3 ... 1 N2638
4 ... 2 N2635
5 ... 1 66209
6 ... 1 N15406
7 ... 1 N15265
8 ... 1 66684
9 ... 1 N170
10 ... 1 N3745
11 ... 1 61054
12 a.. 1 N15412
Page 28
6
2
4
29
7
30
Description
Crankcase assembly with accessories, driving gear
Crankcase
Crankshaft, complete
Roller Bearing
Circlip
Bearing Cap
Roller Bearing
O-ring
Cover
Shaft Seal
O-ring
Plug
O-ring
1 1
3
4
1
2 6
2 5
2 3
1 9
2 4
Notes
IK120 II -G/C
G 120 II V
1 2
1 3
1 5
1 6
1 4
1 8
1 7
1 9
2 2
2 0
2 1
2 2
1st Edition, Rev. 0 Chg. 2
