Cooling System

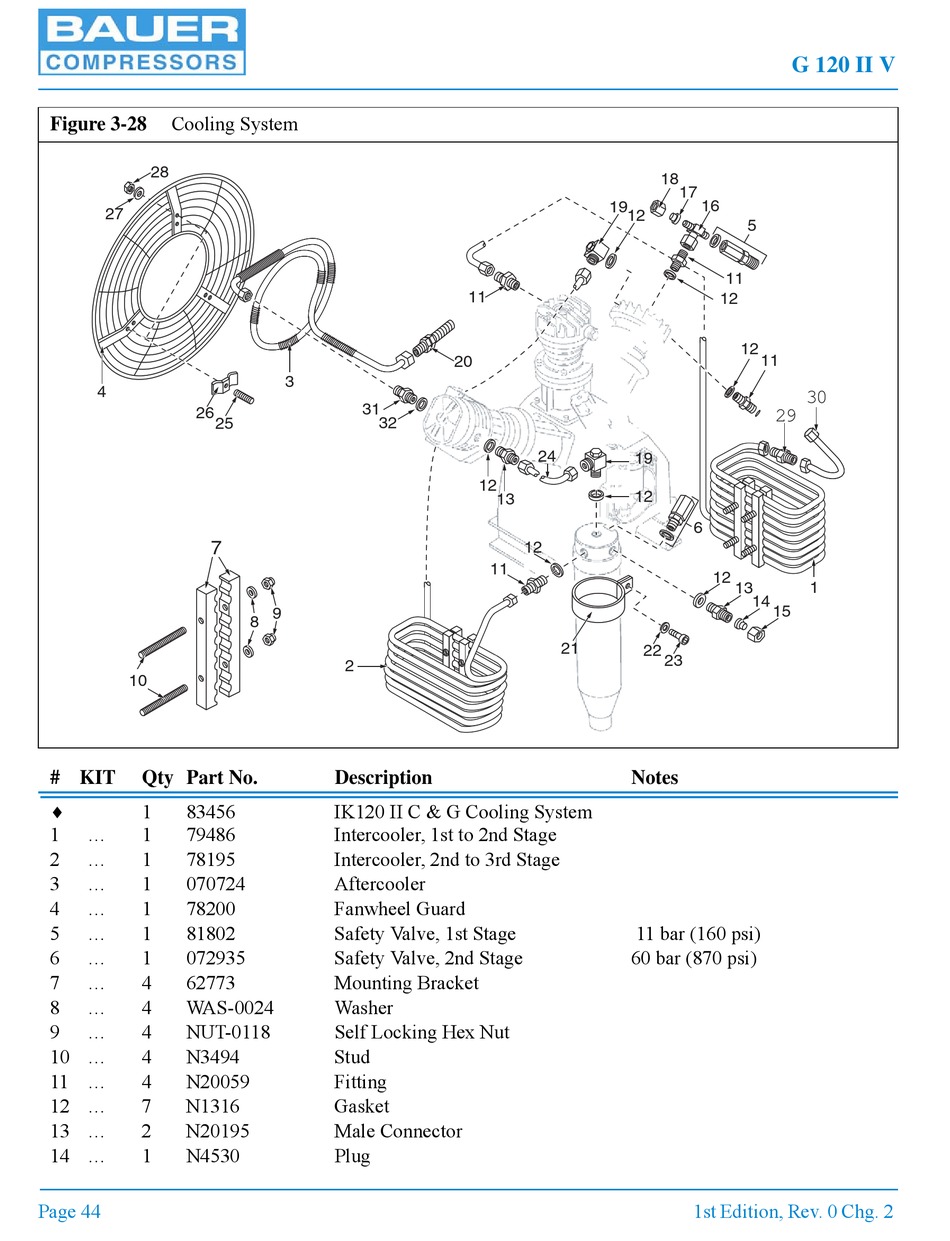

Figure 3-28
28
27
4
26
25
7
10
# KIT Qty Part No.

1 83456
1 ... 1 79486
2 ... 1 78195
3 ... 1 070724
4 ... 1 78200
5 ... 1 81802
6 ... 1 072935
7 ... 4 62773
8 ... 4 WAS-0024
9 ... 4 NUT-0118
10 ... 4 N3494
11 ... 4 N20059
12 ... 7 N1316
13 ... 2 N20195
14 ... 1 N4530
Page 44
3
31
32
9
8
2
Description
IK120 II C & G Cooling System
Intercooler, 1st to 2nd Stage
Intercooler, 2nd to 3rd Stage
Aftercooler
Fanwheel Guard
Safety Valve, 1st Stage
Safety Valve, 2nd Stage
Mounting Bracket
Washer
Self Locking Hex Nut
Stud
Fitting
Gasket
Male Connector
Plug
19
12
11
20
24
19
12
12
13
12
11
21
Notes
11 bar (160 psi)
60 bar (870 psi)
G 120 II V
18
17
16
5
11
12
12
11
30
29
6
12
13 1
14
15
22
23
1st Edition, Rev. 0 Chg. 2
