Bauer Mini Verticus Instruction Manual And Replacement Parts List page 52

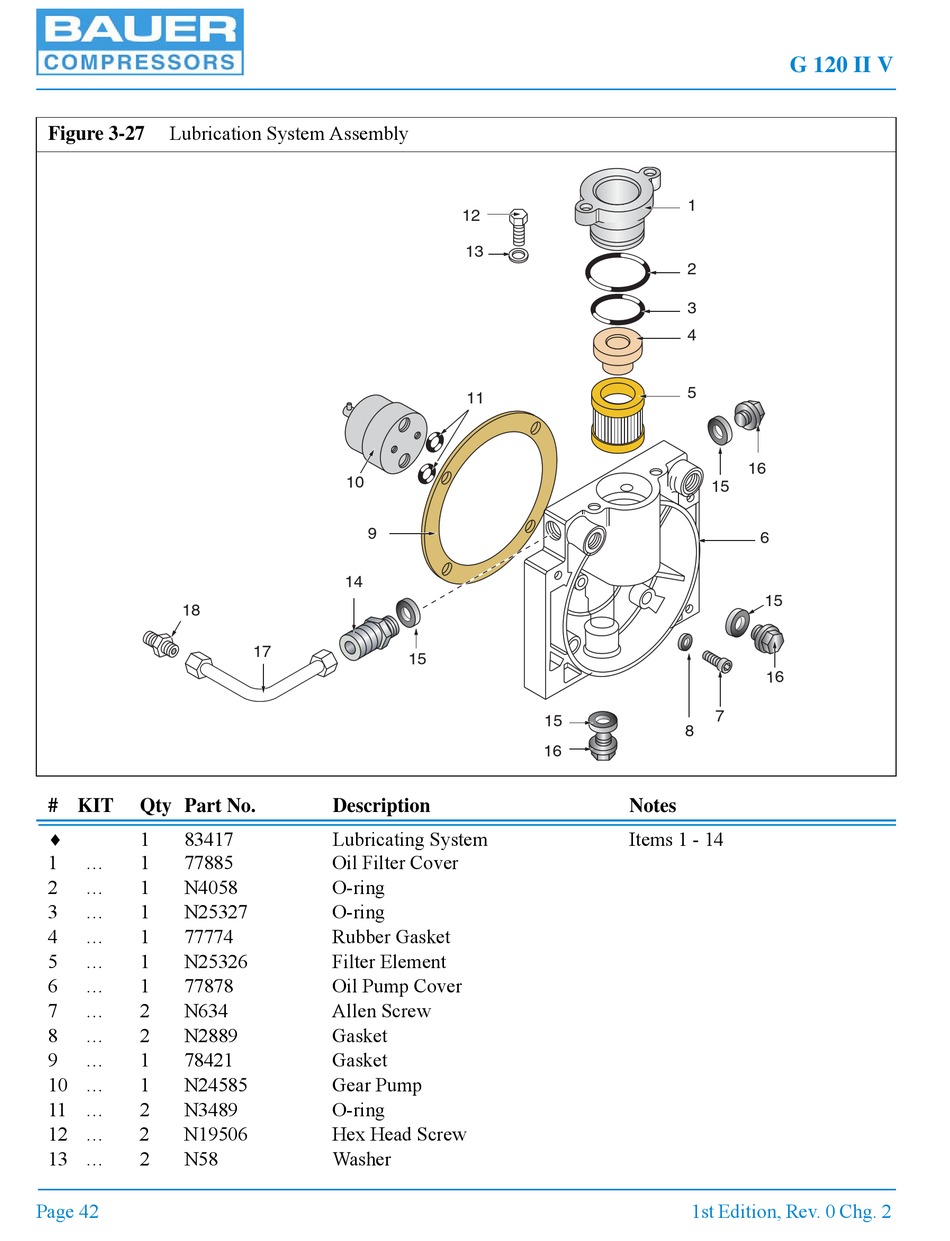

Lubrication System Assembly
Figure 3-27
18
# KIT Qty Part No.

1 83417
1 ... 1 77885
2 ... 1 N4058
3 ... 1 N25327
4 ... 1 77774
5 ... 1 N25326
6 ... 1 77878
7 ... 2 N634
8 ... 2 N2889
9 ... 1 78421
10 ... 1 N24585
11 ... 2 N3489
12 ... 2 N19506
13 ... 2 N58
Page 42
10
9
14
17
15
Description
Lubricating System
Oil Filter Cover
O-ring
O-ring
Rubber Gasket
Filter Element
Oil Pump Cover
Allen Screw
Gasket
Gasket
Gear Pump
O-ring
Hex Head Screw
Washer
12
13
11
15
16
Notes
Items 1 - 14
G 120 II V
1
2
3
4
5
16
15
6
15
7
8
1st Edition, Rev. 0 Chg. 2
