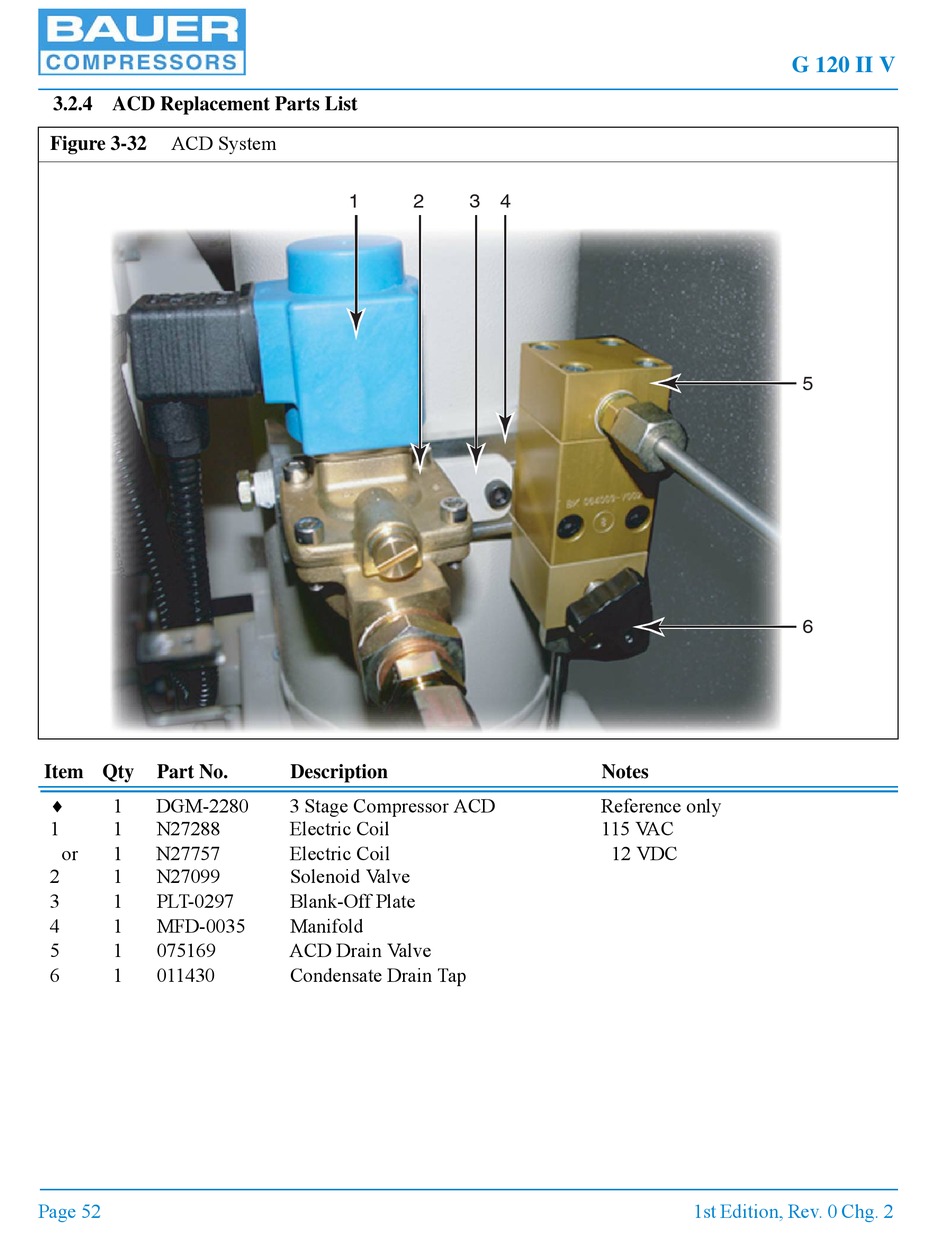

3.2.4 ACD Replacement Parts List

ACD System
Figure 3-32
Item Qty Part No.

1 DGM-2280
1 1 N27288
or 1 N27757
2 1 N27099
3 1 PLT-0297
4 1 MFD-0035
5 1 075169
6 1 011430
Page 52
1 2 3 4
Description
3 Stage Compressor ACD
Electric Coil
Electric Coil
Solenoid Valve
Blank-Off Plate
Manifold
ACD Drain Valve
Condensate Drain Tap
Notes
Reference only
115 VAC
12 VDC
1st Edition, Rev. 0 Chg. 2
G 120 II V
5
6
