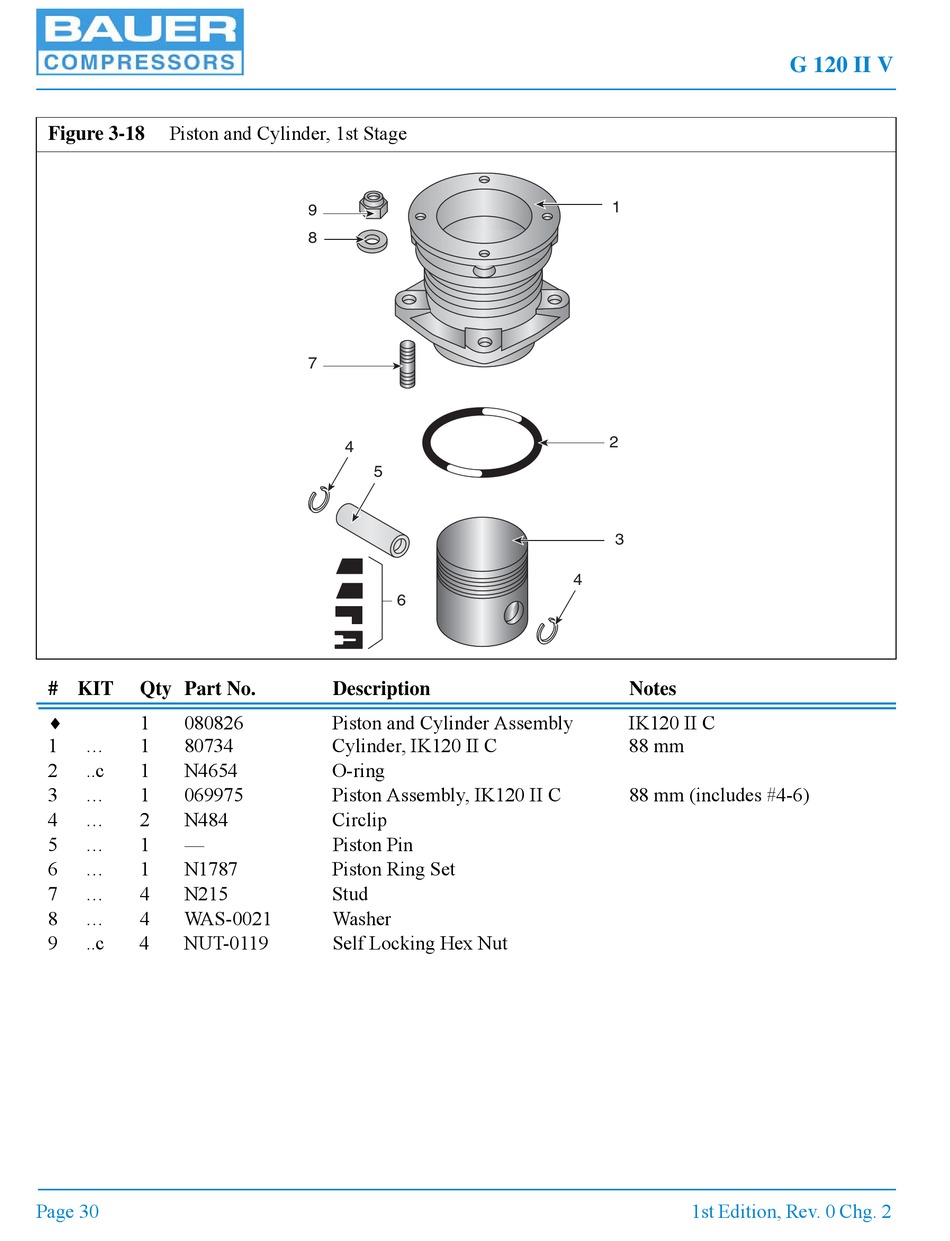

Piston and Cylinder, 1st Stage
Figure 3-18
# KIT
Qty Part No.
1
080826
1
...
1
80734
2
..c
1
N4654
3
...
1
069975
4
...
2
N484
5
...
1
—
6
...
1
N1787
7
...
4
N215
8
...
4
WAS-0021
9
..c
4
NUT-0119
Page 30
9
8
7
4
5
6
Description
Piston and Cylinder Assembly
Cylinder, IK120 II C
O-ring
Piston Assembly, IK120 II C
Circlip
Piston Pin
Piston Ring Set
Stud
Washer
Self Locking Hex Nut
1
2
3
4
Notes
IK120 II C
88 mm
88 mm (includes #4-6)
1st Edition, Rev. 0 Chg. 2
G 120 II V
