Chamber Parts List - Bauer Mini Verticus Instruction Manual And Replacement Parts List

MNL-126509

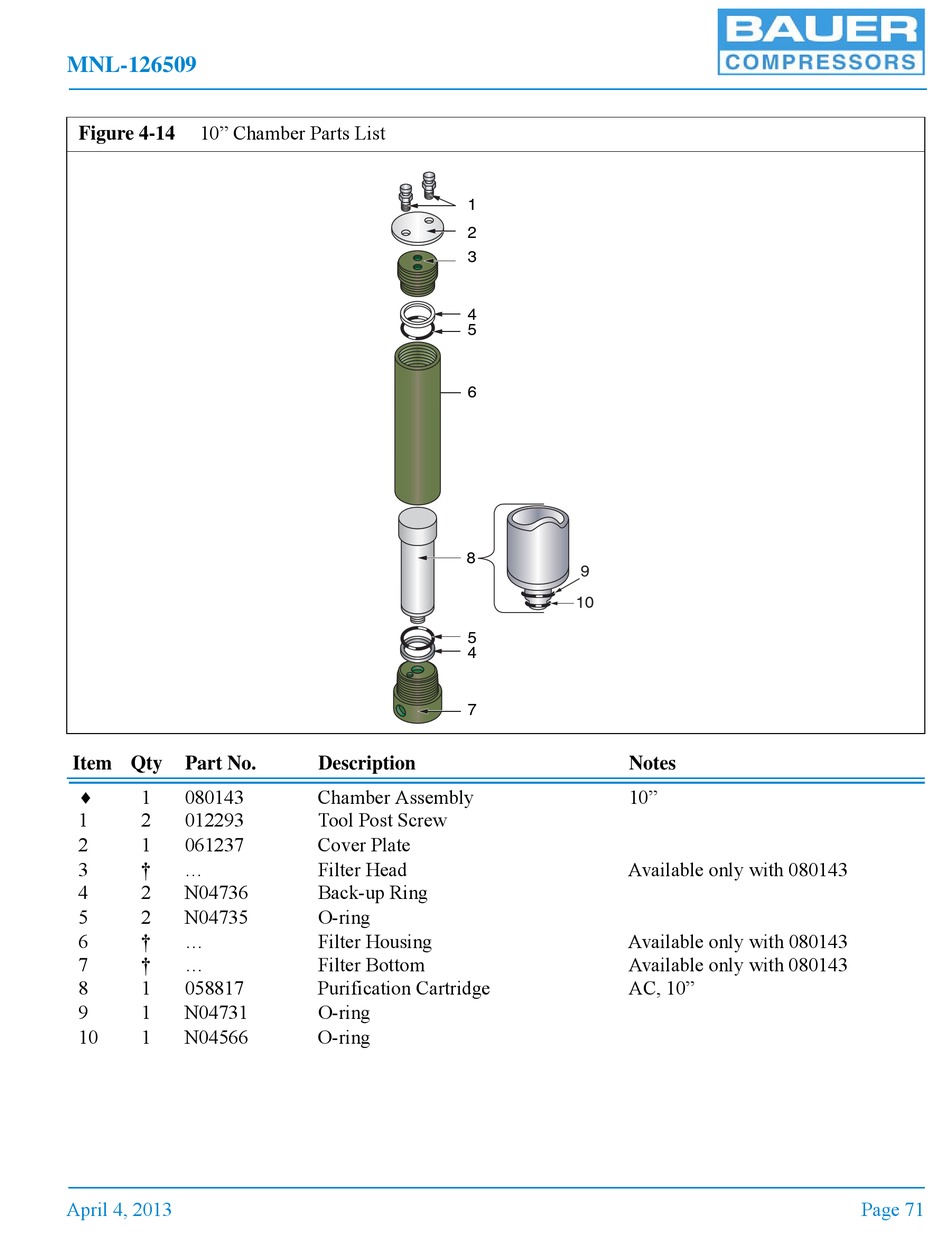

10" Chamber Parts List

Figure 4-14
Item Qty Part No.

1 080143
1 2 012293
2 1 061237
3 † ...
4 2 N04736
5 2 N04735
6 † ...
7 † ...
8 1 058817
9 1 N04731
10 1 N04566
April 4, 2013
1
2
3
4
5
6
8
5
4
7
Description
Chamber Assembly
Tool Post Screw
Cover Plate
Filter Head
Back-up Ring
O-ring
Filter Housing
Filter Bottom
Purification Cartridge
O-ring
O-ring
9
10
Notes
10"
Available only with 080143
Available only with 080143
Available only with 080143
AC, 10"
Page 71
