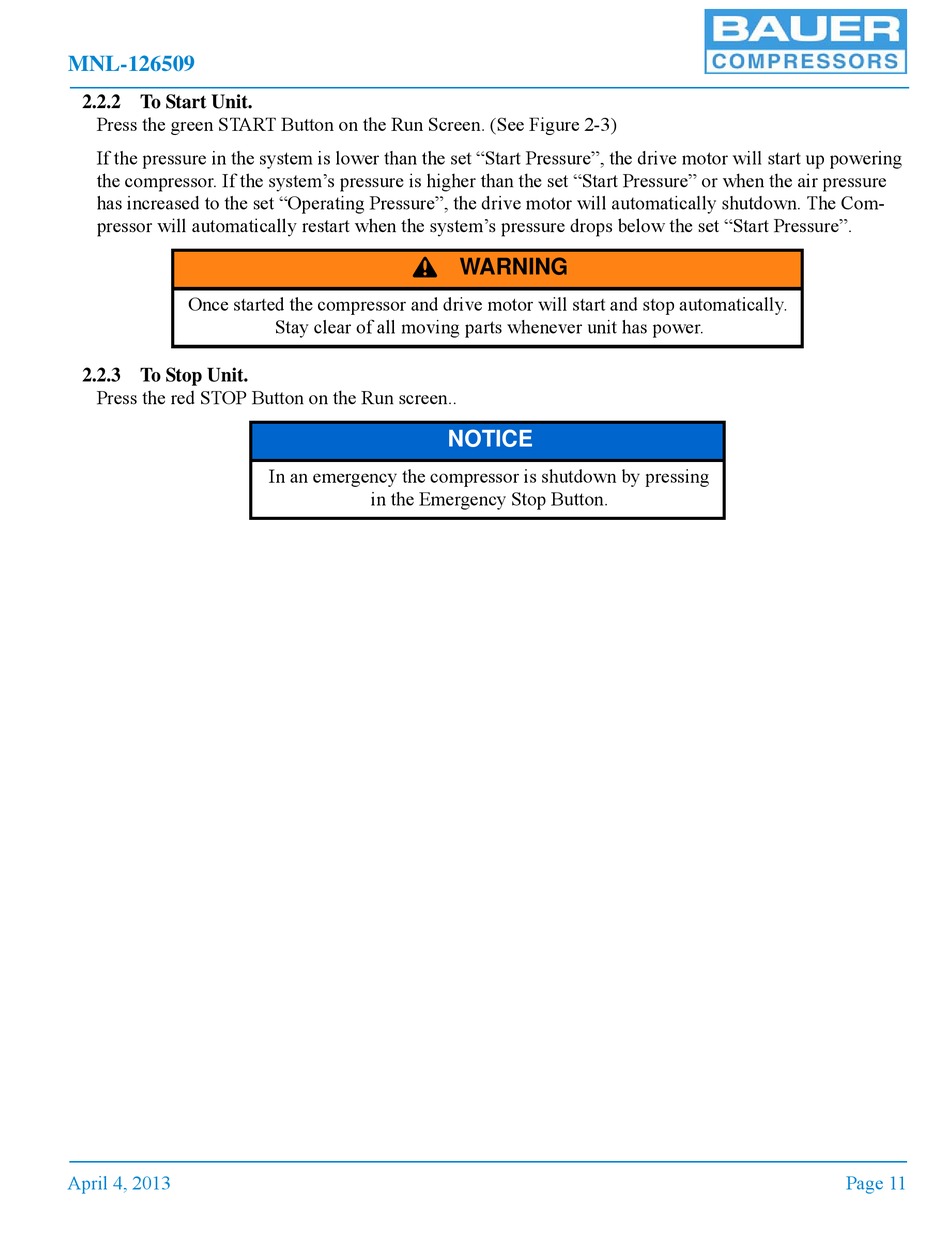

To Start Unit - Bauer Mini Verticus Instruction Manual And Replacement Parts List

MNL-126509

2.2.2 To Start Unit.

Press the green START Button on the Run Screen. (See Figure 2-3)
If the pressure in the system is lower than the set "Start Pressure", the drive motor will start up powering
the compressor. If the system's pressure is higher than the set "Start Pressure" or when the air pressure
has increased to the set "Operating Pressure", the drive motor will automatically shutdown. The Com-
pressor will automatically restart when the system's pressure drops below the set "Start Pressure".
Once started the compressor and drive motor will start and stop automatically.
2.2.3 To Stop Unit.
Press the red STOP Button on the Run screen..
April 4, 2013
^ WARNING
Stay clear of all moving parts whenever unit has power.
In an emergency the compressor is shutdown by pressing
in the Emergency Stop Button.
NOTICE
Page 11
