MNL-126509

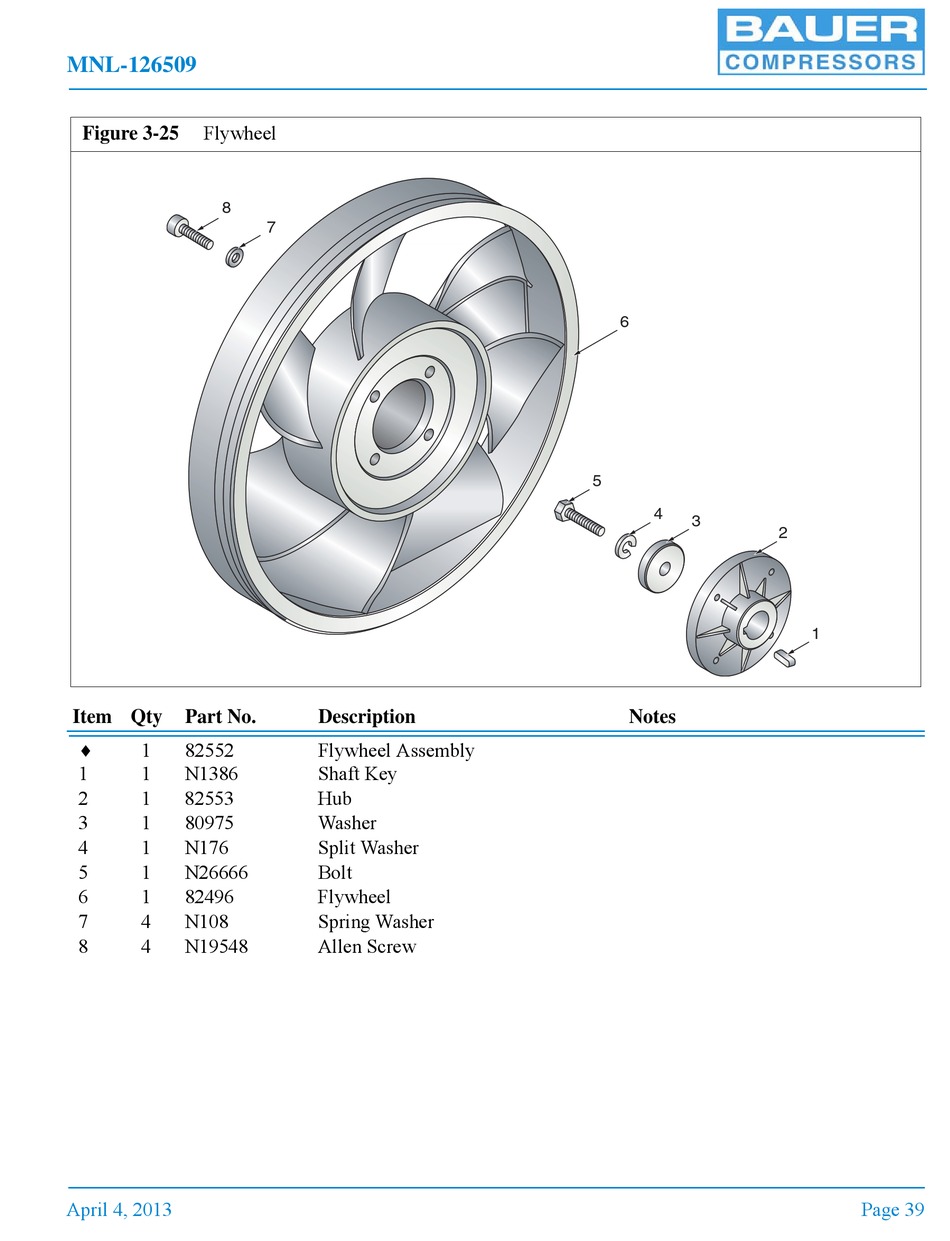

Flywheel
Figure 3-25
8
Item Qty
Part No.
1
82552
1
1
N1386
2
1
82553
3
1
80975
4
1
N176
5
1
N26666
6
1
82496
7
4
N108
8
4
N19548
April 4, 2013
7
Description
Flywheel Assembly
Shaft Key
Hub
Washer
Split Washer
Bolt
Flywheel
Spring Washer
Allen Screw
6
5
4
3
Notes
2
1
Page 39
