Bauer Mini Verticus Instruction Manual And Replacement Parts List page 104

Electrical Panel, Interior, 50 Hz

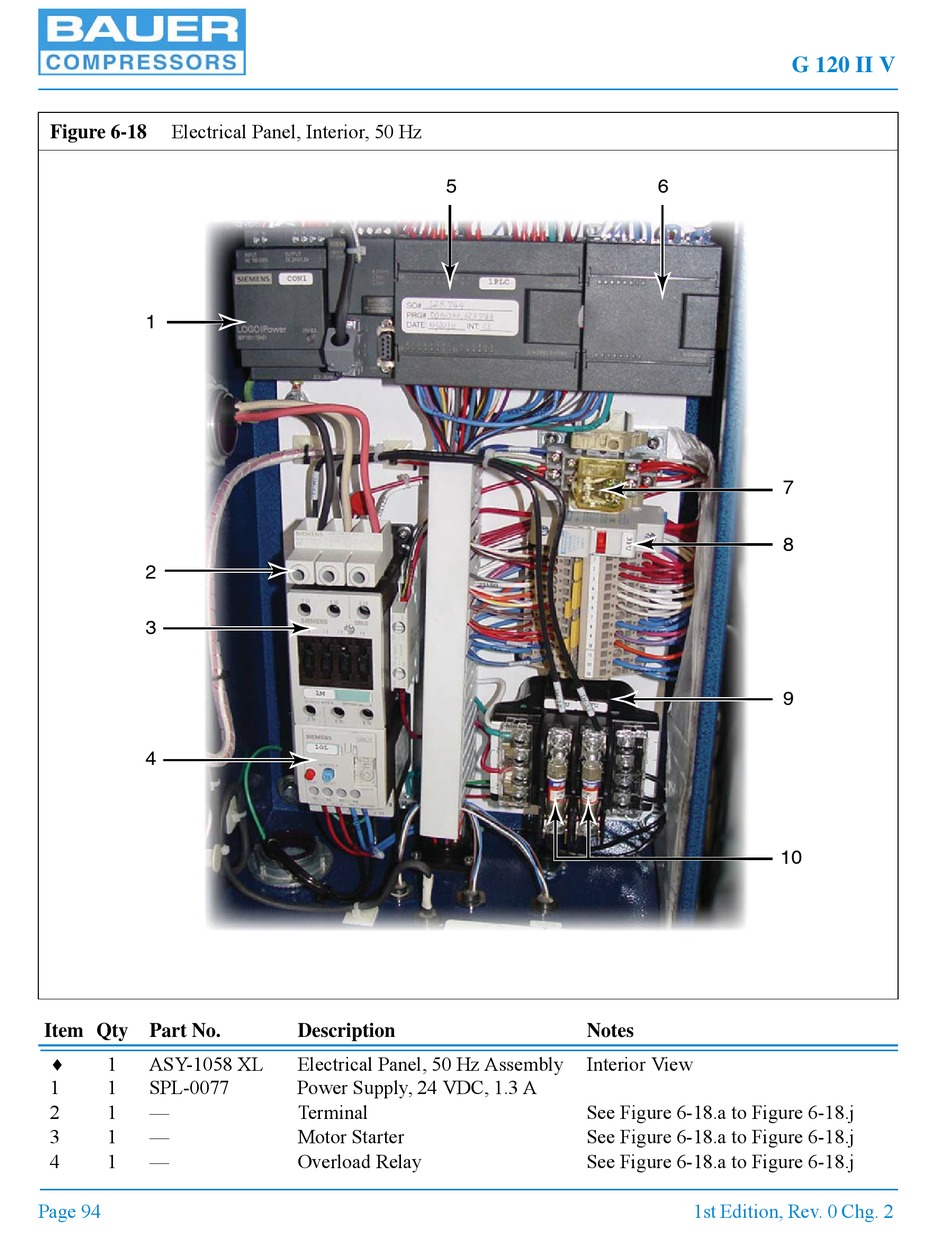

Figure 6-18
1
2
3
4
Item Qty Part No.

1 ASY-1058 XL
1 1 SPL-0077
2 1 —
3 1 —
4 1 —
Page 94
5
Description
Electrical Panel, 50 Hz Assembly
Power Supply, 24 VDC, 1.3 A
Terminal
Motor Starter
Overload Relay
6
Notes
Interior View
See Figure 6-18.a to Figure 6-18.j
See Figure 6-18.a to Figure 6-18.j
See Figure 6-18.a to Figure 6-18.j
1st Edition, Rev. 0 Chg. 2
G 120 II V
