MNL-126509

ACD Valve and Manifold Assembly

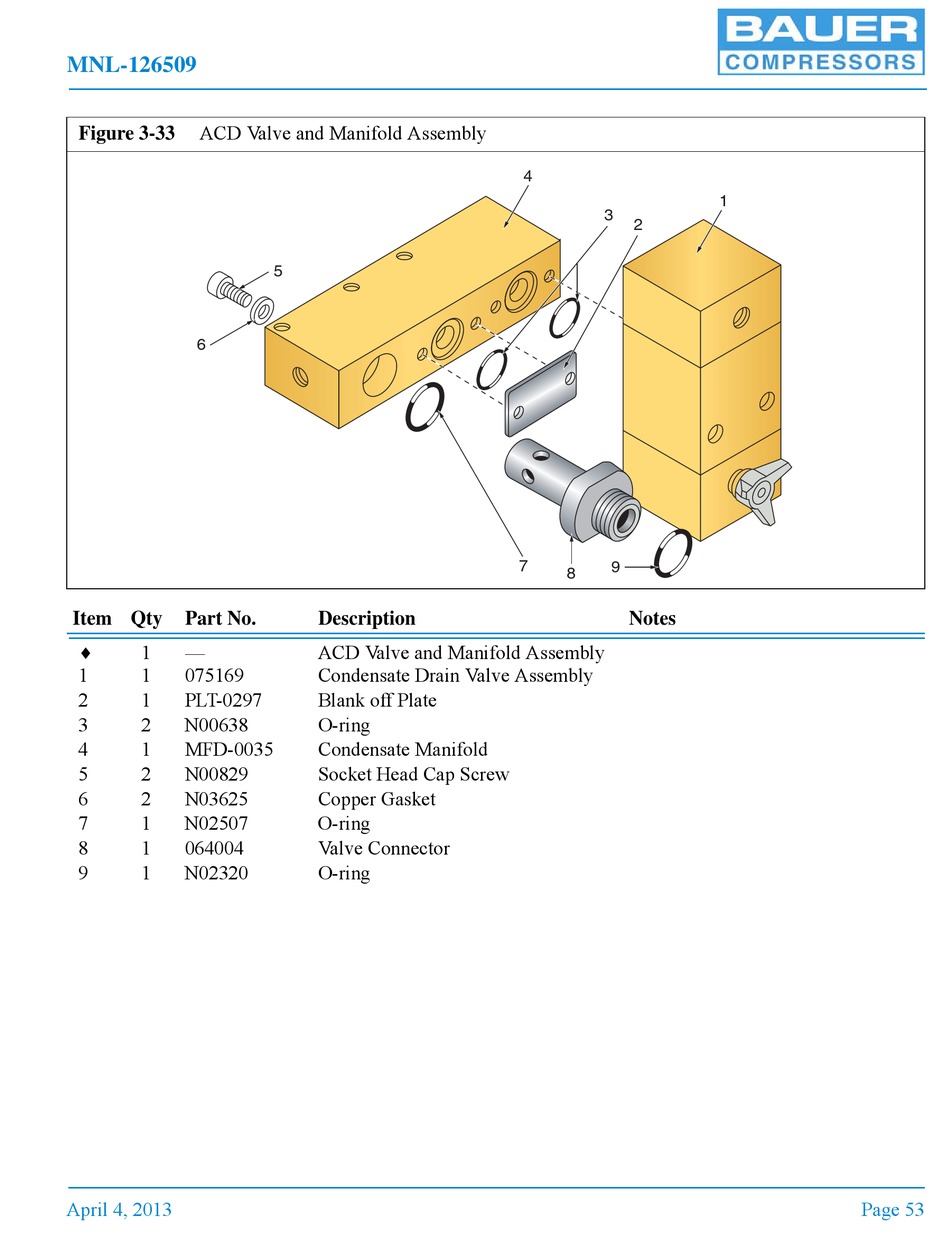

Figure 3-33
6
Item Qty Part No.

1 —
1 1 075169
2 1 PLT-0297
3 2 N00638
4 1 MFD-0035
5 2 N00829
6 2 N03625
7 1 N02507
8 1 064004
9 1 N02320
April 4, 2013
5
Description
ACD Valve and Manifold Assembly
Condensate Drain Valve Assembly
Blank off Plate
O-ring
Condensate Manifold
Socket Head Cap Screw
Copper Gasket
O-ring
Valve Connector
O-ring
4
3
2
7
9
8
Notes
1
Page 53
