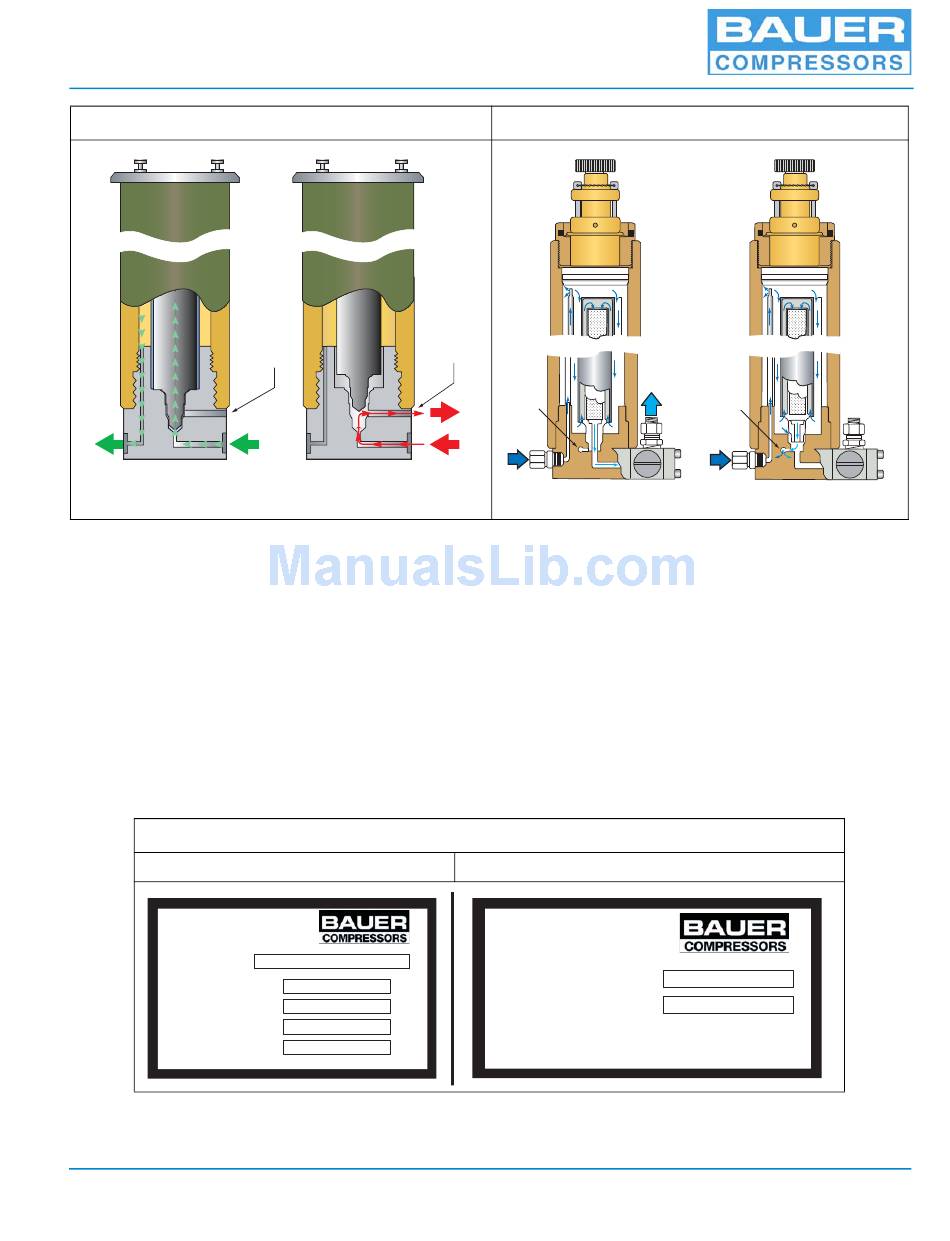

Cartridge Safety Venting
Figure 4-1
Cartridge Installed
correctly

4.1.3 Manual Condensate Drainage

The condensate must be drained from the oil and water separator before changing any cartridge, before
beginning each filling procedure and in the absence of an Automatic Condensate Drain (ACD) system,
every fifteen minutes during the filling procedure. This is done by slowly opening the condensate drain
valves. They are opened approximately 1/3 of a turn to the left and held open until the condensate is com-
pletely drained. The condensate drain valves close by spring pressure but if necessary may be tightened
by hand to ensure they are completely air tight.
4.1.4 Model, Serial Number and Part Number Identification
4.1.4.1 Compressor Dataplate
The model number, date of manufacture and serial number can be found on the compressor unit identifi-
cation plate in the main electrical enclosure and frame.
Figure 4-3
Purification System
PURIFICATION
SYSTEM
MODEL NO.
MAX. PRESSURE
AIR PROCESSED
O-RING
BACK-UP RING
April 4, 2013
Safety
Safety
Vent
No Cartridge Installed
or Installed incorrectly
Purification System Dataplates (typical)
psig
cu. ft.
LBL-0191
Figure 4-2
Vent
Safety
Vent
Cartridge Installed
Correctly
Cartridge Installation
CARTRIDGE TO BE
INSTALLED
CARTRIDGE FOR
CARTRIDGE NO.
1328 Azalea Garden Road - Norfolk Virginia 23502-1944
Phone: (757) 855-6006 Fax: (757) 855-8224
P0 & P31 Safety Venting
Safety
Vent
No Cartridge or Installed
Incorrectly
LBL-0044
Page 57
