Bauer Mini Verticus Instruction Manual And Replacement Parts List page 46

2nd Stage Valves and Valve Head

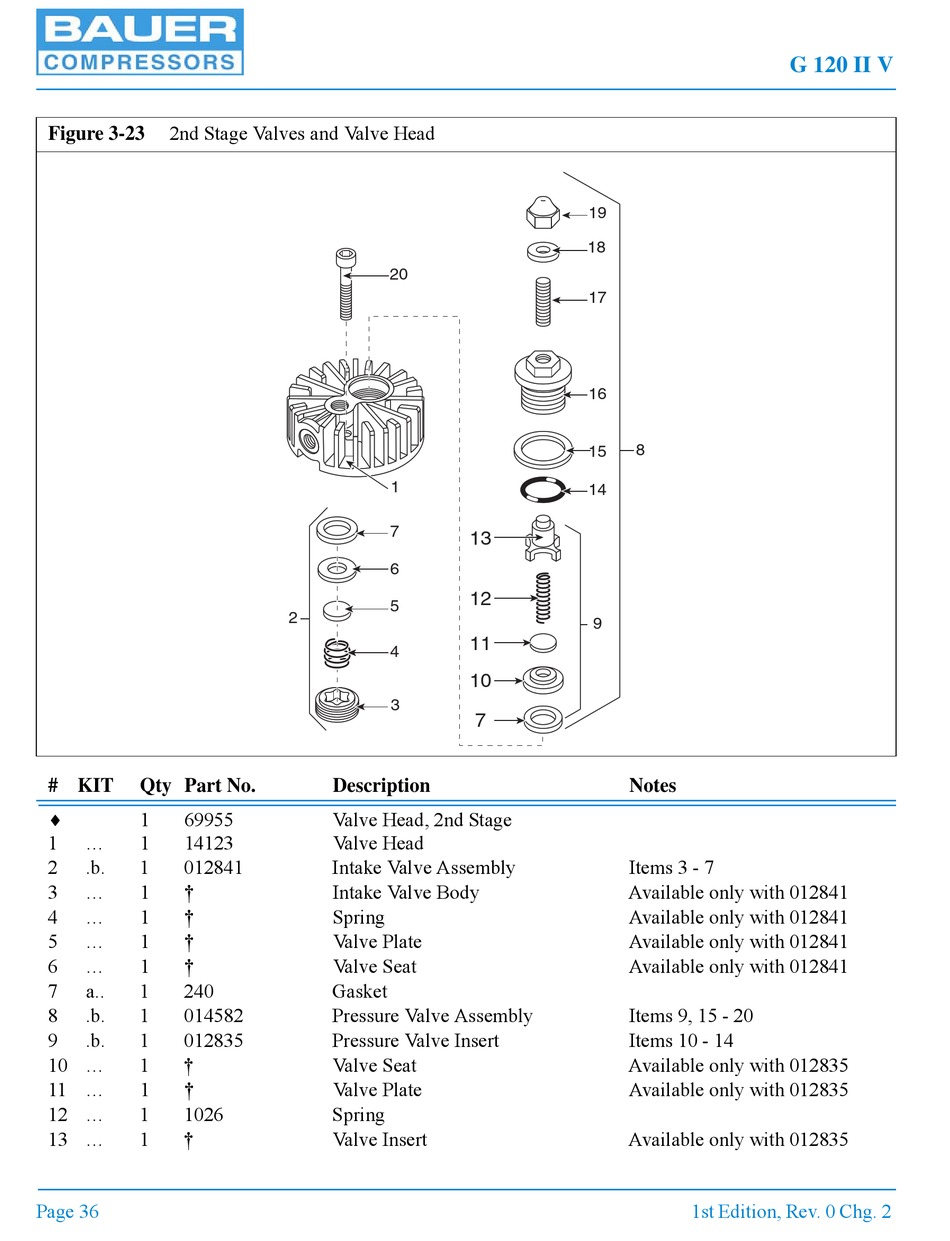

Figure 3-23
# KIT Qty Part No.

1 69955
1 ... 1 14123
2 .b. 1 012841
3 ... 1 †
4 ... 1 †
5 ... 1 †
6 ... 1 †
7 a.. 1 240
8 .b. 1 014582
9 .b. 1 012835
10 ... 1 †
11 ... 1 †
12 ... 1 1026
13 ... 1 †
Page 36
20
1
7
13
6
12
5
2
11
4
10
3
Description
Valve Head, 2nd Stage
Valve Head
Intake Valve Assembly
Intake Valve Body
Spring
Valve Plate
Valve Seat
Gasket
Pressure Valve Assembly
Pressure Valve Insert
Valve Seat
Valve Plate
Spring
Valve Insert
19
18
17
16
8
15
14
9
7
Notes
Items 3 - 7
Available only with 012841
Available only with 012841
Available only with 012841
Available only with 012841
Items 9, 15 - 20
Items 10 - 14
Available only with 012835
Available only with 012835
Available only with 012835
G 120 II V
1st Edition, Rev. 0 Chg. 2
