8. Replace the Valve Head (7) on the cylinder and secure it with the Screws (8).
9. Reconnect the intake and pressure lines.
3.1.8.6 Removing the IK120 II C & G, 3rd Stage Valves

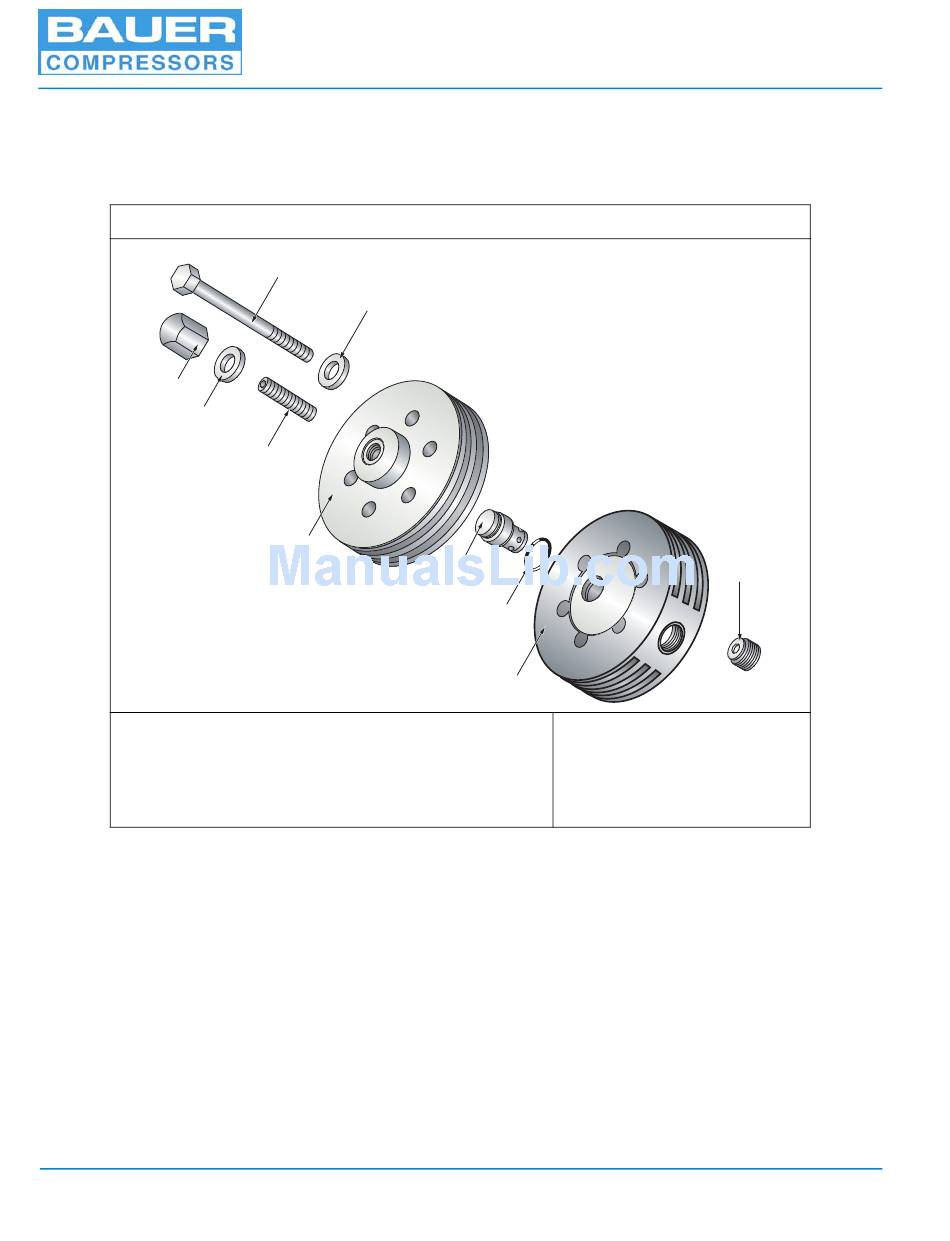

Figure 3-15
8
7
1. Intake Valve
2. Valve Head
3. O-ring
4. Pressure Valve
5. Valve Head Cover
1. Remove the intake and pressure lines from the Valve Head (2).
2. Remove the Cap Nut (8) and loosen Stud (6) three or four turns.
3. Remove the Screws (9) holding the Valve Head (2) onto the cylinder and take off it off along with
the Valve Head Cover (5).
4. Remove the Pressure Valve (4) by putting two screwdrivers into the removal groove of the pressure
valve body. See Figure 3-16. It may be necessary to loosen the valve body first by turning it with a
13 mm wrench used on the flat surfaces.
5. Insert two 8 mm diameter metal pins, any length, in the holes in the Valve Head and secure them in
a vise with the Valve Head on top of the vise. The Intake Valve (1) should be facing up.
6. Using the special valve tool (See Figure 3-13), remove the Intake Valve (1).
Page 26
IK120 II C & G, 3rd Stage Valve Head and Valves
9
10
6
5
4
3
2
6. Stud
7. Gasket
8. Cap Nut
9. Screw
10. Washer
G 120 II V
1
1st Edition, Rev. 0 Chg. 2
