10. Remove the EEPROM and replace the EEPROM protective cover.
11. Restore power and operate the unit.

6.4.5 Hourmeter

The panel is equipped with an Hourmeter. The Hourmeter is not resettable and used to monitor the run
hours of the compressor. It is powered by 120 VAC.
6.4.6 Transformer and Fuses
The Transformer is fitted with three fuses. The primary coil of the transformer has two fuses. The sec-
ondary coil of the transformer has one fuse. See Paragraph 6.9 to Paragraph 6.13 for the proper Bauer
Part Numbers.
April 4, 2013

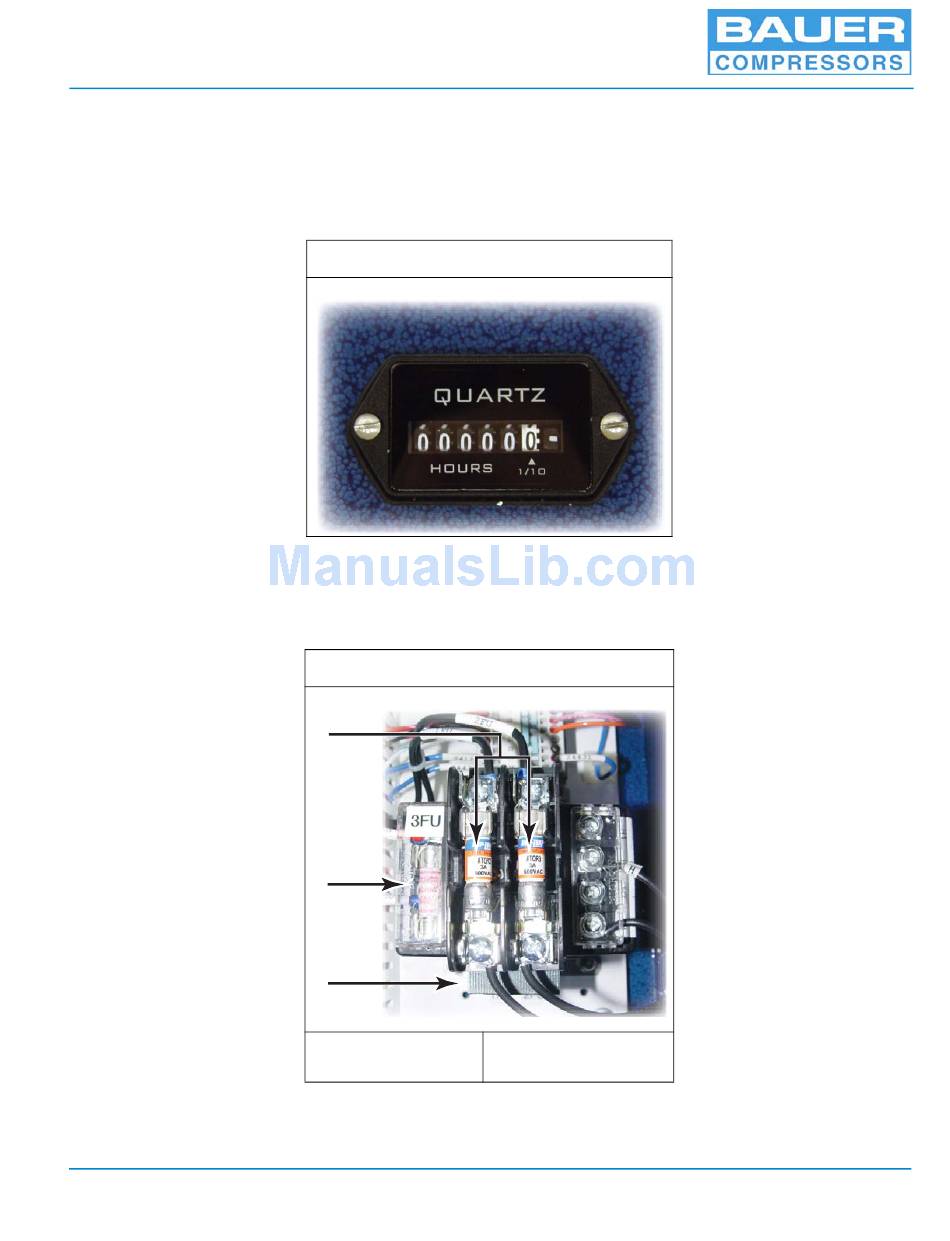

Hourmeter
Figure 6-5
Transformer and Fuses
Figure 6-6
3
2
1
1. Transformer
2. Secondary Fuse
3. Primary Fuses
Page 79
