3.1.6 Inter-stage Separator

An inter-stage separator is mounted on the compressor block. This separator is designed to remove oil
and water which accumulates due to the cooling of the medium after the compression process. Separation
is achieved by means of centrifugal action provided by a vortex plate (1).
The rapid depressurizing and repressurizing of the inter-stage separator during condensate drain-
ing subjects it to metallurgical stresses. To prevent catastrophic failure with the possibility of
damage, injury or death the inter-stage separator must be replaced after 85,000 load cycles. A
load cycle equals one depressurization- repressurization.
Page 20
Inter-stage Separator

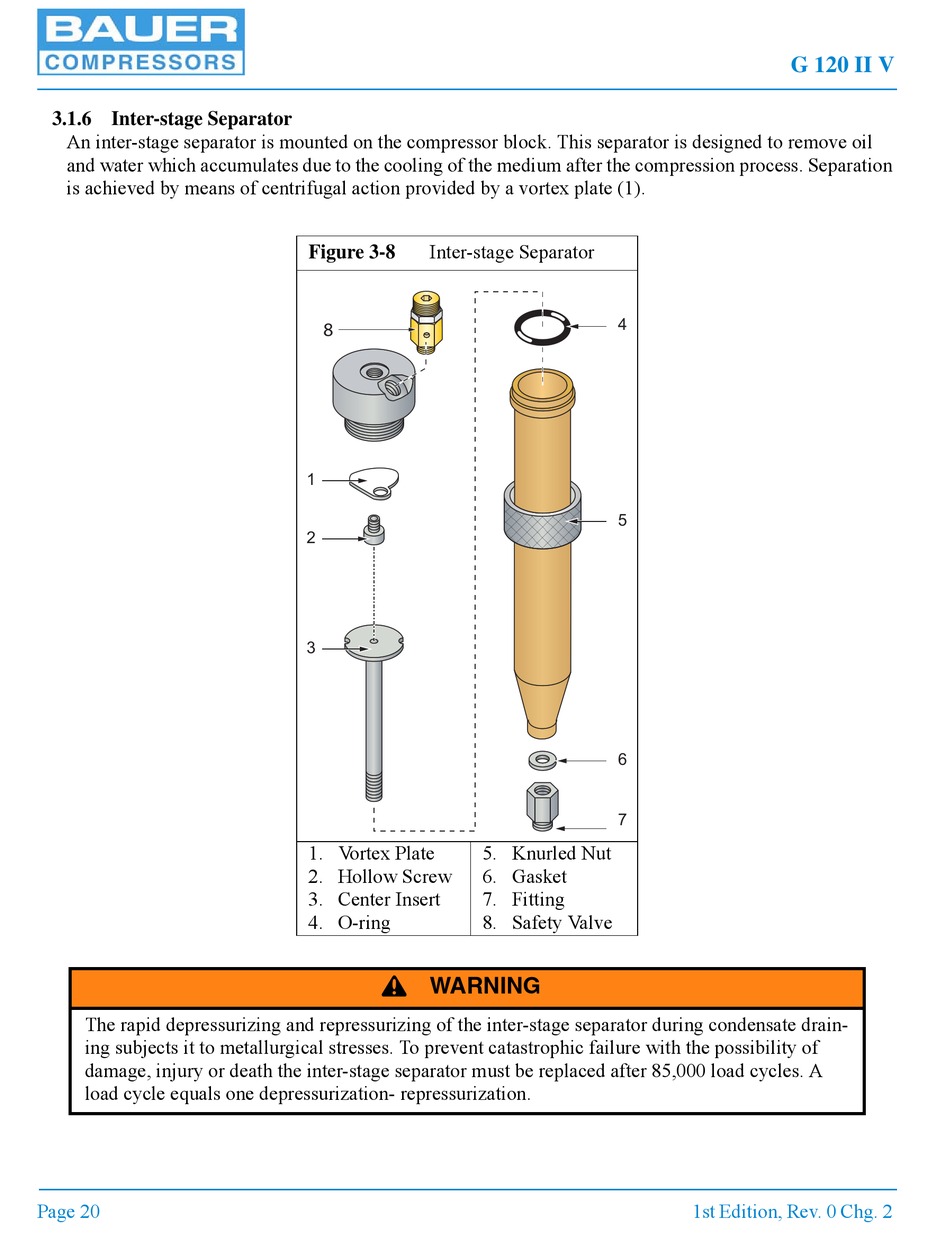

Figure 3-8
8
1
2
3
1. Vortex Plate 5. Knurled Nut
2. Hollow Screw 6. Gasket
3. Center Insert 7. Fitting
4. O-ring 8. Safety Valve
^ WARNING
G 120 II V
4
5
6
7
1st Edition, Rev. 0 Chg. 2
