Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
For Best Results, Use 2
5.0 Amp Hour Batteries
(Sold Separately)

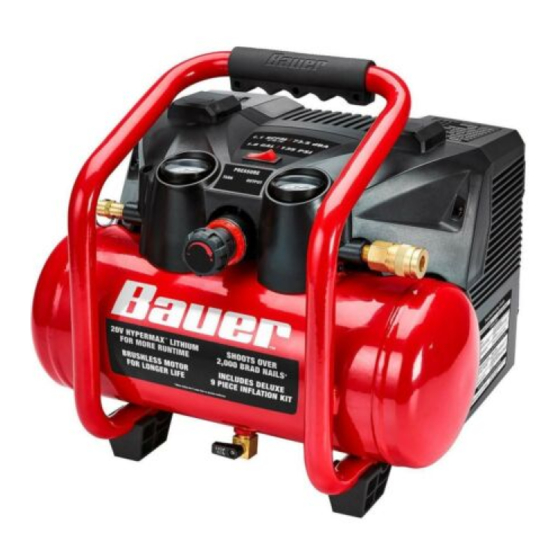

1.6 GALLON BRUSHLESS
AIR COMPRESSOR
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
20191C-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20j
57394
Advertisement
Related Manuals for Bauer 20191C-B
Summary of Contents for Bauer 20191C-B
- Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 20191C-B For Best Results, Use 2 5.0 Amp Hour Batteries...
-
Page 2: Table Of Contents
table of contents Safety ............2 Maintenance ..........10 Installation ..........6 Parts List and Diagram ......14 Specifications ..........6 Warranty ............ 16 Operation ............ 7 WARninG SyMBOlS AnD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. - Page 3 3. personal safety c. Store an idle compressor out of the reach of children and do not allow persons a. Stay alert, watch what you are doing and unfamiliar with the compressor or these use common sense when operating this instructions to operate it.
- Page 4 18. Do not leave the tool unattended when the Place the Charger on a stable, solid, nonflammable Battery Pack is connected. Turn off the tool, surface (such as a stable metal workbench or and remove the Battery Pack before leaving. concrete floor) at least 1 foot away from all flammable objects, such as drapes or walls.
- Page 5 lithium Battery Safety Warnings litHiUM BAttERiES StORE A lARGE AMOUnt OF EnERGy AnD Will VEnt FiRE OR EXplODE iF MiStREAtED: 1. Keep Battery pack dry. 3. Charge Battery Pack only according to its Charger’s instructions. 2. DO nOt DO Any OF tHE FOllOWinG tO tHE BAttERy pAcK: 4.
-
Page 6: Safety
Specifications Battery Type Bauer 20V Li-Ion 57007 (sold separately) Charger Type Bauer 20V Li-Ion 63529, 63947 (sold separately) Air Outlet Size 1/4″ - 18 NPT Shut-off 135 PSI Air Pressure Restart 105 PSI Air Tank Capacity 1.6 Gallon Air Flow Capacity 1.1 SCFM @ 90 PSI... -
Page 7: Operation
Breaking in Air compressor 1. Turn Power Switch OFF 5. Let unit run for 30 minutes. Air will expel freely and remove battery pack. through the Drain Valve. 2. Fully open Drain Valve. 6. Turn Power Switch OFF. 3. Insert fully charged Battery Pack(s). 7. - Page 8 Air tools note: Consult air tool’s manual for needed accessories. 3. Use air tool as needed. 1. Make sure air tool’s throttle or switch is in OFF 4. When finished, turn Power Switch OFF. position. Thread air tool onto 1/4″ Plug. 5.
- Page 9 low pressure - large inflatables WARninG! tO pREVEnt SERiOUS inJURy: Wear 5. Insert Inflator into inflatable. AnSi-approved eye protection during use. 6. Set Regulator to 10 PSI. WARninG! tO pREVEnt SERiOUS inJURy AnD 7. Close Regulator when item is properly inflated. DEAtH FROM EXplOSiOn: Do not overinflate.
- Page 10 Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO pREVEnt SERiOUS inJURy FROM AcciDEntAl OpERAtiOn: turn the power Switch “OFF” and remove Battery pack(s) before performing any inspection, maintenance, or cleaning procedures. tO pREVEnt SERiOUS inJURy FROM AiR cOMpRESSOR FAilURE: Do not use damaged equipment.
-
Page 11: Maintenance
Draining Moisture from Air tank The Moisture Drain is located under the Tank. It must be used daily to release all trapped air and moisture from the Tank. Doing this will eliminate condensation and prevent tank corrosion. 1. Turn Power Switch OFF. 3. - Page 12 troubleshooting problem possible causes likely Solutions Compressor does 1. Tank(s) already pressurized. 1. No problem. Compressor will start when needed. not start or restart 2. Battery Pack not properly 2. Remove Battery Pack, make sure there are no connected. obstructions, reinsert the Battery Pack according to its shape (it should only fit one way), and press firmly until the Battery Pack locks in place.
- Page 13 plEASE READ tHE FOllOWinG cAREFUlly THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
-
Page 14: Parts List And Diagram
parts list and Diagram parts list part Description part Description Ball Needle Right Plug Tapered Adaptor Power Switch 1/4" Plug Front Shroud Tire Inflator Screw M4x10 1/4" to 1/8" Adaptor Pressure Gauge Tire Inflator Air Outlet Low Pressure Inflator Pressure Regulator Assembly 1/8"... - Page 15 Assembly Diagram Item 57394 For technical questions, please call 1-888-866-5797. Page 15...
- Page 16 limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
