Oil and Water Separator Parts List

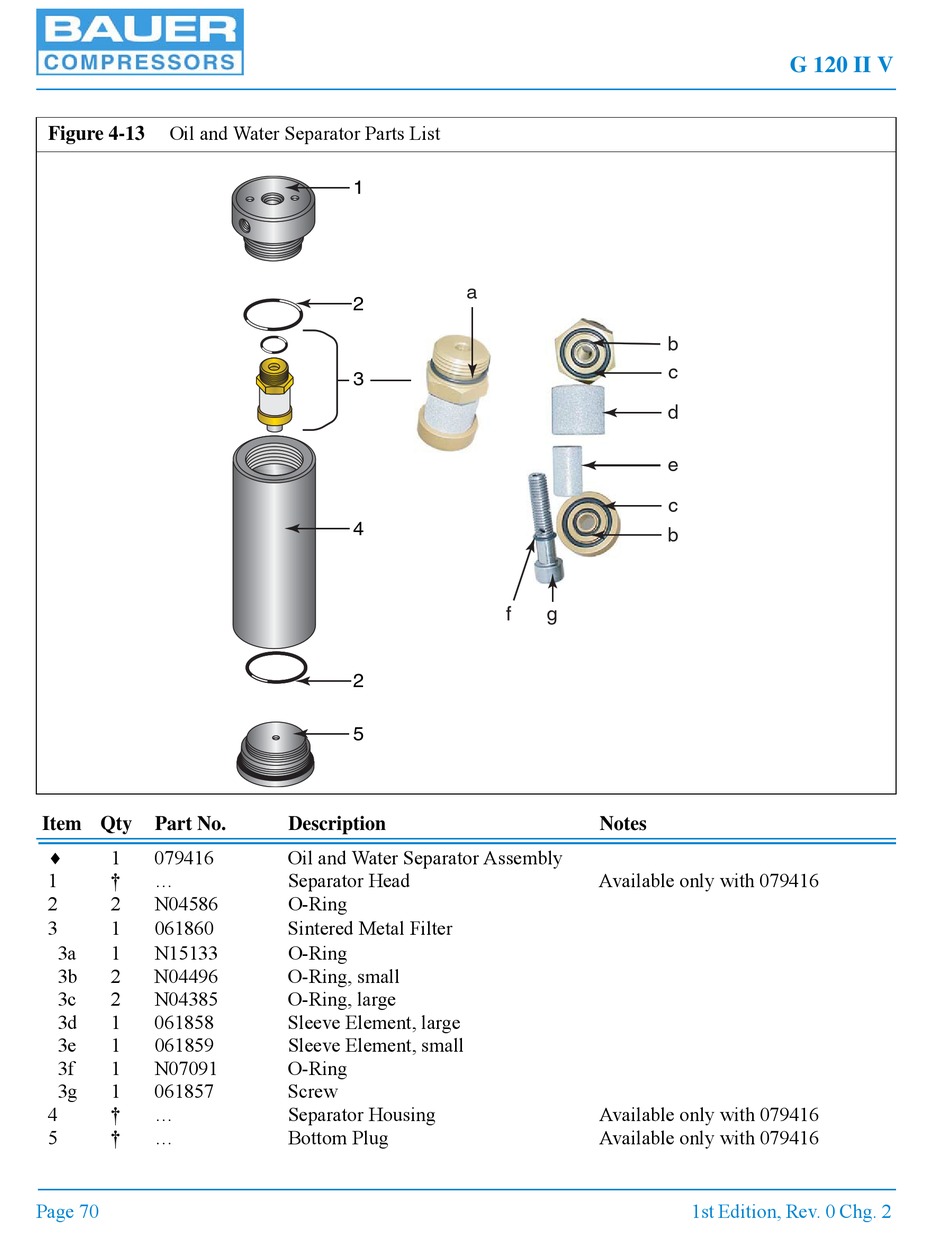

Figure 4-13
Item Qty Part No.

1 079416
1 † ...
2 2 N04586
3 1 061860
3a 1 N15133
3b 2 N04496
3c 2 N04385
3d 1 061858
3e 1 061859
3f 1 N07091
3g 1 061857
4 † ...
5 † ...
Page 70
1
a
2
3
4
2
5
Description
Oil and Water Separator Assembly
Separator Head
O-Ring
Sintered Metal Filter
O-Ring
O-Ring, small
O-Ring, large
Sleeve Element, large
Sleeve Element, small
O-Ring
Screw
Separator Housing
Bottom Plug
b
c
d
e
c
b
f g
Notes
Available only with 079416
Available only with 079416
Available only with 079416
G 120 II V
1st Edition, Rev. 0 Chg. 2
