Bauer Mini Verticus Instruction Manual And Replacement Parts List page 50

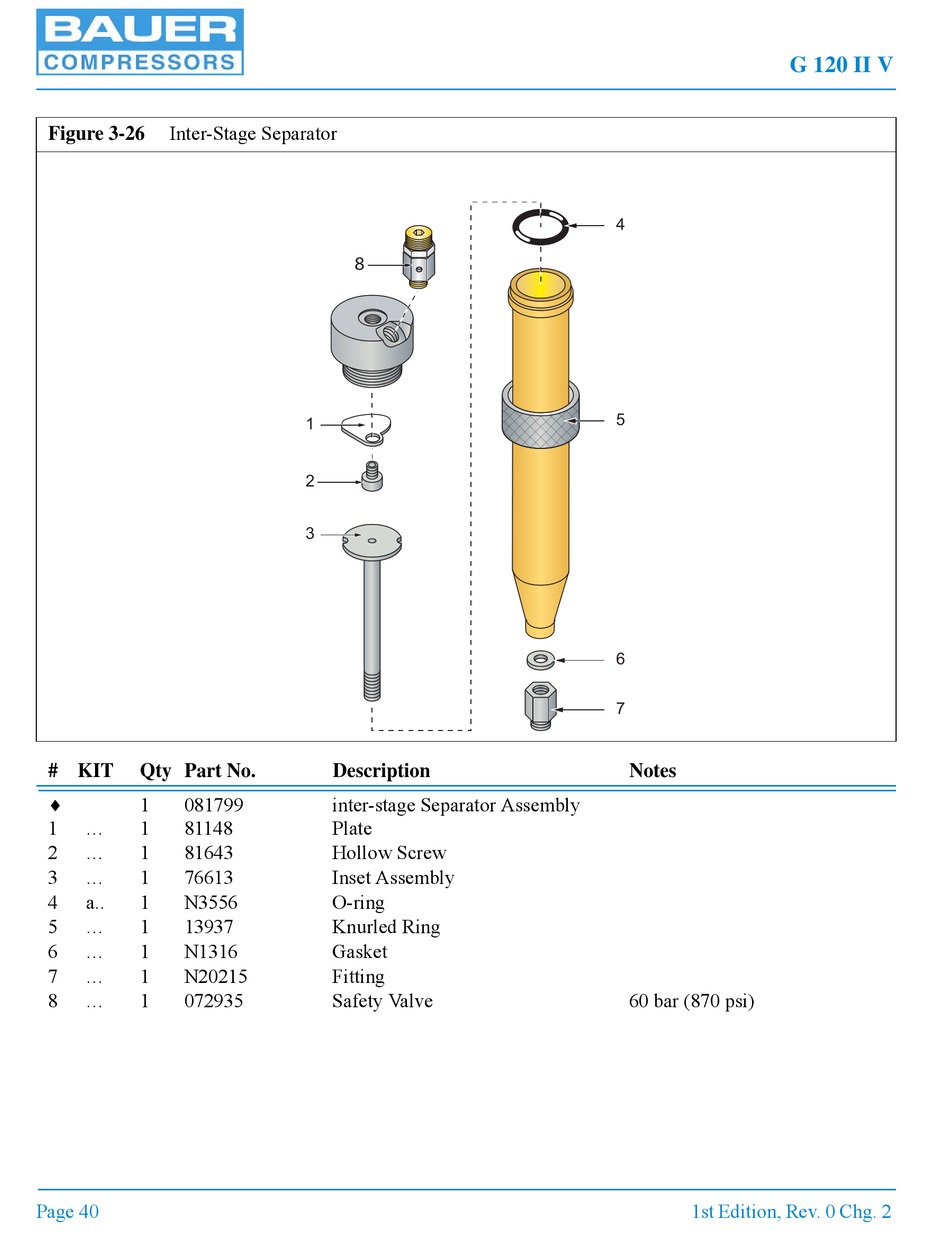

Inter-Stage Separator
Figure 3-26
# KIT Qty Part No.

1 081799
1 ... 1 81148
2 ... 1 81643
3 ... 1 76613
4 a.. 1 N3556
5 ... 1 13937
6 ... 1 N1316
7 ... 1 N20215
8 ... 1 072935
Page 40
8
1
2
3
Description
inter-stage Separator Assembly
Plate
Hollow Screw
Inset Assembly
O-ring
Knurled Ring
Gasket
Fitting
Safety Valve
G 120 II V
4
5
6
7
Notes
60 bar (870 psi)
1st Edition, Rev. 0 Chg. 2
