5 - 46 BRAKES
DISASSEMBLY AND ASSEMBLY (Continued)

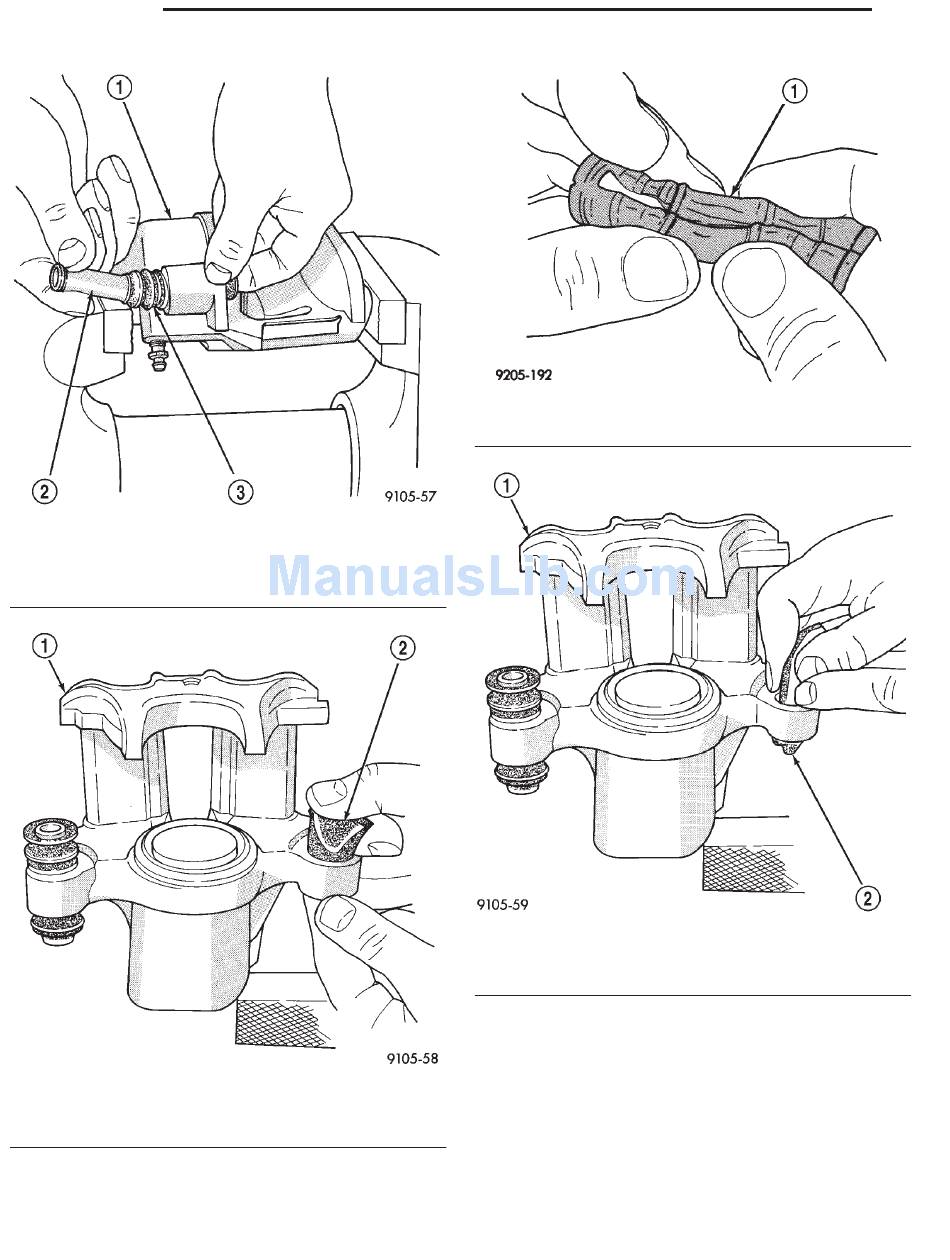

Fig. 86 Removing Inner Sleeve From Bushing
1 – CALIPER
2 – SLEEVE
3 – BUSHING
Fig. 87 Removing Bushing From Caliper
1 – CALIPER
2 – BUSHING
(6) Holding convoluted boot end of bushing with
one hand, push steel sleeve bushing through boot
Fig. 88 Folded Caliper Guide Pin Bushing
1 – CALIPER GUIDE PIN BUSHING
Fig. 89 Installing Caliper Guide Pin Bushing
1 – CALIPER
2 – BUSHING
until one end of bushing is fully seated into seal
groove on one end of sleeve (Fig. 91).
(7) Holding sleeve in place, work other end of
bushing over end of sleeve and into the seal grove on
sleeve (Fig. 92). Be sure other end of bushing did not
come out of seal grove in sleeve.
(8) When the sleeve is seated properly into the
bushing, the sealed for life sleeve/bushing can be
held between your fingers and easily slid back and
LH
