LH
DISASSEMBLY AND ASSEMBLY (Continued)

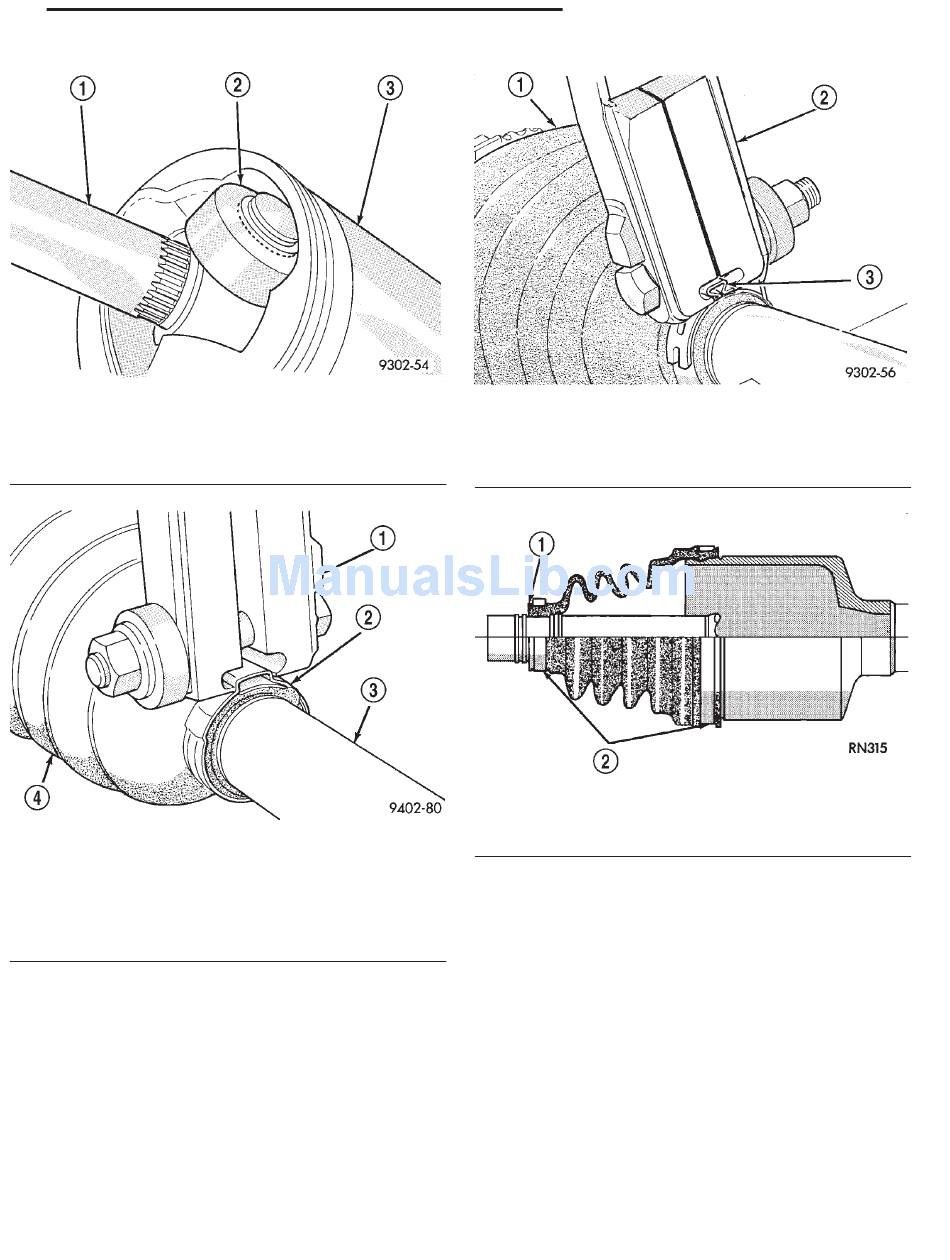

Fig. 28 Spider Assembly Installed In Housing
1 – INTERCONNECTING SHAFT
2 – SPIDER ASSEMBLY
3 – TRIPOD JOINT HOUSING
Fig. 29 Crimping Tool Installed On Sealing Boot
1 – SPECIAL TOOL C-4975
2 – SEALING BOOT CLAMP
3 – INTERCONNECTING SHAFT
4 – SEALING BOOT
(8) Position the sealing boot into the tripod hous-
ing retaining groove (Fig. 31). Install seal boot
retaining clamp evenly on sealing boot.
Clamp
DIFFERENTIAL AND DRIVELINE
Fig. 30 Sealing Boot Retaining Clamp Installed
1 – SEALING BOOT
2 – SPECIAL TOOL C-4975
3 – CLAMP BRIDGE
Fig. 31 Boot and Clamp Positioning
1 – POSITION ON FLAT BETWEEN LOCATING SHOULDERS
2 – CLAMPS
(9) Clamp sealing boot onto tripod housing using
Crimper, Special Tool C-4975 and the following pro-
cedure. Place crimping tool C-4975 over bridge of
clamp. Tighten nut on crimping tool C-4975 until
jaws on tool are closed completely together, face to
face.
(10) Install the driveshaft back into the vehicle.
See "Driveshaft Removal and Installation" in this
section of the service manual for the required drive-
shaft installation procedure.
3 - 13
