Stratix Memory Board II
Board settings
DIP Switch
J38
J37
J24
J23
J11
SW1
DDR II DIMM – Insert the DDR II DIMM carefully if needed. Try not to flex the
board if possible.
RS232 Serial Cable – Connect one end of the serial cable to the COM 1 port on
the PC and the other to the channel A RS232 connector (J14). This is required to
run the BTS user interface
Parallel cable - Connect one end of the parallel cable to the Parallel port on the PC
and the other end to the parallel port interface of the Byte Blaster cable. Connect
the other end of the Byte Blaster cable to the JTAG connector on the SMB2. If
you have a USB blaster you can use a USB cable. Connect the cable to the
Blaster and the cable to the JTAG interface.
Ethernet cable – Connect one end of the Ethernet cable to an active Ethernet port
and the other end to the RJ45 connector on the SMB2. This is required to verify
the Ethernet interface portion of the SMB2.
User DIP
J29
Switches

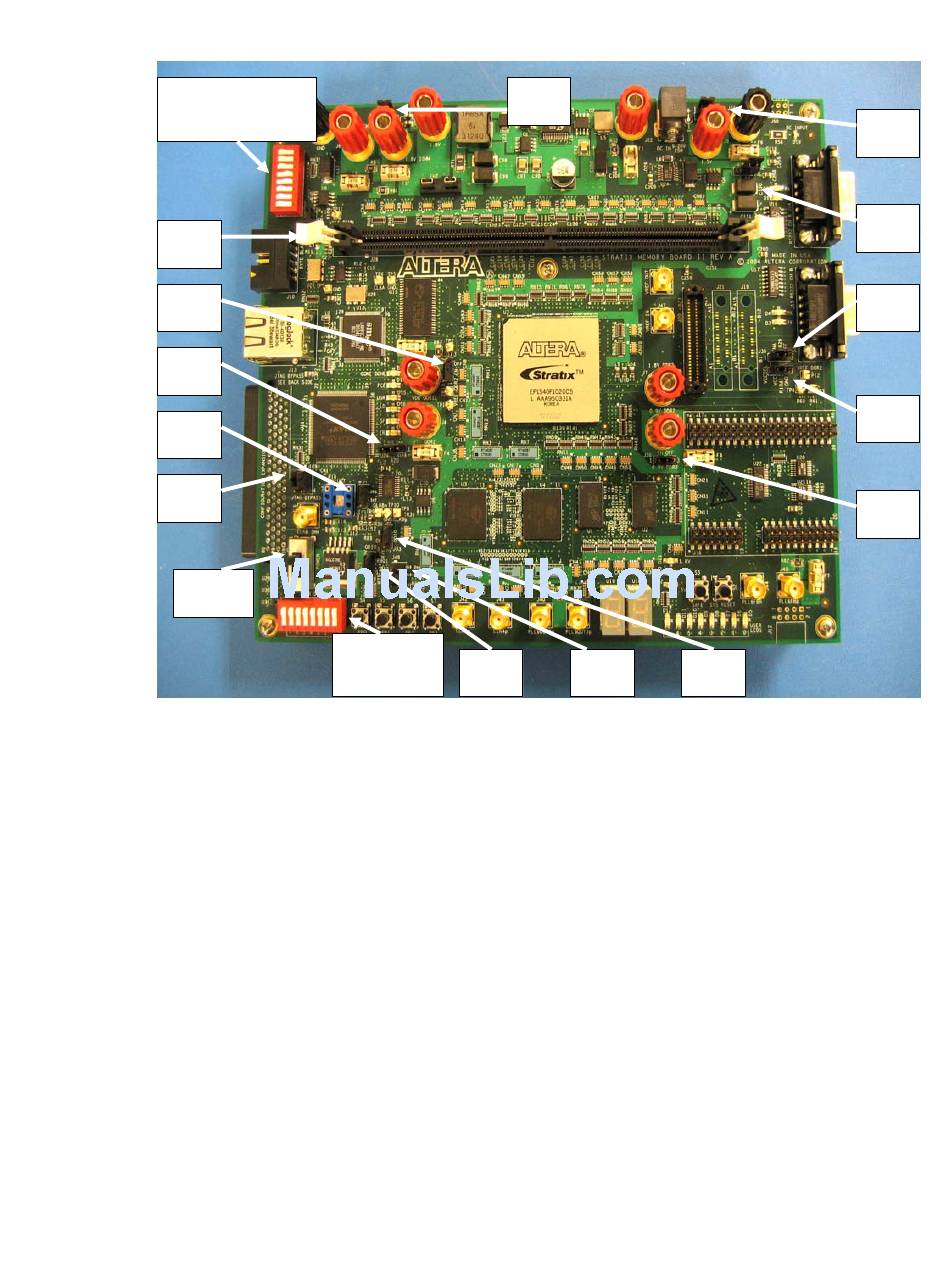

Figure 1 Switch and Jumper Locations
J34
J49 J33
User Guide
J35
J32
J39
J48
J36
