Appliance rear panel

FTMS support

The 5230 appliance can have expanded storage capability with up to four storage
shelves.
See " Appliance rear panel"

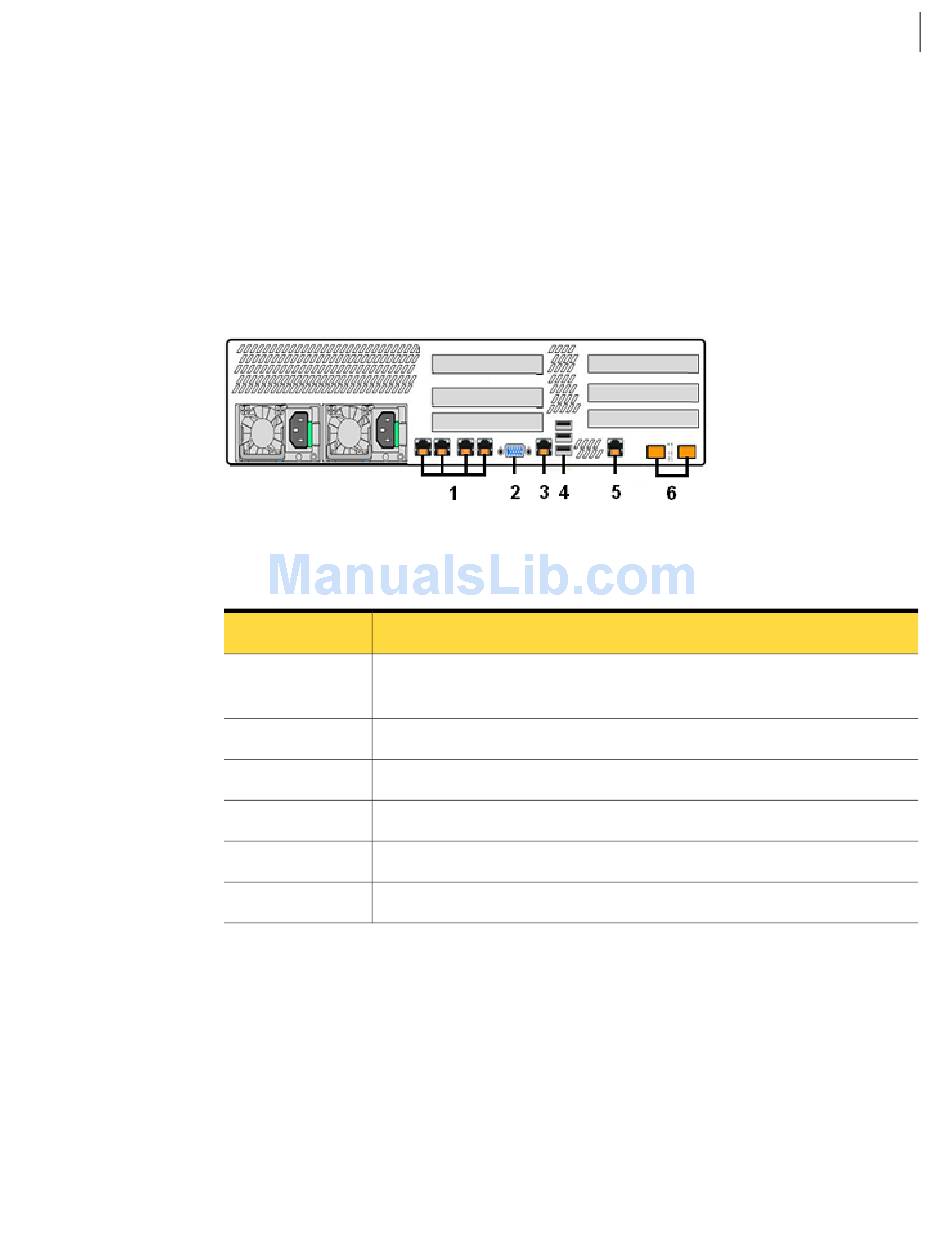

The following image shows the rear panel of the NetBackup appliance.
Table 1-1 lists the appliance rear panel components that are displayed in the image.
Appliance rear panel components
Table 1-1
Number Description
1 1Gb Ethernet ports (labeled from left to right, eth0/NIC1, eth1/NIC2,
eth2/NIC3, eth3/NIC4)
2 Video Graphics Array (VGA) port
3 Serial port (reserved)
4 USB ports (quantity 3)
5 Remote management port
6 10Gb Ethernet ports (labeled from left to right, eth4/NIC5 and eth5/NIC6)
See " Appliance dimensions and weight"
The NetBackup 5230 Appliance supports some Fibre Transport media server
(FTMS) configurations. Some NetBackup 5230 Appliance configurations do not
support FTMS. You need to understand the difference between Initiator and Target
FC ports to verify that cable connections are correct.
NetBackup 5230 Appliance configurations D and E are shown. These configurations
support FTMS. The yellow port (1) is the Target port. Blue ports are Initiator ports.
on page 11.
on page 13.
