Product Overview; Appliance Front Panel; Chapter 1 Product Overview - Symantec NetBackup 5230 Maintenance Manual

Product overview

This chapter includes the following topics:
■
■
■
■
■
■
■

Appliance front panel

The following sections describe the physical features of the NetBackup 5230
appliance.
The disks in Slots 0 and 1 provide the operating system for the appliance. The
NetBackup 5230 appliance contains eight data storage disks in slots 4 through 11.
Disks that have 1-TB formatted storage capacity provide a RAID6 group and 4-TB
of storage. You can also use 3-TB disks for 14-TB of storage.

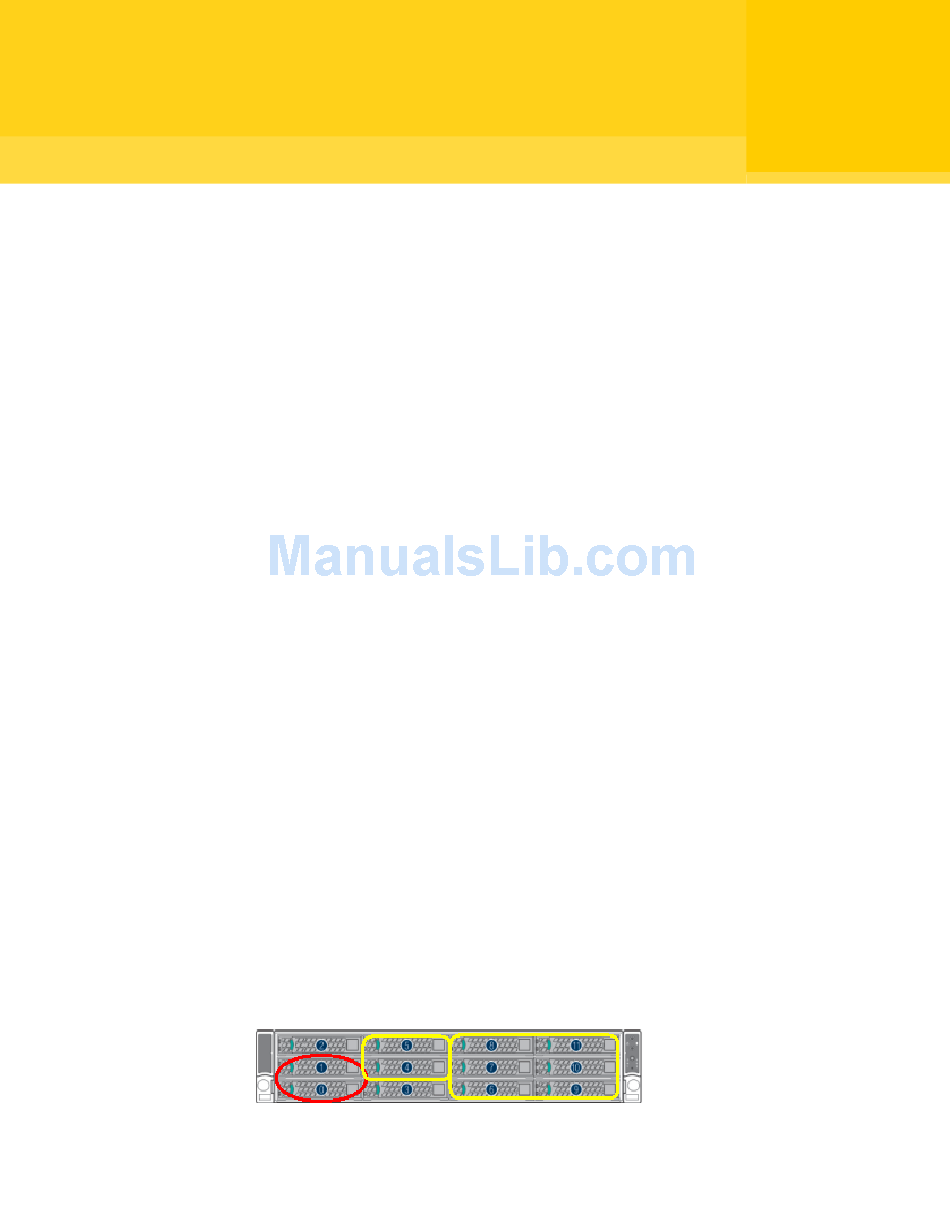

The following image shows the storage disks, circled in yellow. The two operating
system disks are circled in red. The hot spare is in slot 11 in the upper right corner
of the front panel.
Appliance front panel
Appliance rear panel
FTMS support
Appliance dimensions and weight
Symantec Storage Shelf description
Symantec Storage Shelf dimensions and weight
NetBackup 5230 documentation
