In Configuration D the blue ports on the cards in slots 2 and 4 are Initiator ports. In
Configuration E the blue ports on the cards in slots 2, 3, and 4 are Initiator ports.
Fibre Channel cards that support FTMS are installed in PCIe slots 5 and 6. The
cards in the other slots cannot be used for FTMS.

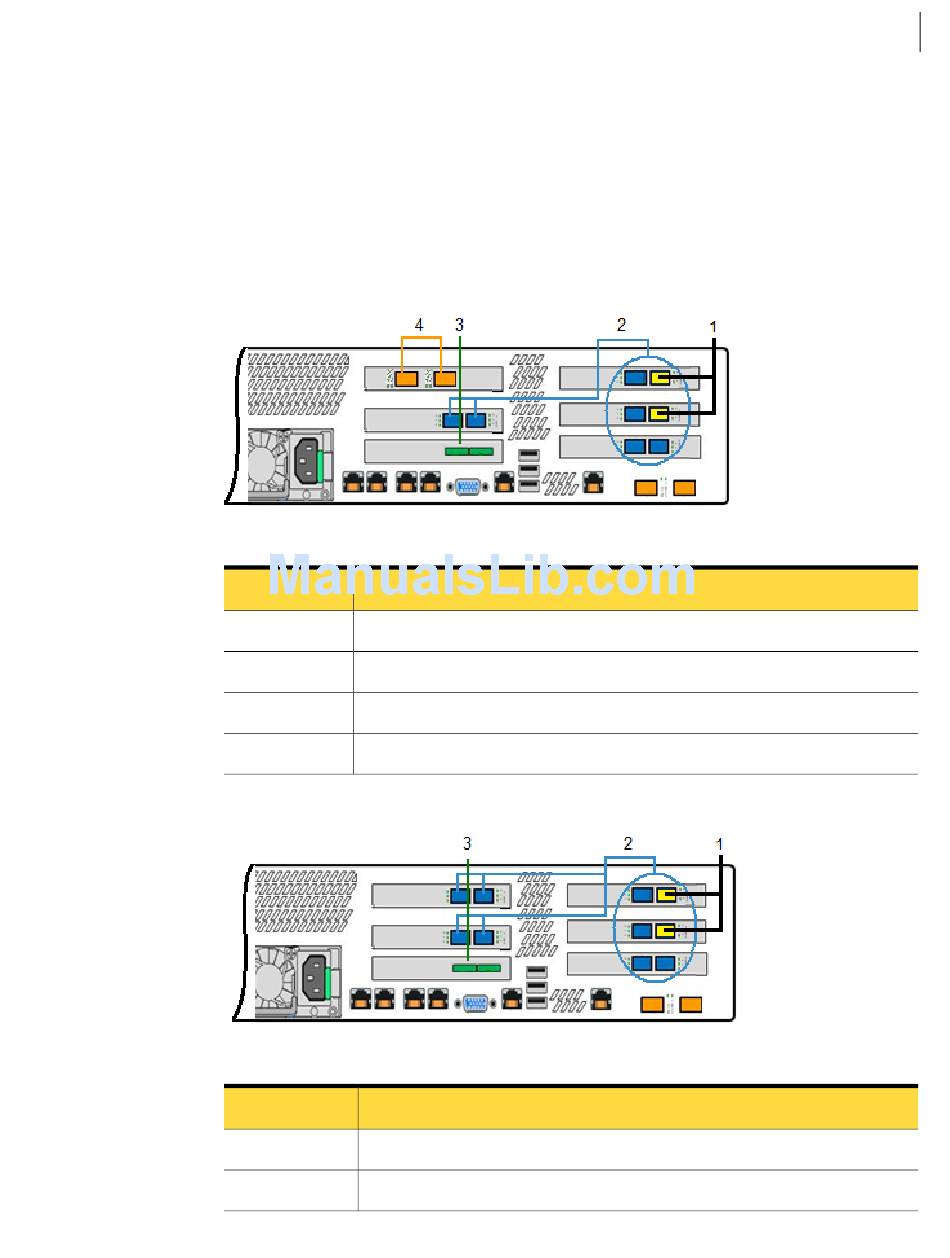

The following images and tables show the D and the E configurations.
NetBackup 5230 Appliance configuration D
Figure 1-1
NetBackup 5230 Appliance configuration D components
Table 1-2
Number Component
1 Target ports on FC cards
2 Initiator ports on FC cards
3 SAS RAID ports
4 10 Gb Ethernet ports
NetBackup 5230 Appliance configuration E
Figure 1-2
NetBackup 5230 Appliance configuration E components
Table 1-3
Number Component
1 Target ports on FC cards
2 Initiator ports on FC cards
Product overview 12
FTMS support
