8Gb FC HBA LEDs

1Gb port LED indications
Table 2-3
LED location State
1 Off
Solid Green
Flashes Green
2 Off
Solid Amber
Solid Green
An 8Gb FC HBA card connects the appliance to other network and storage devices.
The card provides two FC ports for tape transport. By using the Fibre Channel tape
out card, data can be exported from the appliance to a tape library for offline storage.
Each port contains a Receive (RX) LED (1) and a Transmit (TX) LED (2). These
LEDs show the type of input or output through each port.

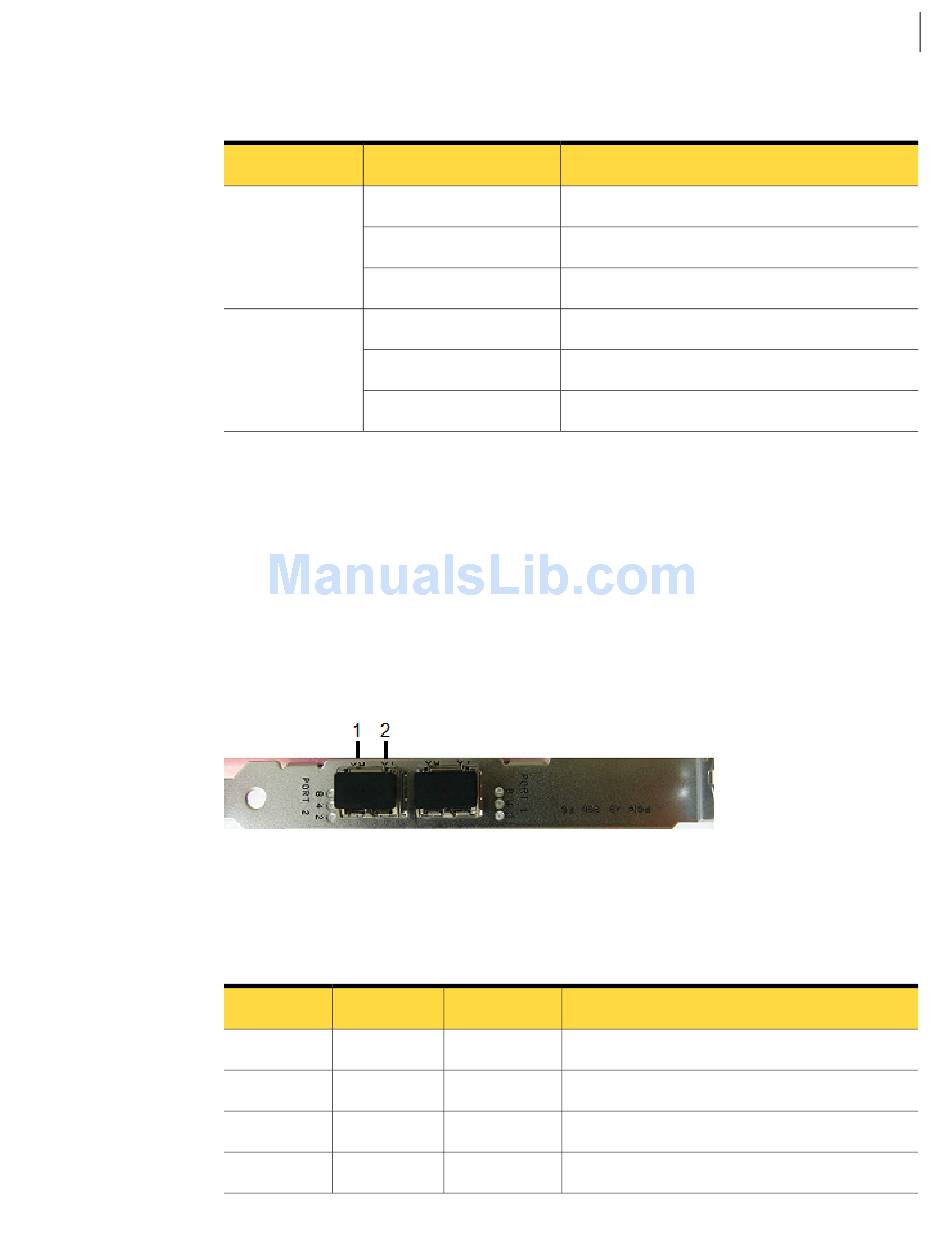

8Gb FC HBA ports
Figure 2-4
Each port on the 8Gb FC HBA card has three data transfer rate LEDs. The LEDs
are labeled "8", "4", and "2" to correspond to the rate of data transfer (8Gbit/s,
4Gbit/s, or 2Gbit/s).
8Gb FC HBA data transfer rate LED descriptions
Table 2-4
8 - Yellow 4 - Green
Off Off
Off Off
Off On, Flashes
On, Flashes Off
Description
No LAN connection
Connected to LAN
Transmit/receive activity occurs
10-Mbps connection
100-Mbps connection
1000-Mbps connection
2 - Amber Description
Off Turn off.
On, Flashes Data transfers at a rate of 2 Gbit/s.
Off Data transfers at a rate of 4 Gbit/s.
Off Data transfers at a rate of 8 Gbit/s.
LED status indicators 19
8Gb FC HBA LEDs
