Symantec NetBackup 5230 Maintenance Manual page 14

Front panel components (continued)
Table 1-4
Number
3
4
5

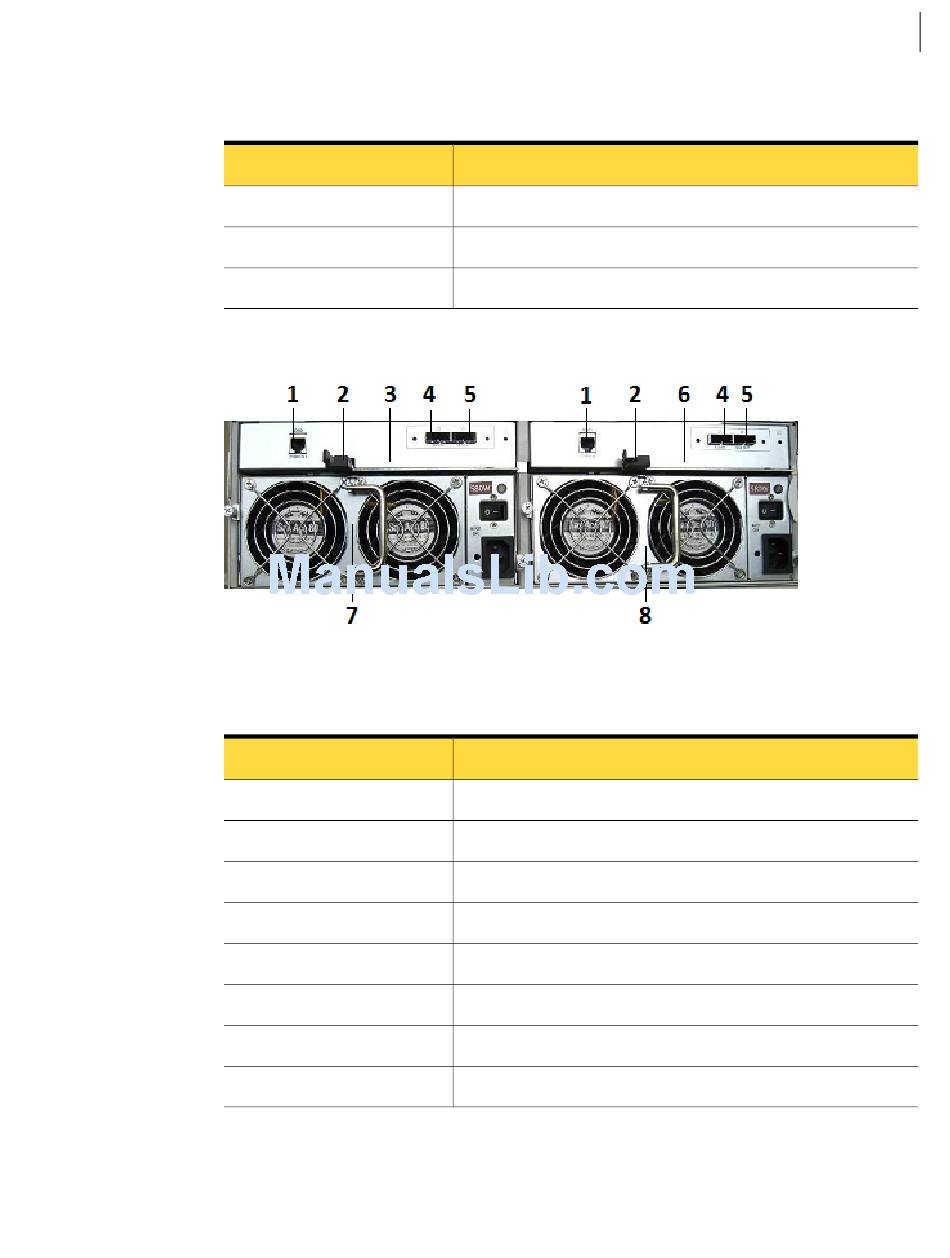

The following image shows the rear panel.
The following table describes the components of the rear panel.
Rear panel components
Table 1-5
Number
1
2
3
4
5
6
7
8
See "Symantec Storage Shelf dimensions and weight"
Description
Disk status LED
Power/activity LED
Slot 16 - hot spare
Description
Serial port (not to be used without Symantec approval)
I/O module release latch
I/O module #1
SAS_IN port
SAS_OUT port
I/O module #2
Power supply and fans #1
Power supply and fans #2
Product overview
Symantec Storage Shelf description
on page 15.
14
