Appliance Ethernet port LEDs

LED functions and indicators (continued)
Table 2-2
Number Description
4 Cold reset button
5 NIC4 activity LED
6 NIC3 activity LED
7 NMI button (This button triggers a nonmaskable interrupt. All server data is lost.)
8 NIC1 activity LED
9 NIC2 activity LED
10 Appliance status LED
See "Appliance Ethernet port LEDs"
Each Ethernet port on the rear panel of the appliance has two LEDs. These LEDs
indicate the status and the transmission rate of the network connection. The following

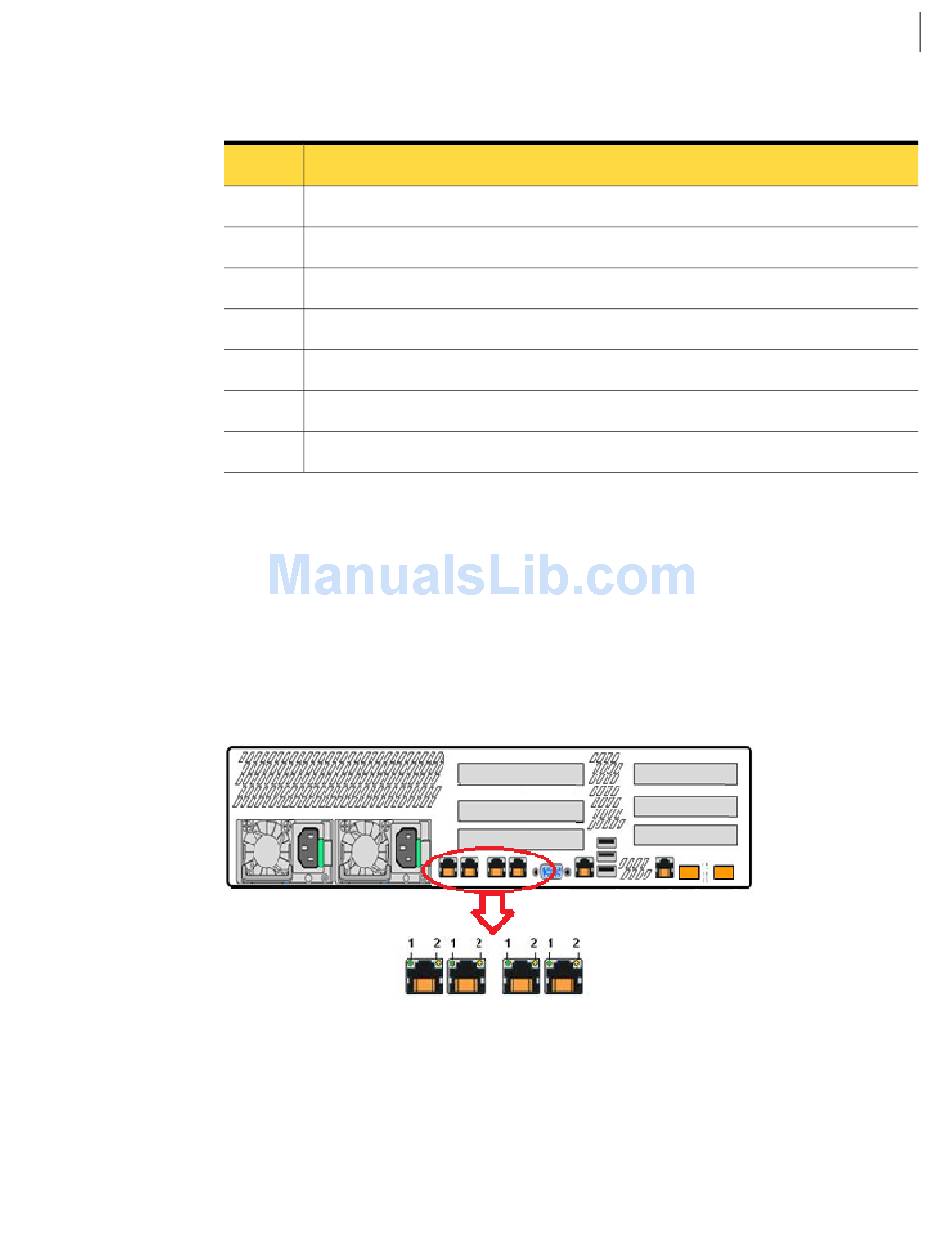

image shows the 1Gb Ethernet port LEDs.
1 Gb port LEDs
Figure 2-3
The following table lists the 1 Gb Ethernet port LED indications.
Appliance Ethernet port LEDs
on page 18.
LED status indicators 18
