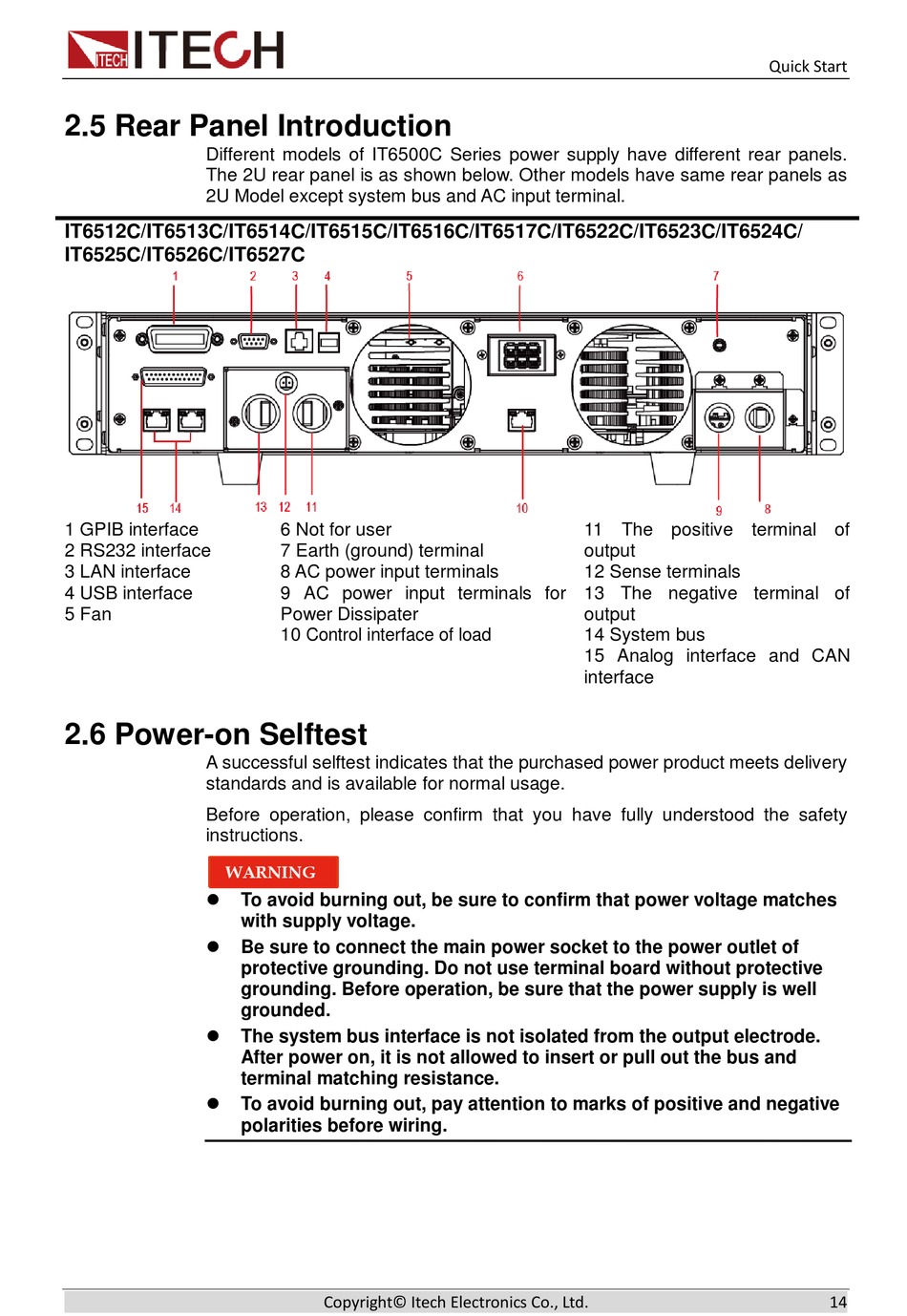

2.5 Rear Panel Introduction
Different models of IT6500C Series power supply have different rear panels.
The 2U rear panel is as shown below. Other models have same rear panels as
2U Model except system bus and AC input terminal.
IT6512C/IT6513C/IT6514C/IT6515C/IT6516C/IT6517C/IT6522C/IT6523C/IT6524C/
IT6525C/IT6526C/IT6527C
1 GPIB interface
2 RS232 interface
3 LAN interface
4 USB interface
5 Fan
2.6 Power-on Selftest
A successful selftest indicates that the purchased power product meets delivery
standards and is available for normal usage.
Before operation, please confirm that you have fully understood the safety
instructions.
6 Not for user
7 Earth (ground) terminal
8 AC power input terminals
9 AC power input terminals for
Power Dissipater
10 Control interface of load
To avoid burning out, be sure to confirm that power voltage matches
with supply voltage.
Be sure to connect the main power socket to the power outlet of
protective grounding. Do not use terminal board without protective
grounding. Before operation, be sure that the power supply is well
grounded.
The system bus interface is not isolated from the output electrode.
After power on, it is not allowed to insert or pull out the bus and
terminal matching resistance.
To avoid burning out, pay attention to marks of positive and negative
polarities before wiring.
Copyright© Itech Electronics Co., Ltd.
11 The positive terminal of
output
12 Sense terminals
13 The negative terminal of
output
14 System bus
15 Analog interface and CAN
interface
Quick Start
14
