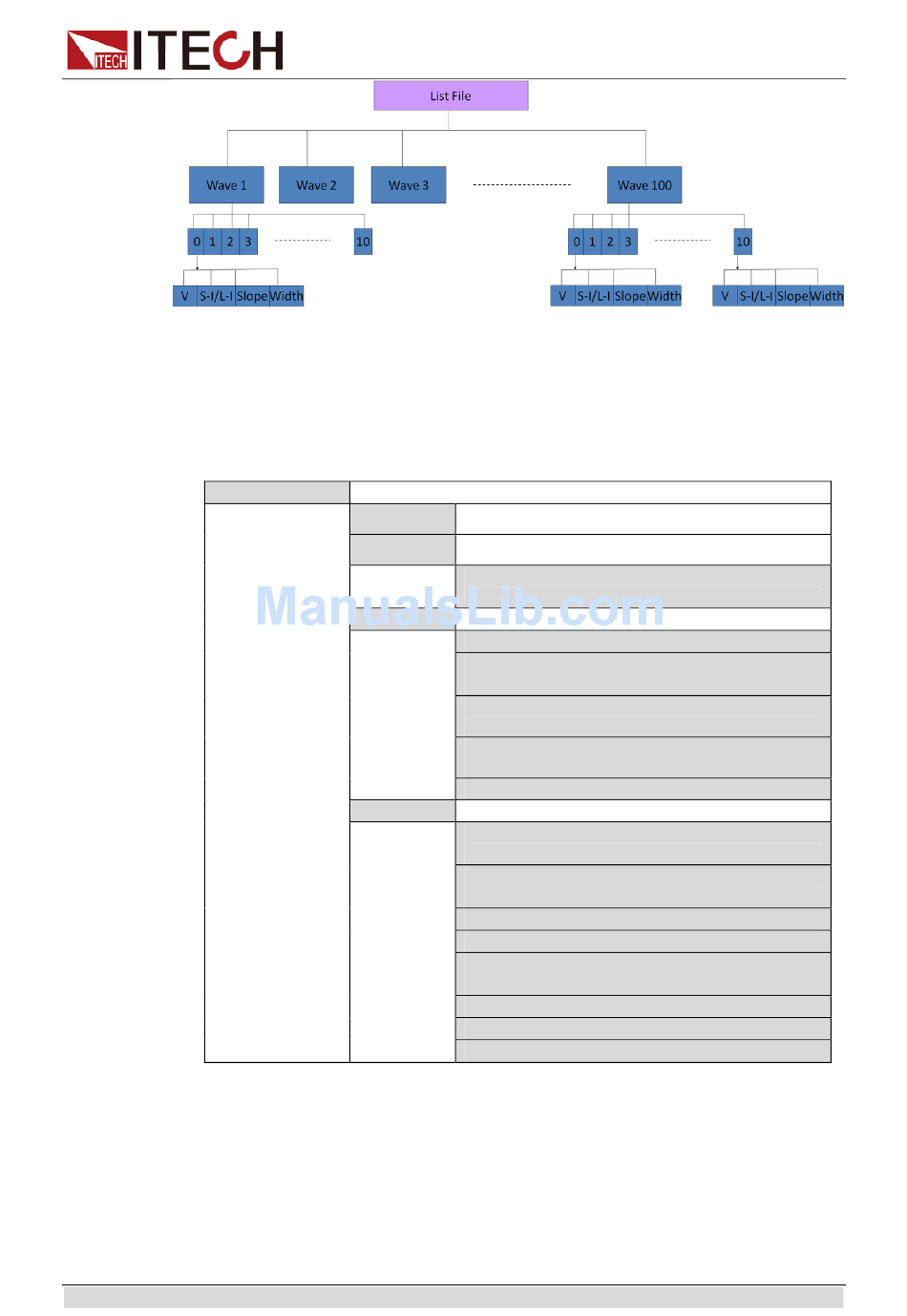

List file can select any one from 100 waves. Each List file can select 10 wave
files at most and combine them into a List file based on sequence.
Each wave file has ten steps. The List file can select the wave file and set the
count of repetitions to be executed.
List function menu is as follows.
Wave edit and List edit have no order of priority.
Editing Wave
List file can arrange and link several Wave files. The user can pre-edit several
Wave files and select edited wave file that meets requirements during usage. In
this series of power supply, at most 100 wave files can be edited.
Take an example for 3 steps, the steps of editing Wave file are as follows:
List List function menu
On/Off
Recall
EditFile
EditWave
Copyright© Itech Electronics Co., Ltd.
List function switch
List file recall
Recall List File: Need to recall list file
number.
List file edit
Repeat: count of List file repetitions
Wave Count: total count of waves contained
in this List file.
st
1 Wave Select: number of the first wave
selected
st
1 Wave Repeat: count of repetitions of the
first wave selected
Yes/No: save to the file or not
Wave file edit
Recall Wave: Need to recall Wave file
number.
Step Count: total count of steps contained in
the Wave file
Step1 Voltage: Voltage setting of step 1
Step1 Current: Current setting of step 1
Step1 LoadCurr: Load current setting of step
1
Step1 Width: Width setting of step 1
Step1 Slope: Slope setting of step 1
Save to Wave: save to the Wave file
