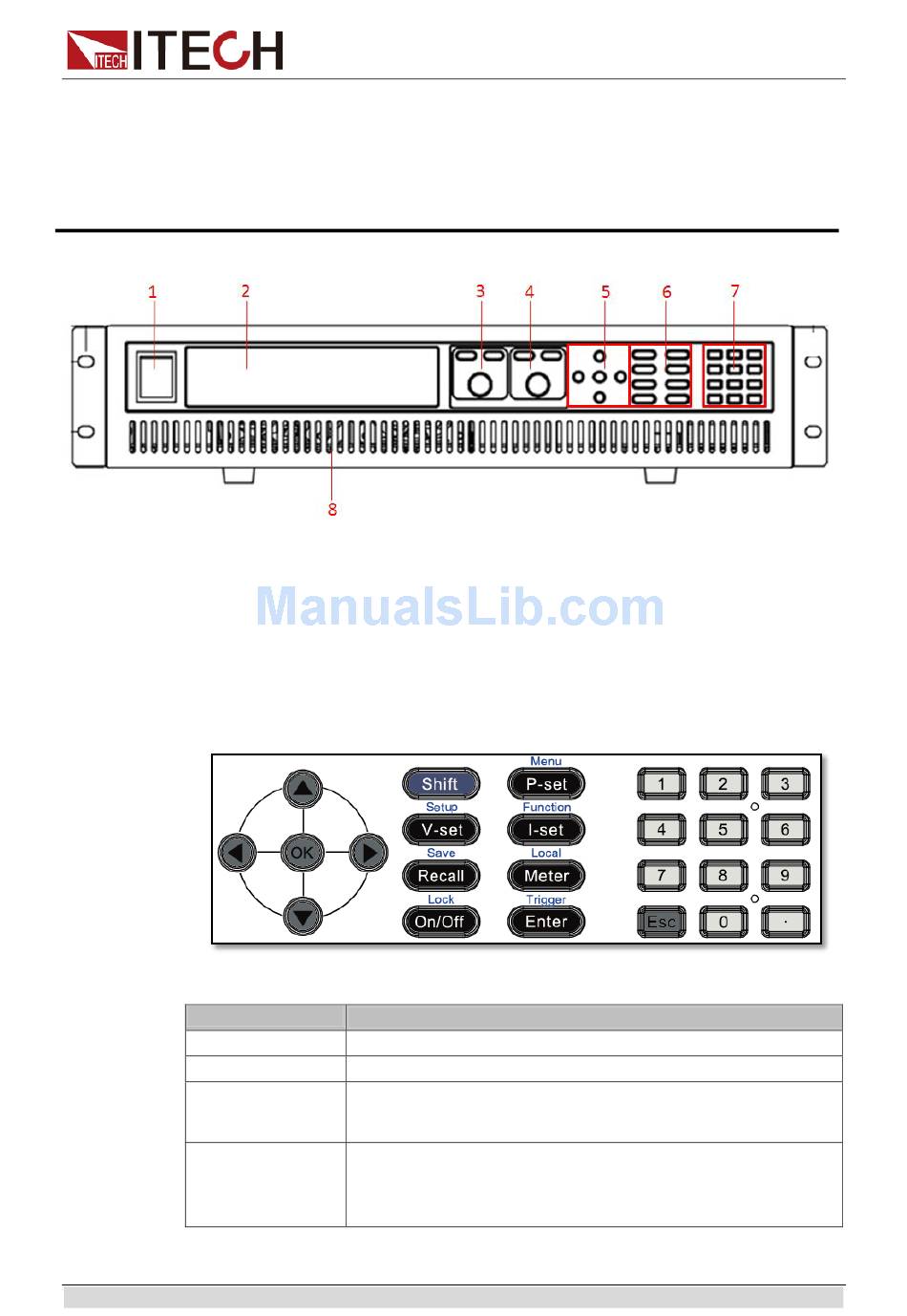

2.2 Front Panel Introduction

The 2U models of IT6500C Series power supply have same front panels. Other
models, have same panels as 2U Model. The front panel diagram and function
key diagram of 2U Model are as follows.
IT6512C/IT6513C/IT6514C/IT6515C/IT6516C/IT6517C/IT6522C/IT6523C/IT6524C/
IT6525C/IT6526C/IT6527C
1 Power Switch
2 VFD Screen
3 pulsating knob to control voltage, coarse
button,fine botton
4 pulsating knob to control current, coarse
button,fine botton

2.3 Keyboard Introduction

IT6500C series power supply different models are same the key function in
front board, schematic graph as follow.
Detailed description of keys
Key Name
0-9
Shift
P-set(Menu)
V-set(Setup)
5 directioin key and OK key
6 function keys and composite key
7 numeric key and Esc key
8 Vent hole
Description
Numeric button
Composite key
Power setting button, used to set the output power value/menu
function button which used to set the related parameters of
power supply.
Voltage setting button, used to set the output voltage of
power supply
function/upper and lower limits and load power/current set
value/slope/protection function/upper and lower limits)
