af=2HZ

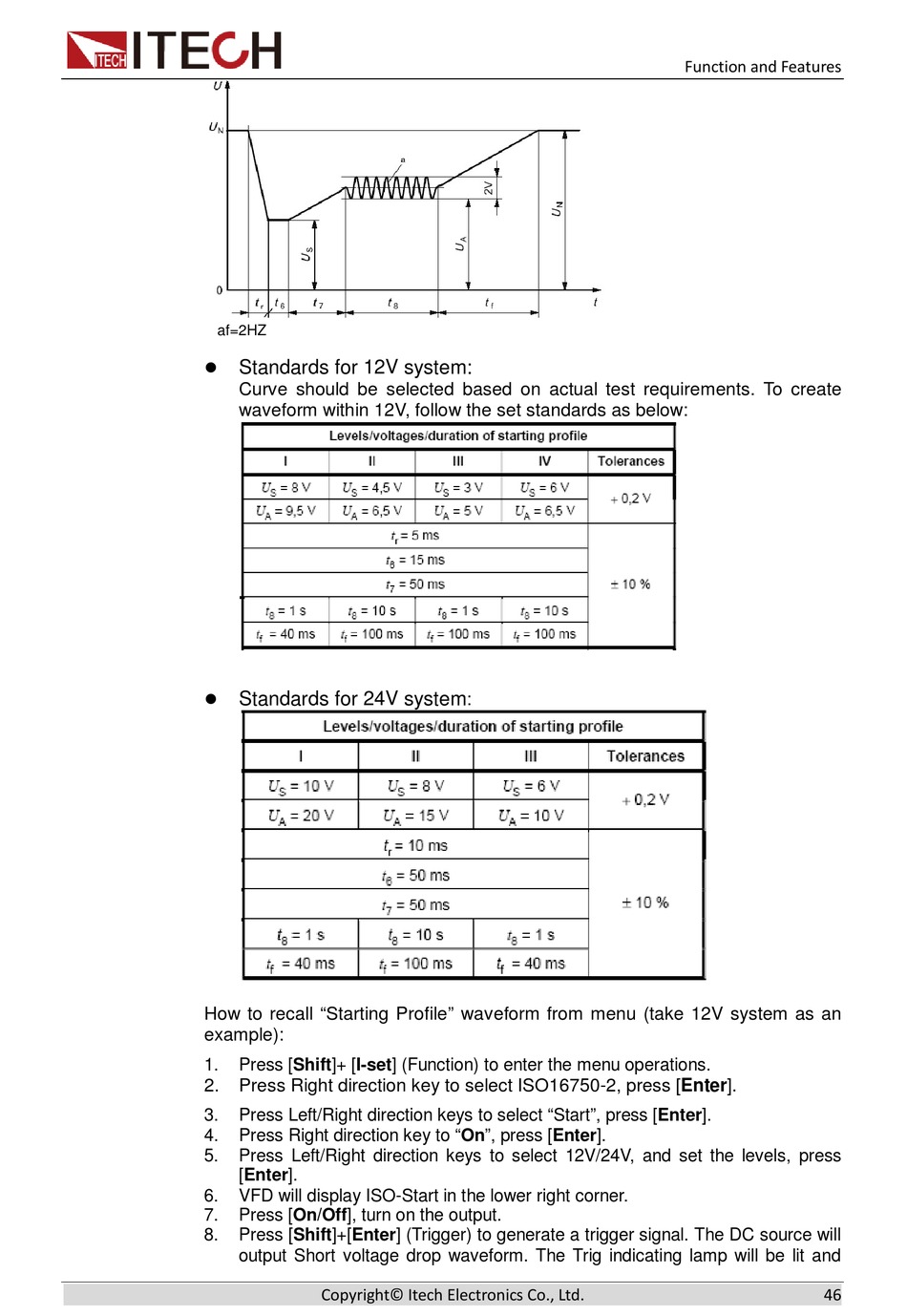

Standards for 12V system:
Curve should be selected based on actual test requirements. To create
waveform within 12V, follow the set standards as below:
Standards for 24V system
How to recall "Starting Profile" waveform from menu (take 12V system as an
example):
1.
Press [Shift]+ [I-set] (Function) to enter the menu operations.
2.
Press Right direction key to select ISO16750-2, press [Enter].
3.
Press Left/Right direction keys to select "Start", press [Enter].
4.
Press Right direction key to "On", press [Enter].
5.
Press Left/Right direction keys to select 12V/24V, and set the levels, press
[Enter].
6.
VFD will display ISO-Start in the lower right corner.
7.
Press [On/Off], turn on the output.
8.
Press [Shift]+[Enter] (Trigger) to generate a trigger signal. The DC source will
output Short voltage drop waveform. The Trig indicating lamp will be lit and
