2.

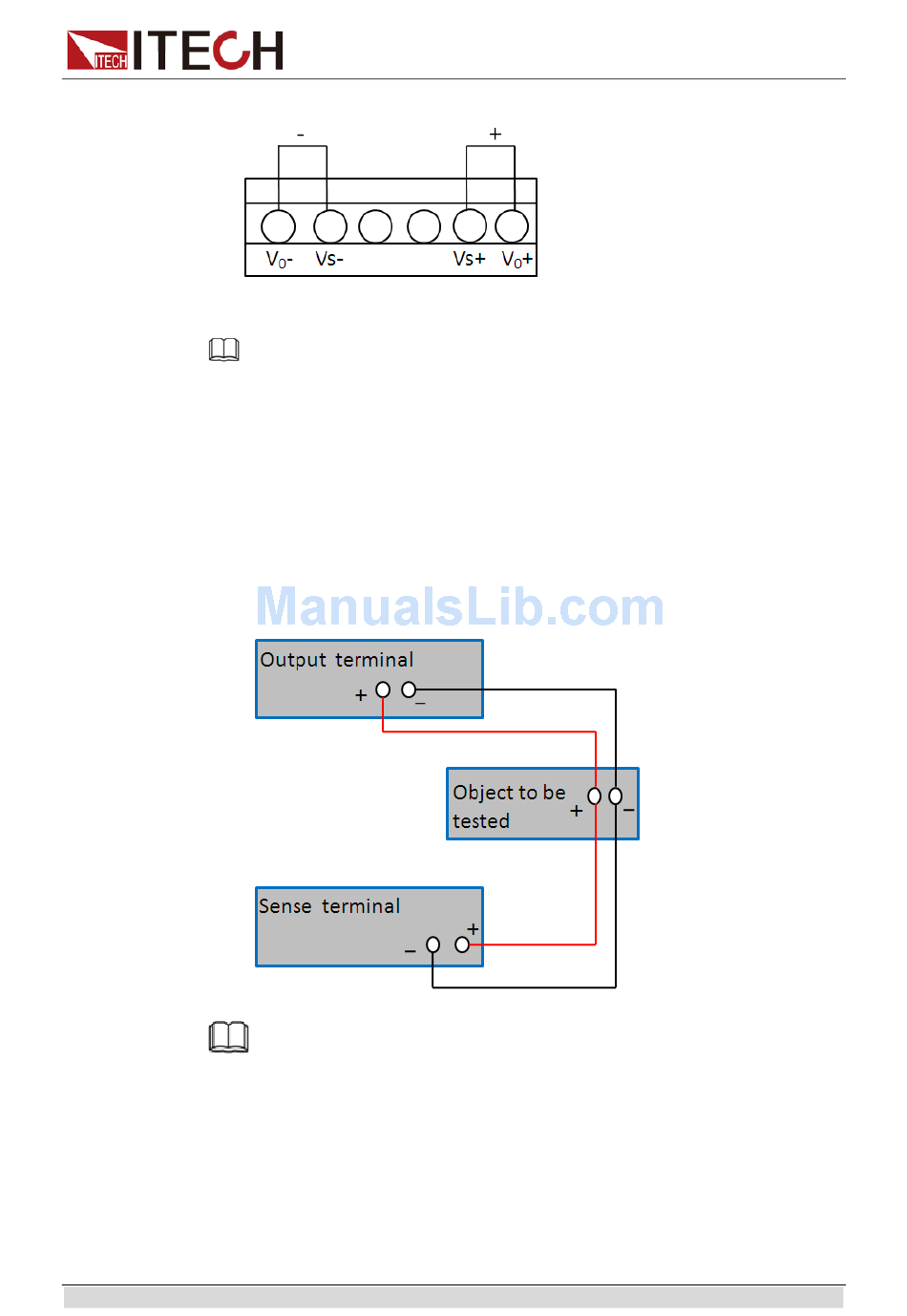

Use remote sense:
Disconnect the wires between Vo+ and Vs+, and Vo- and Vs- pins if you want
to use remote sense function. Then lead a wire from Vs+, Vs- pins and connect
to the DUT.
1.
2. Connect the VS+ to the DUT's positive (+) terminal, and connect the
3. Connect wires from Vo+, Vo- to the device under test.
Remote Sense Protection(>Sense-Protect)
The power supply output will be immediately switched to Off and the buzzer will
sound if the sense terminals are reversed. The VFD display screen will display
"Sense Reverse Prot". And please press [On/Off] to clean the protection.
on the back panel of the instrument or electric wire. When using local sense,
the remote sense terminal cannot be disconnected.
Connect the positive and negative terminals of the rear panel to the DUT.
Note
DO not disconnect the wires if remote sense is not used. Doing so will cause erratic behavior
and may damage the power supply under certain conditions
Disconnect the wires/short clips between Vo+ and Vs+, Vo- and Vs-.
VS- to the DUT's negative (-) terminal.
NOTE
In order to ensure the stability of the system, using armored twisted pair cable between
the remote sense terminal of IT6500C and DUT.
Please note that the positive and negative polarity when wiring, otherwise it will damage
the instrument!
Copyright© Itech Electronics Co., Ltd.
Function and Features
illustrated below.
