[Enter] for confirmation.
5. Press the [Esc] key to exit.
6. DIN40839 appears at the right bottom of the panel.
7. Press [On/Off] to turn on power supply output.
8. Press [Shift]+[Enter] (Trigger) for trigger. The power supply will output
based on set sequence. Trig mark is lit.


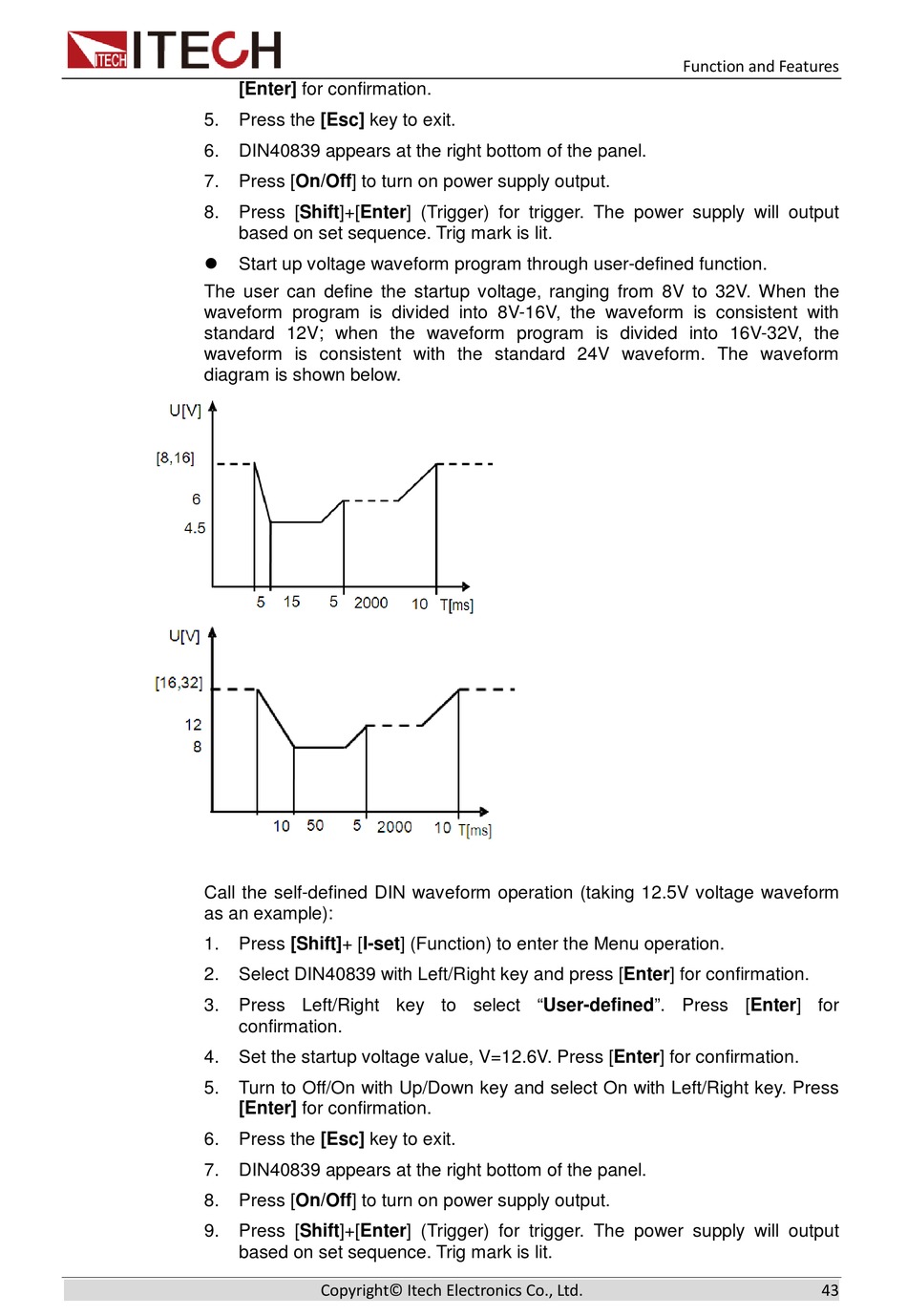

Start up voltage waveform program through user-defined function.
The user can define the startup voltage, ranging from 8V to 32V. When the
waveform program is divided into 8V-16V, the waveform is consistent with
standard 12V; when the waveform program is divided into 16V-32V, the
waveform is consistent with the standard 24V waveform. The waveform
diagram is shown below.
Call the self-defined DIN waveform operation (taking 12.5V voltage waveform
as an example):
1. Press [Shift]+ [I-set] (Function) to enter the Menu operation.
2. Select DIN40839 with Left/Right key and press [Enter] for confirmation.
3. Press Left/Right key to select "User-defined". Press [Enter] for
confirmation.
4. Set the startup voltage value, V=12.6V. Press [Enter] for confirmation.
5. Turn to Off/On with Up/Down key and select On with Left/Right key. Press
[Enter] for confirmation.
6. Press the [Esc] key to exit.
7. DIN40839 appears at the right bottom of the panel.
8. Press [On/Off] to turn on power supply output.
9. Press [Shift]+[Enter] (Trigger) for trigger. The power supply will output
based on set sequence. Trig mark is lit.
