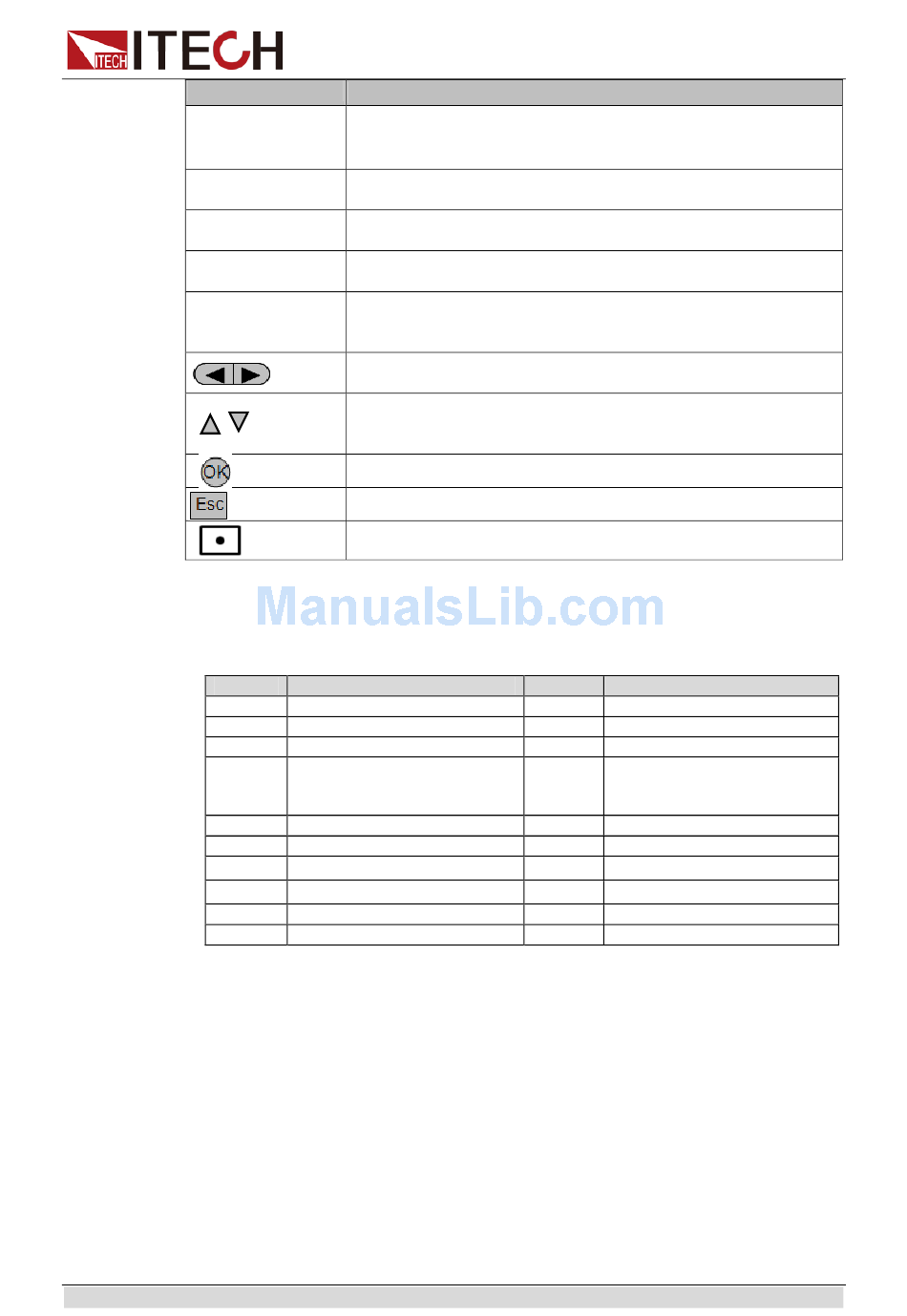

2.4 VFD Indicator Lamps Description

IT6500C series power supply VFD indicator lamps description as follows:
Flag
OFF
CV
CC
*
Meter
Shift
Rear
SRQ
OFF
CW
Description
Current setting button, used to set the output current value of
power supply (set power supply List function/built-in
waveform and PV curve function)
Callback button, used to recall a saved setting parameter/save
button, used to save a setting parameter.
Meter button, used to switch the display between actual value
and setting value/switch to the local mode.
Confirm button, used to confirm the setting numbers or
Trigger)
functions/trigger button
Ouput on/off button, used to control the output status of power
Lock)
supply/kelock function button, used to lock the front panel
buttons
Left and right direction button, used to adjust the location of the
cursor
Up and down direction button, used to select the items of the
menu or increase(decrease) the output voltage and current
value
Confirm button
Return key
Dot
Function Description
Power supply in off mode
Power supply in CV mode
Power supply in CC mode
Open the keylock function
"Meter" button in on mode
using composite function
Analog function begin to work
Serial request query
Power supply in off mode
Power supply in CP mode
Copyright© Itech Electronics Co., Ltd.
Flag Function Description
Timer
none
Sense none
Ext none
Addr
When received
successfully, the flag will
display 3 seconds.
Rmt
Remote control mode
Error
Error occur
Prot Protections for OV or OT
waiting for triggering signal
Trig
Timer
none
-
-
Quick Start
command
13
