This chapter introduces power-on check steps of IT6500C series to ensure
normal start-up and usage under initialization status. This part also introduces
the front panel, the rear panel, key functions and VFD display function of the
power supply, make sure that you can quickly know the appearance, instruction
and the key function before you operate the power supply. Help you make
better use of this series of power supply.

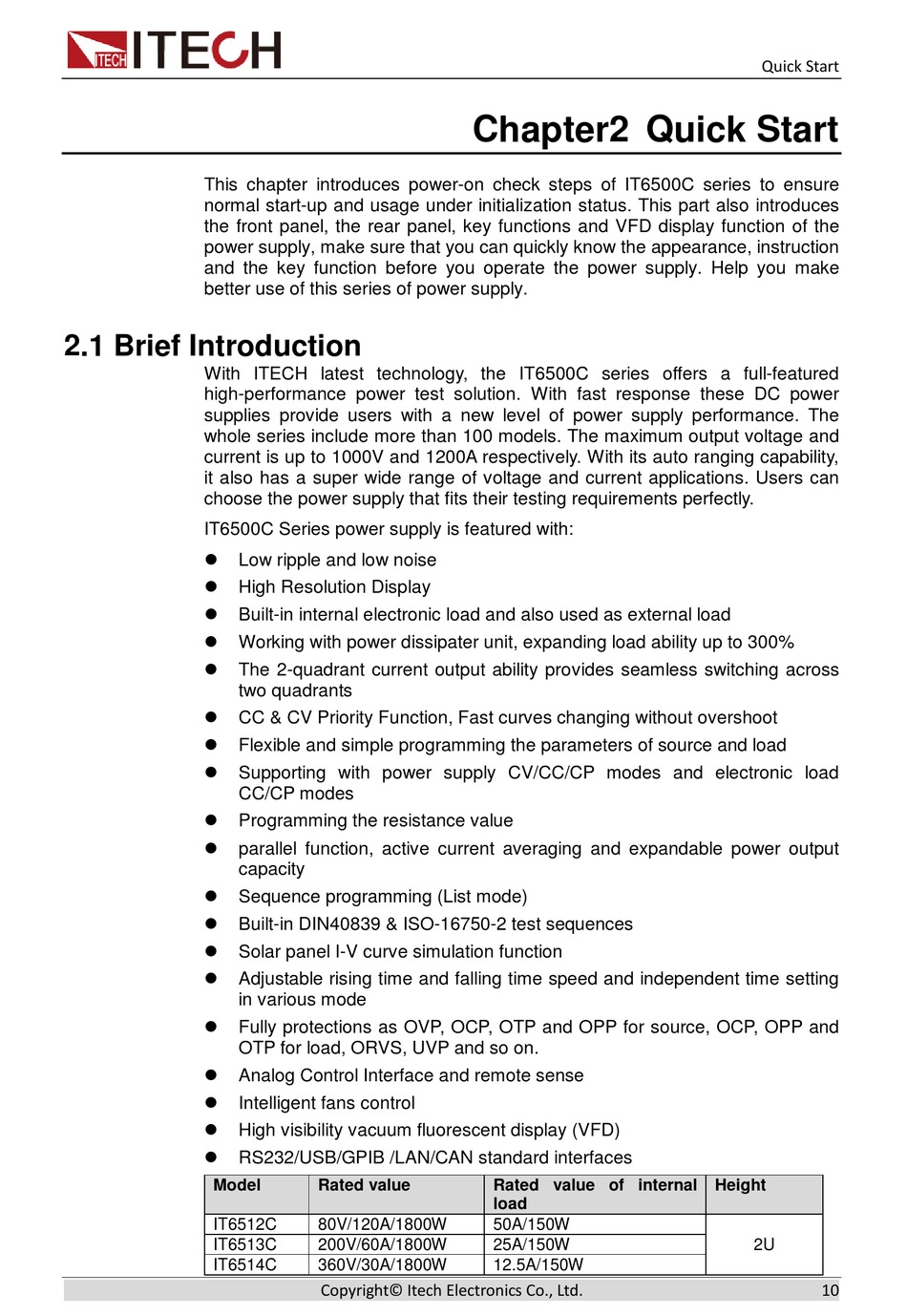

2.1 Brief Introduction

With ITECH latest technology, the IT6500C series offers a full-featured
high-performance power test solution. With fast response these DC power
supplies provide users with a new level of power supply performance. The
whole series include more than 100 models. The maximum output voltage and
current is up to 1000V and 1200A respectively. With its auto ranging capability,
it also has a super wide range of voltage and current applications. Users can
choose the power supply that fits their testing requirements perfectly.
IT6500C Series power supply is featured with:



















Model
IT6512C
IT6513C
IT6514C
Low ripple and low noise
High Resolution Display
Built-in internal electronic load and also used as external load
Working with power dissipater unit, expanding load ability up to 300%
The 2-quadrant current output ability provides seamless switching across
two quadrants
CC & CV Priority Function, Fast curves changing without overshoot
Flexible and simple programming the parameters of source and load
Supporting with power supply CV/CC/CP modes and electronic load
CC/CP modes
Programming the resistance value
parallel function, active current averaging and expandable power output
capacity
Sequence programming (List mode)
Built-in DIN40839 & ISO-16750-2 test sequences
Solar panel I-V curve simulation function
Adjustable rising time and falling time speed and independent time setting
in various mode
Fully protections as OVP, OCP, OTP and OPP for source, OCP, OPP and
OTP for load, ORVS, UVP and so on.
Analog Control Interface and remote sense
Intelligent fans control
High visibility vacuum fluorescent display (VFD)
RS232/USB/GPIB /LAN/CAN standard interfaces
Rated value
80V/120A/1800W
200V/60A/1800W
360V/30A/1800W
Copyright© Itech Electronics Co., Ltd.

Chapter2 Quick Start

Rated value of internal
load
50A/150W
25A/150W
12.5A/150W
Quick Start
Height
2U
